3C-71 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

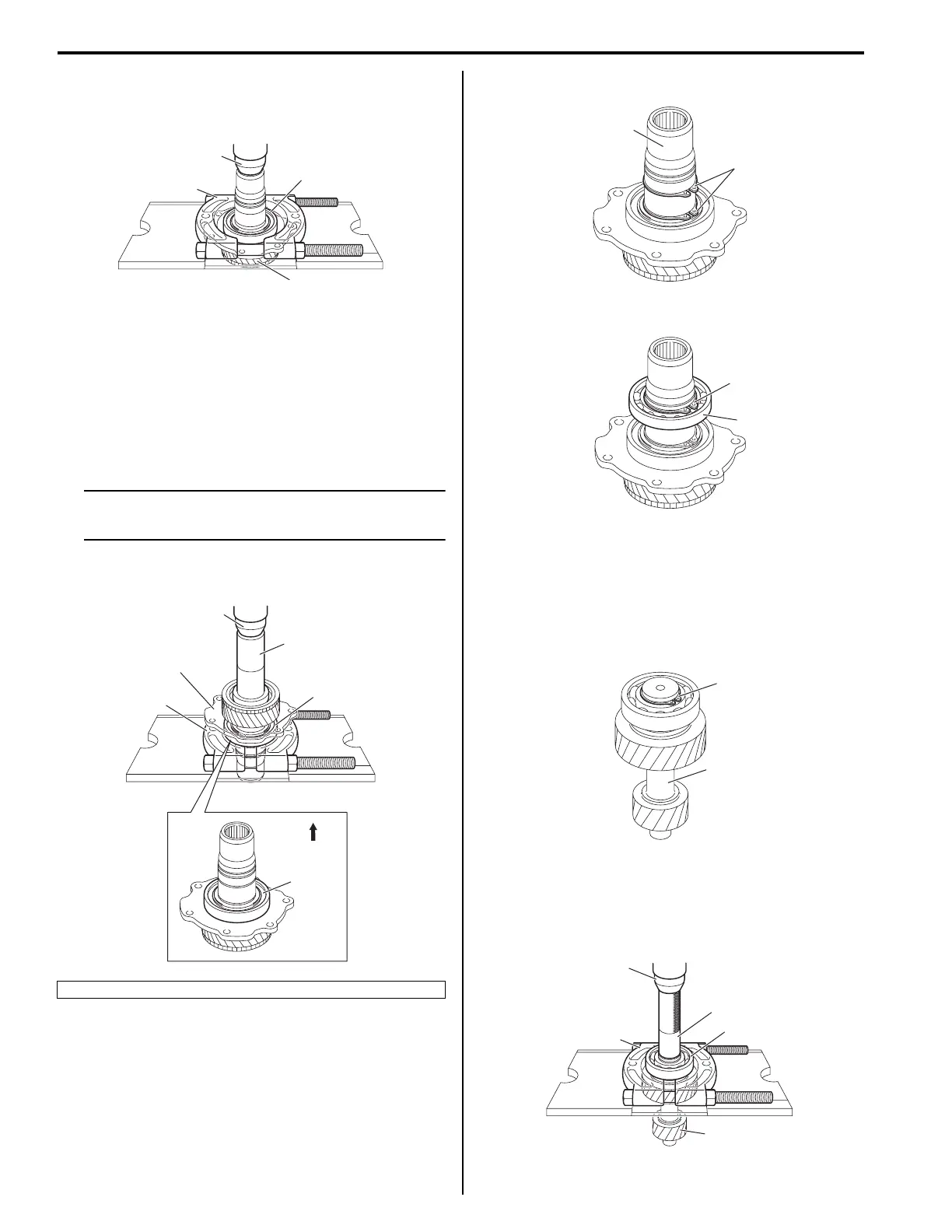

3) Remove bearing (1) from input gear (2) using
bearing puller (3) and press (4), and then remove
input gear plate.
Reassembly
1) Clean all components thoroughly, inspect them for
any abnormality and replace with new ones as
necessary.
2) Install input gear plate (1), and then press-fit bearing
(2) using special tool, bearing puller (3) and press
(4).
NOTE
Assemble bearing so that seal side (5) may
come to the front side.
Special tool
(A): 09913–85210
3) Install snap rings (1) to input gear (2).
4) Install bearing (1) and snap ring (2).
Counter Gear Assembly Disassembly and
Reassembly
S5JB0E3316013
Disassembly
1) Remove snap ring (1) from counter gear (2).
2) Remove bearing (1) from counter gear (2) using
special tool, bearing puller (3) and press (4).
Special tool
(A): 09913–80113
[A]: Front side
1
2
3
4
I5JB0A331064-01
(A)
2
3
1
4
5
[A]
I5JB0A331065-02
1
2
I5JB0A331066-01
2
1
I5JB0A331067-01
1
2
I5JB0A331068-01
2
1
(A)
3
4
I5JB0A331069-02
