2B-20 Front Suspension:

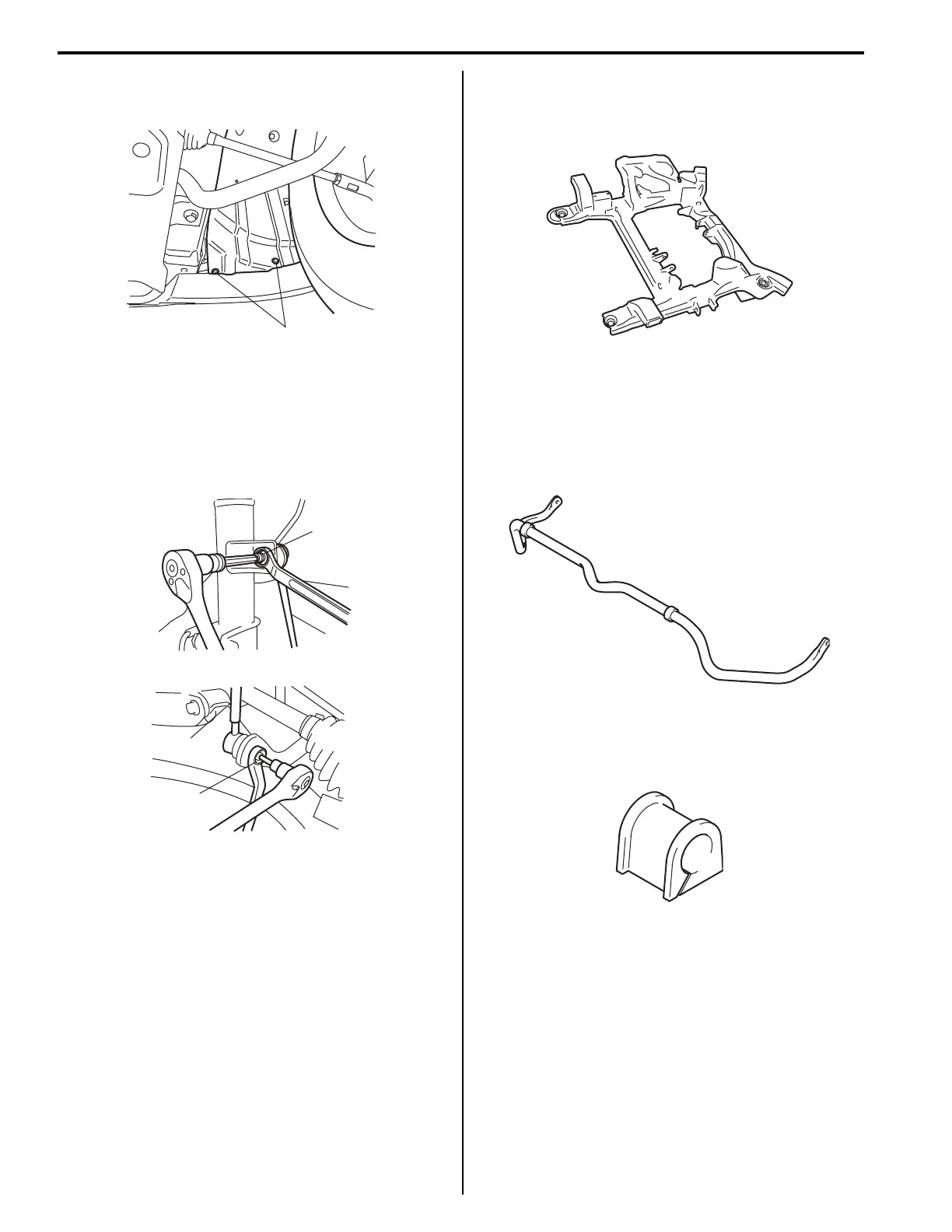

14) Connect front fender lining clip (1) (if equipped with
head light auto leveling system).
15) Install stabilizer joints (1), and tighten nuts to
specified torque. When tightening, hold stud with
hexagon wrench.
Tightening torque
Stabilizer joint nut (a): 60 N·m (6.0 kgf-m, 43.5
lb-ft)
16) Install right side and left side front drive shaft
assembly referring to “Front Drive Shaft Assembly
Removal and Installation: Front in Section 3A in
related manual”.
17) Install suspension control arm referring to
“Suspension Control Arm Removal and Installation:
”.
18) Install engine under cover.
19) Install wheels (right & left) and lower hoist.
20) After installation, be sure to fill specified power
steering fluid and bleed air referring to “P/S System
Air Bleeding Procedure: in Section 6C in related
manual”.
21) Adjust headlight auto leveling system, refer to
“Initialization of Auto Leveling Headlight System: in
Section 9B in related manual”.
Front Suspension Frame Check
S5JB0E2206017
Inspect for cracks, deformation or damage.
If defective, replace.
Front Stabilizer Bar, Bushing and/or Joint
Check
S5JB0E2206018
Stabilizer Bar
Inspect for damage or deformation.
If defective, replace.
Stabilizer Bushing
Inspect for damage, wear or deterioration.
If defective, replace.
1
I5JB0A220042-01
(a)
1
1
(a)
I5JB0A220055-01
I5JB0A220056-01
I5JB0D220001-01
I5JB0D220002-01
