Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-42
DTC C1238: Center Differential Lock Switch Circuit Short
S5JB0E3314022

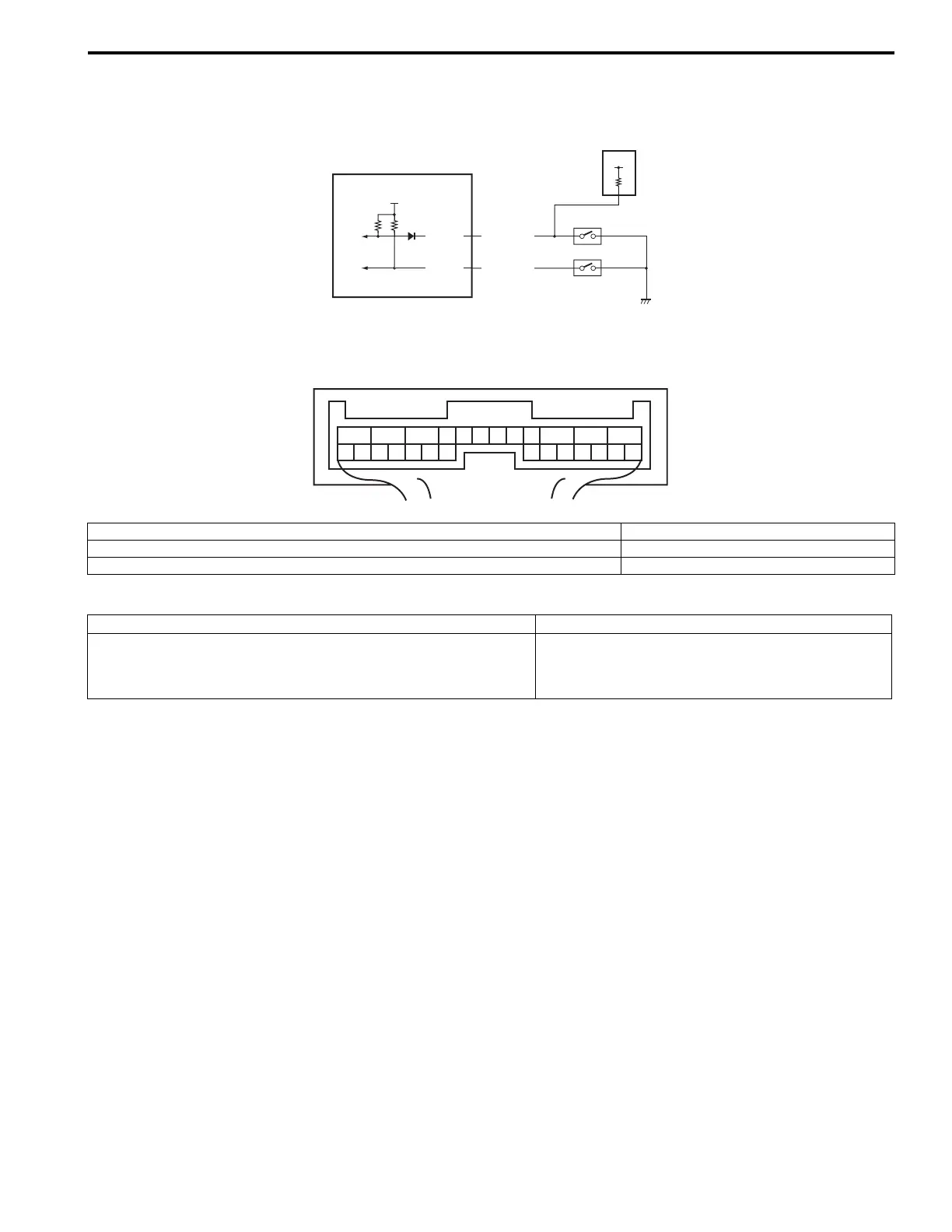

Wiring Diagram
DTC Detecting Condition and Trouble Area
IG
E91-13
E91-14
RED/GRN
PNK/WHT
2
3
4
12V
1
1
2
3
45
6
7
891011
12
13
14
1516
1718
19
20
21
22
23
24
25
26
[A]
I5JB0A332018-01
[A]: 4WD control module connector “E91” (viewed from harness side) 3. 4L/N switch
1. 4WD control module 4. Center differential lock switch
2. TCM
DTC detecting condition Trouble area
Though transfer shift actuator motor position switch is “4L-lock”
position, the OFF signal is not input from the center differential
lock switch.
• Center differential lock switch
• Center differential lock switch circuit
• 4WD control module
