Brake Control System and Diagnosis: 4A-2

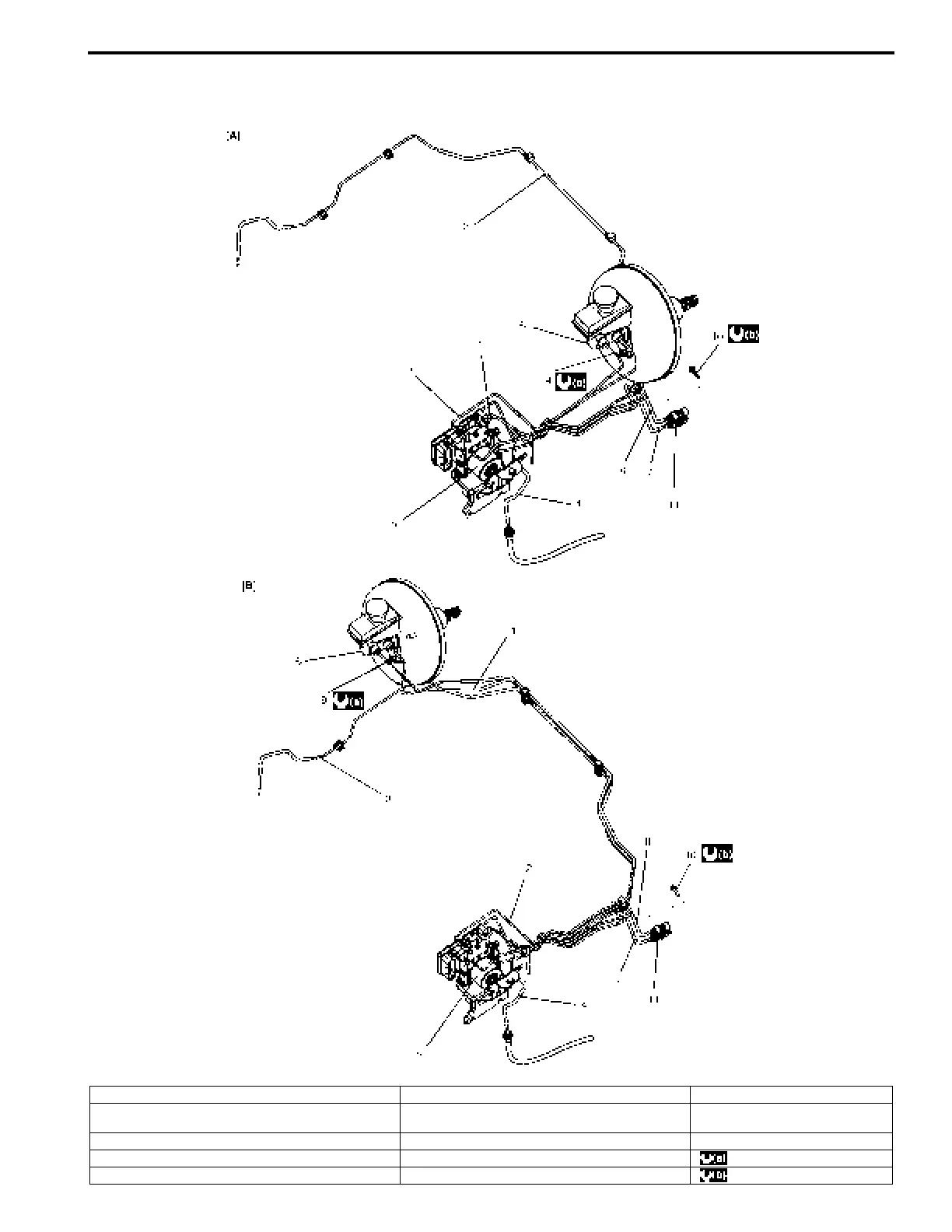

Front Brake Hose / Pipe Construction
S5JB0E4101002
I5JB0A410002-03
[A]: For LH steering vehicle 4. From ABS hydraulic unit to left front brake 9. Master cylinder fixing nut
[B]: For RH steering vehicle 5. ABS (ESP®) hydraulic unit / control module
assembly
10. Brake joint bolt
1. From master cylinder primary to ABS hydraulic unit 6. Master cylinder 11. 4-way joint
2. From master cylinder secondary to ABS hydraulic unit 7. From ABS (ESP®) hydraulic unit to left rear brake : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)
3. From ABS hydraulic unit to right front brake 8. From ABS (ESP®) hydraulic unit to right rear brake : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
