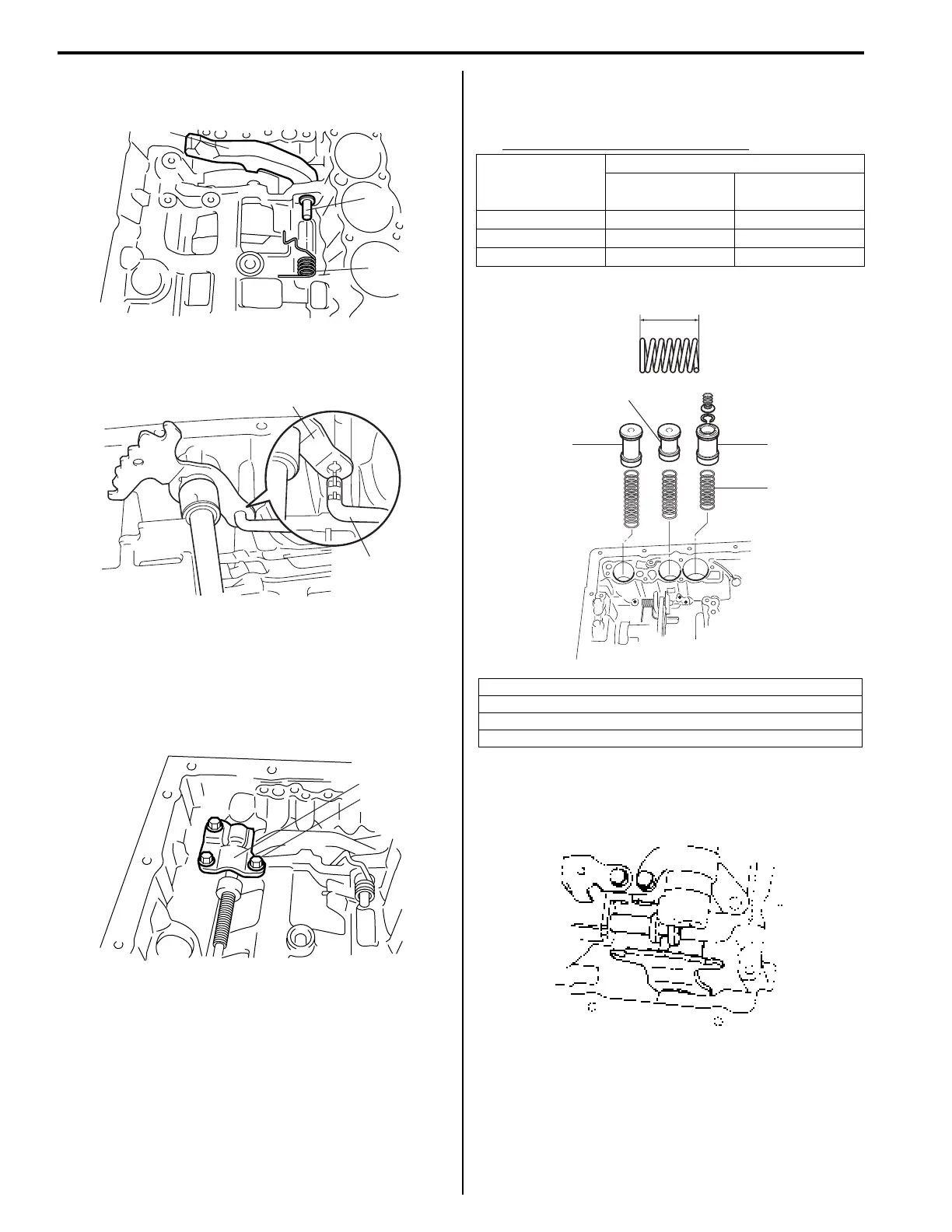

5A-41 Automatic Transmission/Transaxle:
35) Install parking lock pawl (2), parking pawl pin (1) and
parking pawl spring (3).
36) Connect parking lock rod (2) to manual shift lever (1)
as shown in the figure.
37) Install parking lock pawl bracket (1).
Tighten parking pawl bracket bolts (2) to specified
torque.
Tightening torque
Parking pawl bracket bolt (a): 7.4 N·m (0.74 kgf-
m, 5.5 lb-ft)
38) Apply A/T fluid to new O-ring and spring and install
them to accumulator piston and install accumulator
piston to transmission case.
Accumulator spring specification
39) After confirming that accumulator piston is pushed all
the way down, match pin of manual shift lever with
groove in manual valve.
2
1
3
I4JA01512269-01
1
2
I4JA01512270-01
1
2, (a)
I4JA01512271-01
Accumulator
piston
Accumulator spring
Spring free
length “a”
Color
Forward clutch 75.03 White + Blue
Direct clutch 57.74 White + Purple
Second brake 56.16 Purple
1. Forward clutch accumulator piston
2. Direct clutch accumulator piston
3. Second brake accumulator piston
4. Accumulator spring
4
31
2
“a”
I5JB0A510140-02
IYSQ01510269-01
