4E-7 ABS:
Component Location

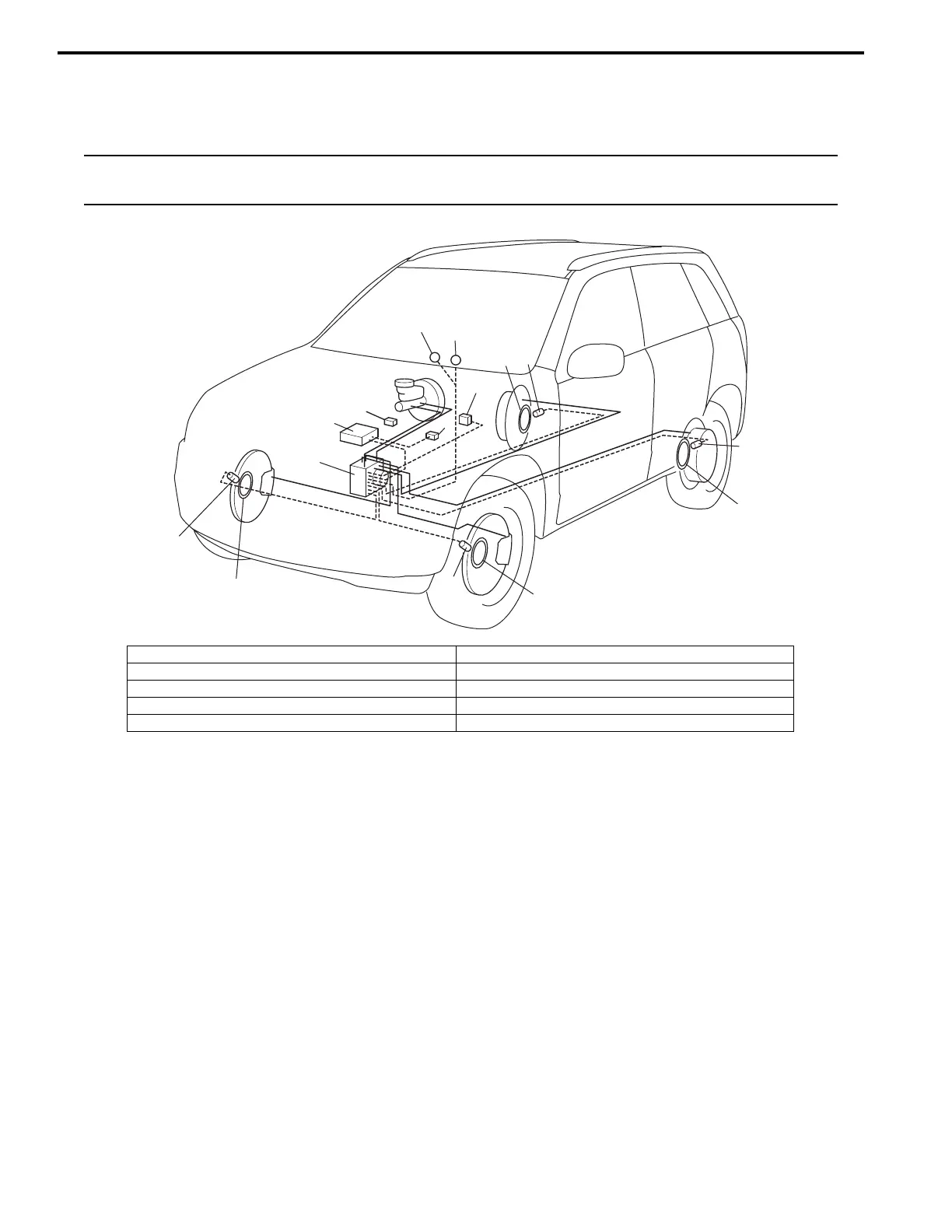

ABS Components Location
S5JB0E4503001
NOTE
As for the difference of RH steering vehicle and LH steering vehicle, the location of the combination
meter, data link connector, stop lamp switch and the brake master cylinder assembly only changes.
6
2
1
7
4
5
6
2
3
2
6
6
2
8
9
I6JB01450004-01
1. ABS (ESP®) hydraulic unit / control module assembly 6. Wheel encoder (included in wheel hub assembly)
2. Wheel speed sensors 7. Data link connector
3. Stop lamp switch 8. ECM
4. ABS warning lamp 9. Yaw rate / G sensor assembly (with ESP®)
5. EBD warning lamp (Brake warning lamp)
