ABS: 4E-34

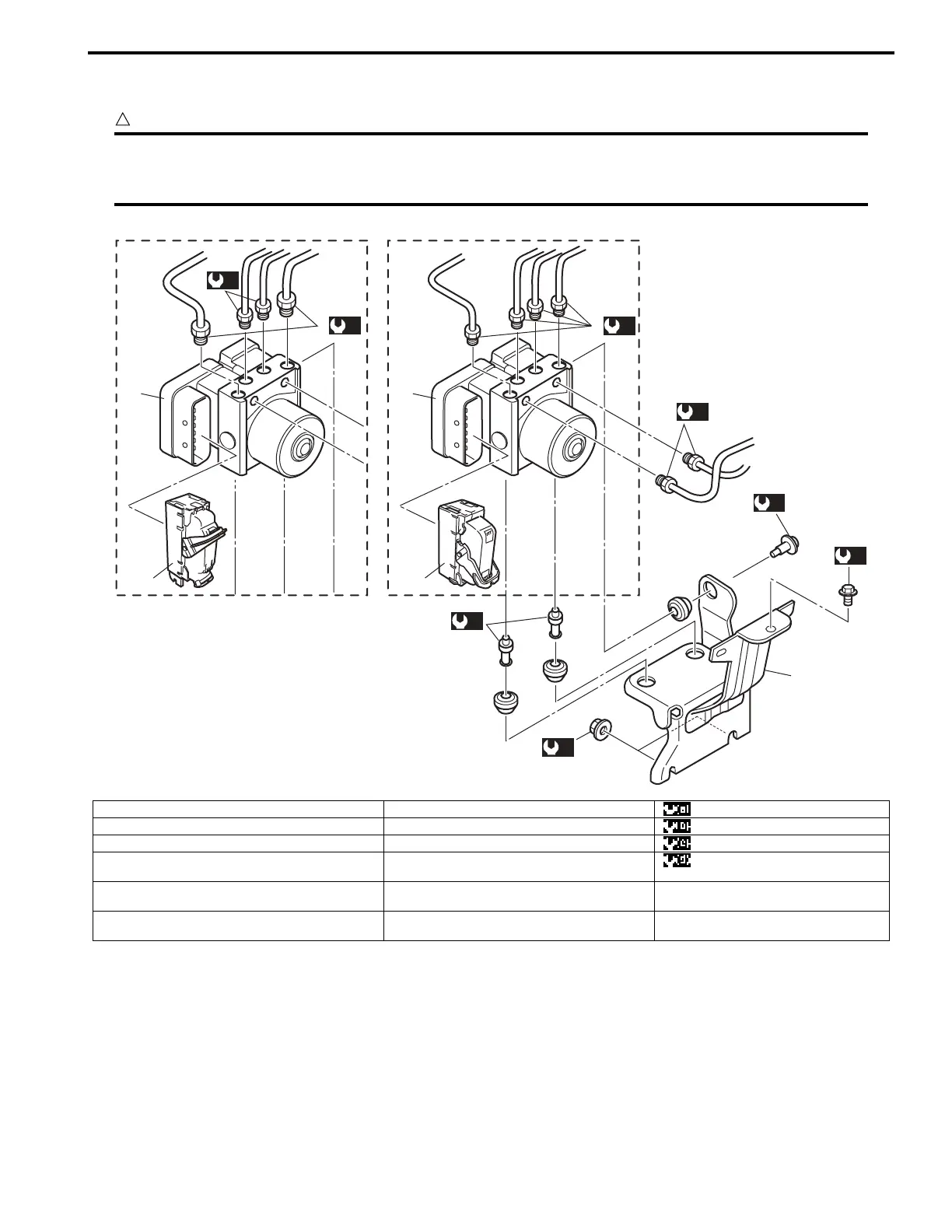

ABS (ESP®) Hydraulic Unit / Control Module Assembly Removal and Installation
S5JB0E4506004
CAUTION
!
Never disassemble ABS (ESP®) hydraulic unit / control module assembly, loosen blind plug or remove
motor. Performing any of these prohibited services will affect original performance of ABS (ESP®)
hydraulic unit / control module assembly.
5
2
(c)
(d)
3
(a)
(c)
(d)
(a)
4
1
(b)
(a)
[A] [ B]
6
7
6
6
8
8
9
10
I5JB0B450006-01
[A]: With ESP® 5. ABS control module connector : 16 N⋅m (1.6 kgf-m, 11.5 lb-ft)
[B]: Without ESP® 6. Brake pipe flare nut for M10 : 19 N⋅m (1.9 kgf-m, 14.0 lb-ft)
1. ABS hydraulic unit / control module assembly 7. Brake pipe flare nut for M12 : 9 N⋅m (0.9 kgf-m, 6.5 lb-ft)
2. ESP® hydraulic unit / control module assembly 8. ABS (ESP®) hydraulic unit / control
moduleassembly bolt
: 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
3. Bracket 9. ABS (ESP®) hydraulic unit / control
moduleassembly bracket bolt
4. ESP® control module connector 10. ABS (ESP®) hydraulic unit / control
moduleassembly bracket nut
To Next Page
