Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-72
Reassembly
1) Clean all components thoroughly, inspect them for
any abnormality and replace with new ones as
necessary.

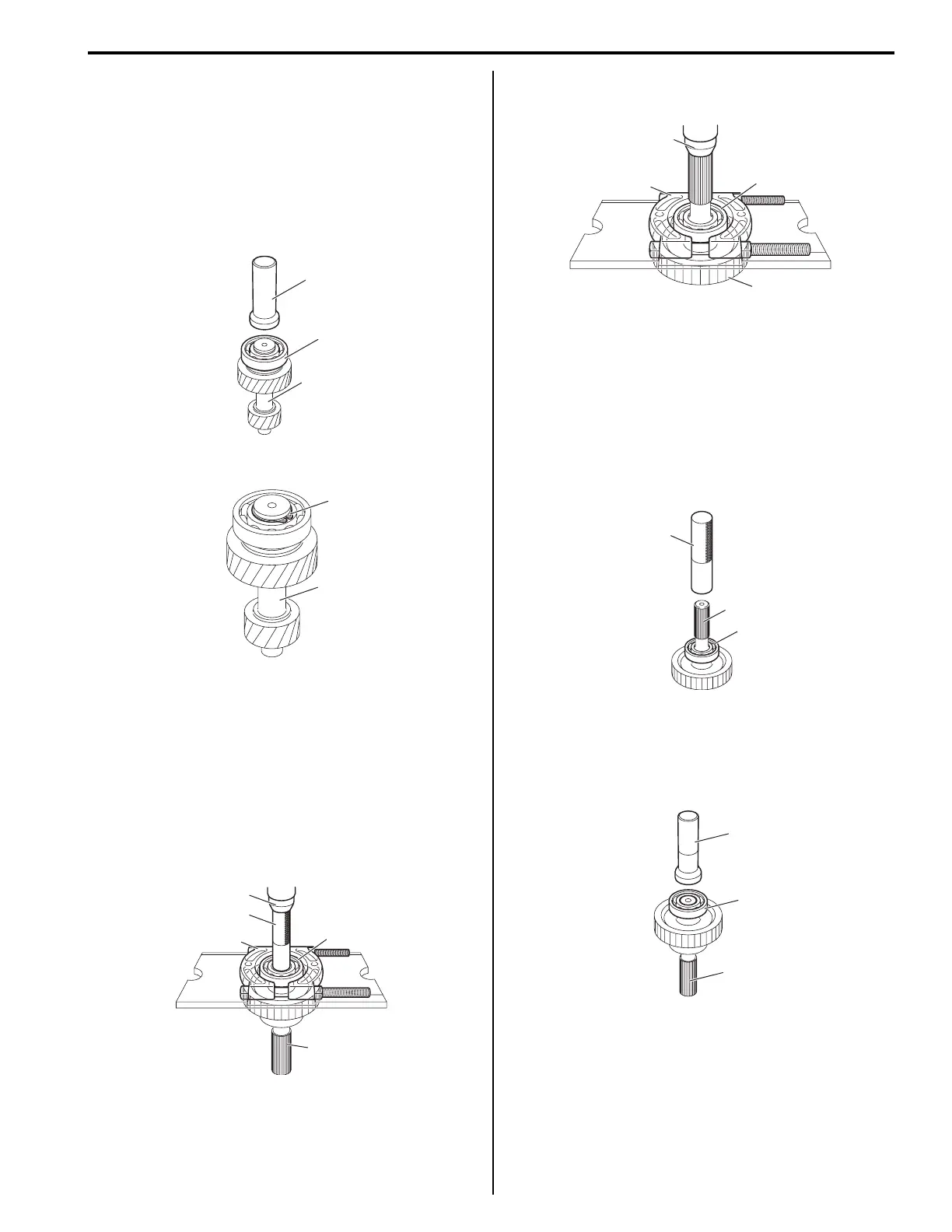

2) Press-fit bearing (1) to counter gear using special
tool and press.
Special tool
(A): 09913–70123
3) Install snap ring (1) to counter gear (2).
Front Output Shaft Assembly Disassembly and
Reassembly
S5JB0E3316014
Disassembly
1) Remove bearing (1) from front output shaft (2) using
special tool, bearing puller (3) and press (4).
Special tool
(A): 09925–98221
2) Remove bearing (1) from front output shaft (2) using
bearing puller (3) and press (4).
Reassembly
1) Clean all components thoroughly, inspect them for
any abnormality and replace with new ones as
necessary.
2) Press-fit bearing (1) to front output shaft using
special tool and press.
Special tool
(A): 09913–84510
3) Press-fit bearing (1) to front output shaft using
special tool and press.
Special tool
(A): 09913–76010
(A)
1
2
I5JB0A331070-01
1
2
I5JB0A331068-01
1
2
(A)
4
3
I5JB0A331071-01
1
2
3
4
I5JB0A331072-01
1
2
(A)
I5JB0A331073-01
(A)
1
2
I5JB0A331074-01
