Instrumentation / Driver Info. / Horn: 9C-8
Repair Instructions

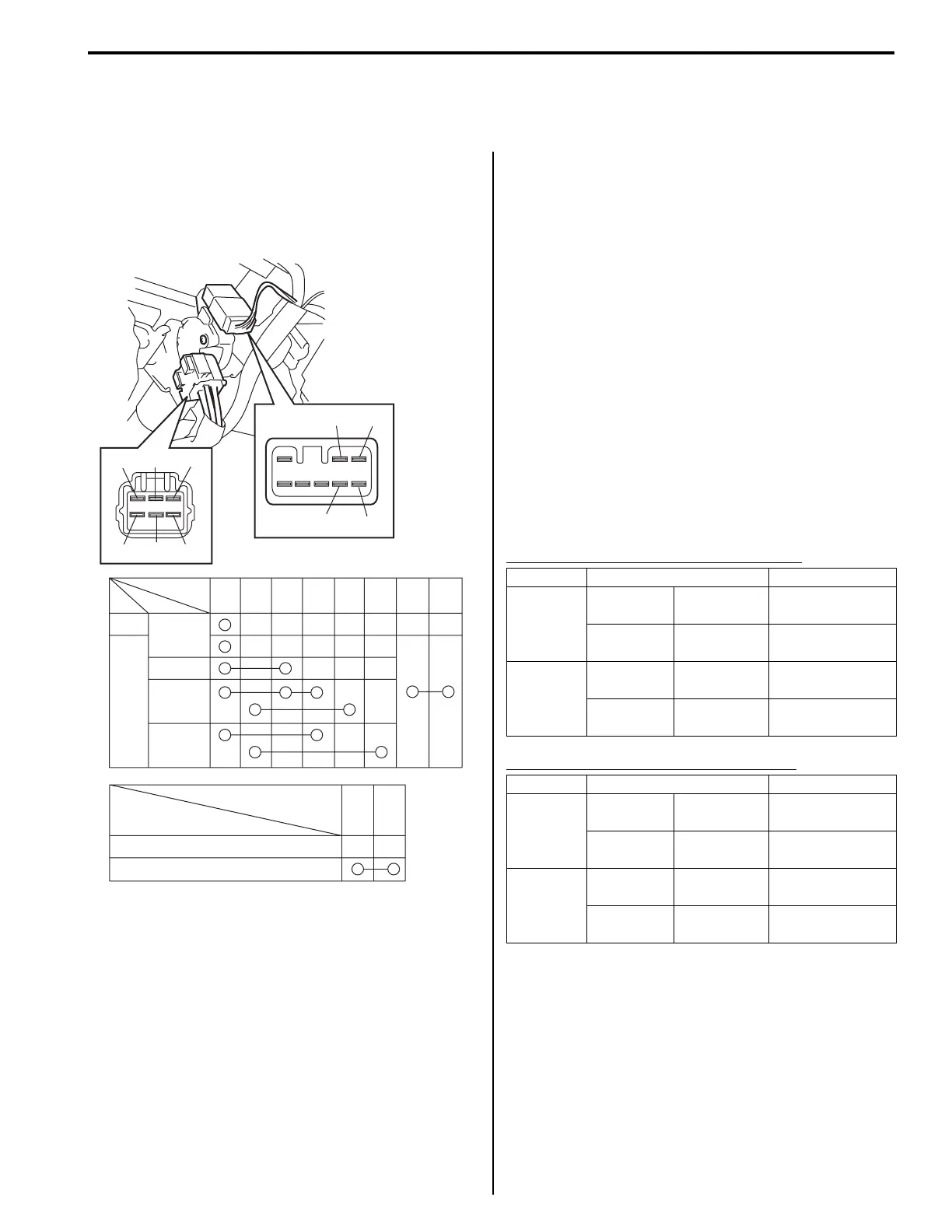

Ignition Switch Inspection
S5JB0E9306002
• Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Fuel Level Sensor Removal and Installation
S5JB0E9306004
Main Fuel Level Sensor
For removal and installation, refer to “Fuel Pump
Assembly Removal and Installation: in Section 1G in
related manual”.
Sub Fuel Level Sensor
For removal and installation, refer to “Sub Fuel Level
Sensor Removal and Installation: in Section 1G in
related manual”.
Fuel Level Sensor Inspection
S5JB0E9306005
• Check that resistance between terminals “a” and “b”
of fuel level sensor changes with change of float
position.
• Check resistance between terminals “a” and “b” at
each float position in the following.
If the measured value is out of specification, replace
fuel pump and/or sub fuel level sensor.
Main fuel level sensor [A] specifications
Sub fuel level sensor [B] specifications
Position
Terminal
LOCK
ACC
ON
START
OUT
IN
K2K1STIG2IG1ACCB1 B2
Ignition knob switch
(with keyless start system only)
ACC
IG1
IG2
ST
B2
B1
K2
K1
P2
P1
Terminal
OFF (ignition knob switch released)
ON (ignition knob switch pushsed)
P1 P2
Key
I5RS0D930003-02
Float position Resistance (Ω)
3 door
model
Full Upper
“C”
193.7 mm
(7.626 in.)
19.0 – 21.0
Full Lower
“D”
42.2 mm
(1.661 in.)
111.9 – 115.3
5 door
model
Full Upper
“C”
196.8 mm
(7.748 in.)
19.0 – 21.0
Full Lower
“D”
34.9 mm
(1.374 in.)
129.0 – 132.4
Float position Resistance (Ω)
3 door
model
Full Upper
“C”
48.1 mm
(1.894 in.)
19.0 – 21.0
Full Lower
“D”
252.8 mm
(9.953 in.)
164.7 – 168.1
5 door
model
Full Upper
“C”
64.1 mm
(2.524 in.)
19.0 – 21.0
Full Lower
“D”
244.8 mm
(9.638 in.)
147.6 – 151.0
