Wipers / Washers: 9D-1
Wipers / Washers
Repair Instructions

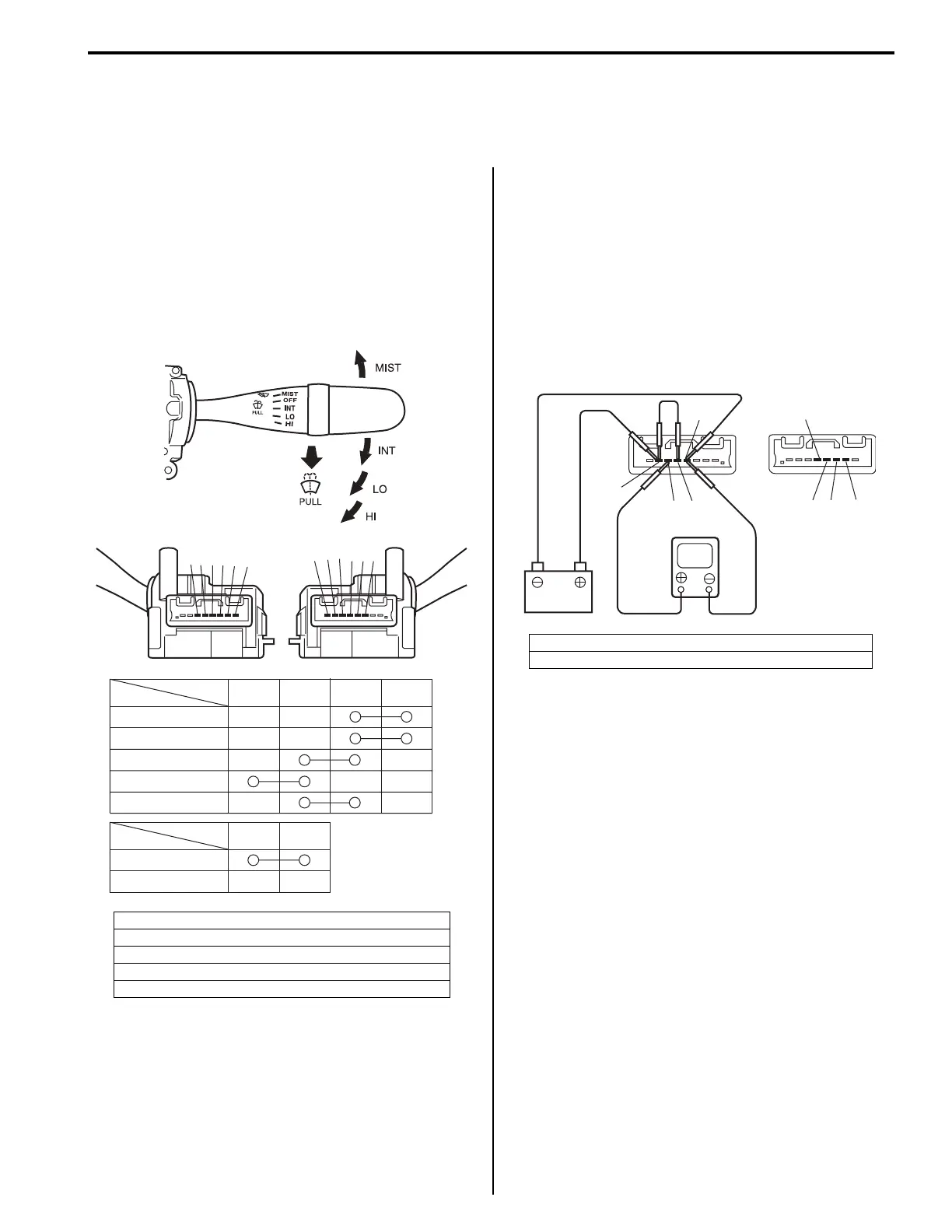

Windshield Wiper and Washer Switch
Inspection
S5JB0E9406009
Windshield Wiper and Washer Switch
Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Intermittent Wiper Relay Circuit
1) Turn the windshield wiper switch to “INT” position.
2) Connect battery positive (+) terminal to terminal “5”
and its negative (–) terminal to terminal “2”.
3) Connect voltmeter positive lead to terminal “4” and
its negative lead to terminal “2”.
4) Check that the voltmeter indicates the battery
voltage (10 – 14 V).
5) Connect terminal “3” and terminal “5” by a jumper
wire.
[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light
[C]: Terminal
[D]: Wiper switch
[E]: Washer switch
OFF
INT
6543
MIST
OFF
12
ON
LO
HI
654321
1
2
3
4
5
6
[A]
[B]
[C]
[D]
[E]
[C]
I5JB0D940001-01
[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light
V
2
34
5
2
34 5
[B] [A]
I5JB0D940002-02
To Next Page
