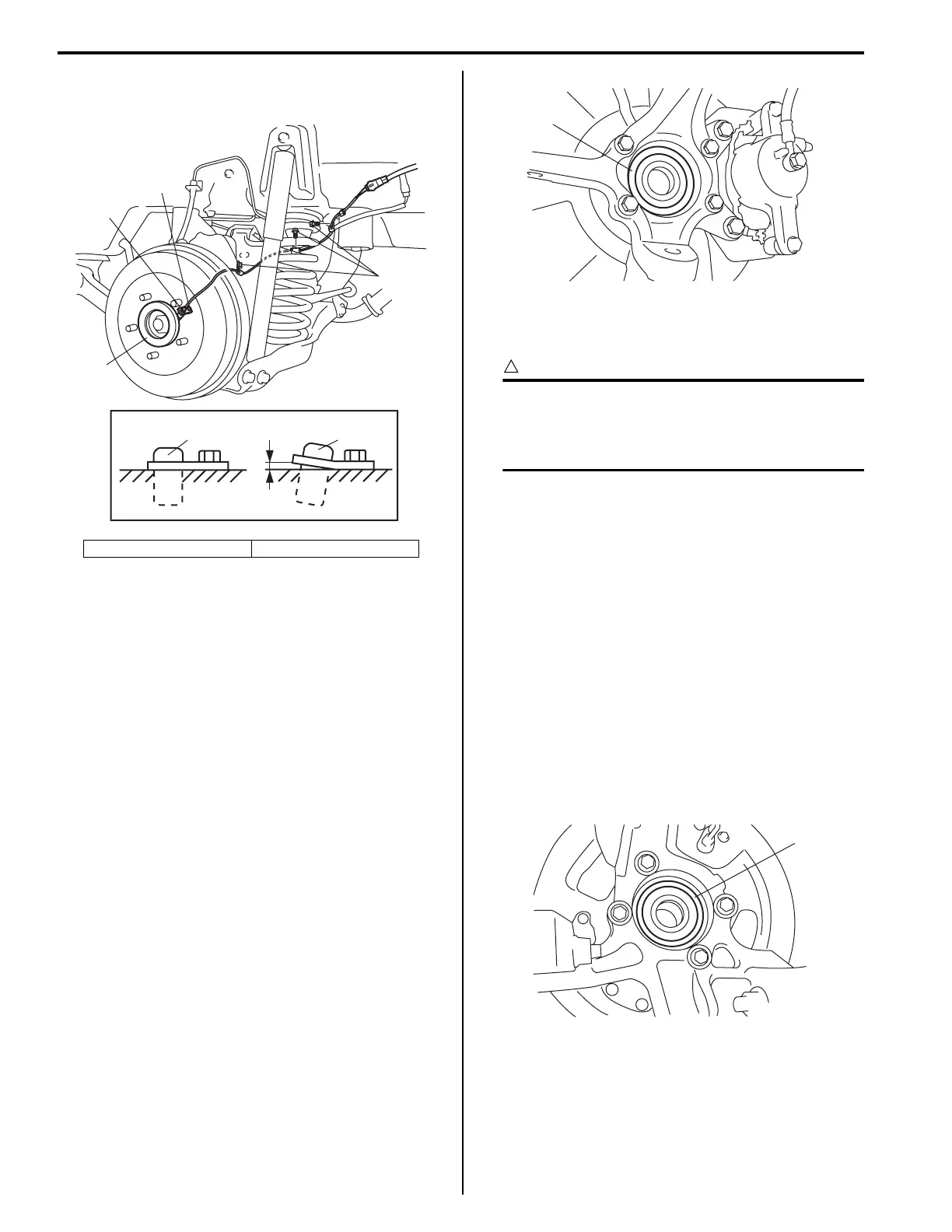

4E-39 ABS:
• Check that there is no clearance between sensor and
brake back plate.
Rear Wheel Speed Sensor Inspection
S5JB0E4506010
Refer to “Front Wheel Speed Sensor Inspection: ” since
rear wheel speed sensor is the same as front wheel
speed sensor.
Front Wheel Encoder On-Vehicle Inspection
S5JB0E4506011
Before inspect front wheel encoder, remove front drive
shaft or front wheel spindle referring to “Front Drive Shaft
Assembly Removal and Installation: Front in Section 3A
in related manual” or “Front Wheel Hub Assembly
Removal and Installation: in Section 2B”.
• Check encoder (1) for being crack, damaged or
deformed.
• Turn wheel and check if encoder rotation is free from
eccentricity and looseness.
• Check that no foreign material is attached.
If any faulty is found, repair or replace. Refer to “Front
Wheel Hub Assembly Removal and Installation: in
Section 2B”.
Front Wheel Encoder Removal and Installation
S5JB0E4506012
CAUTION
!
Front wheel encoder is included in front
wheel hub assembly. If front wheel encoder
needs to replaced, replace it as a front wheel
hub assembly.
For removal and installation of front wheel hub
assembly, referring to“Front Wheel Hub Assembly
Removal and Installation: in Section 2B”.
Rear Wheel Encoder On-Vehicle Inspection
S5JB0E4506013
Before inspect rear wheel encoder, remove rear drive
shaft referring to “Rear Drive Shaft Assembly Removal
and Installation: Rear in Section 3A in related manual”.
• Check encoder (1) for being crack, damaged or
deformed.
• Turn wheel and check if encoder rotation is free from
eccentricity and looseness.
• Check that no foreign material is attached.
If any faulty is found, repair or replace. Refer to “Rear
Wheel Hub Assembly Removal and Installation: in
Section 2C in related manual”.
[A]: OK [B]: NG
[A]
[B]
2
1
(a)
(b)
1
1
I5JB0A450033-01
1
I5JB0A450034-01
1
I5JB0A450035-01
