3C-9 Transfer: Motor-Shift Type (Transfer with Shift Actuator)
N (Neutral) Position

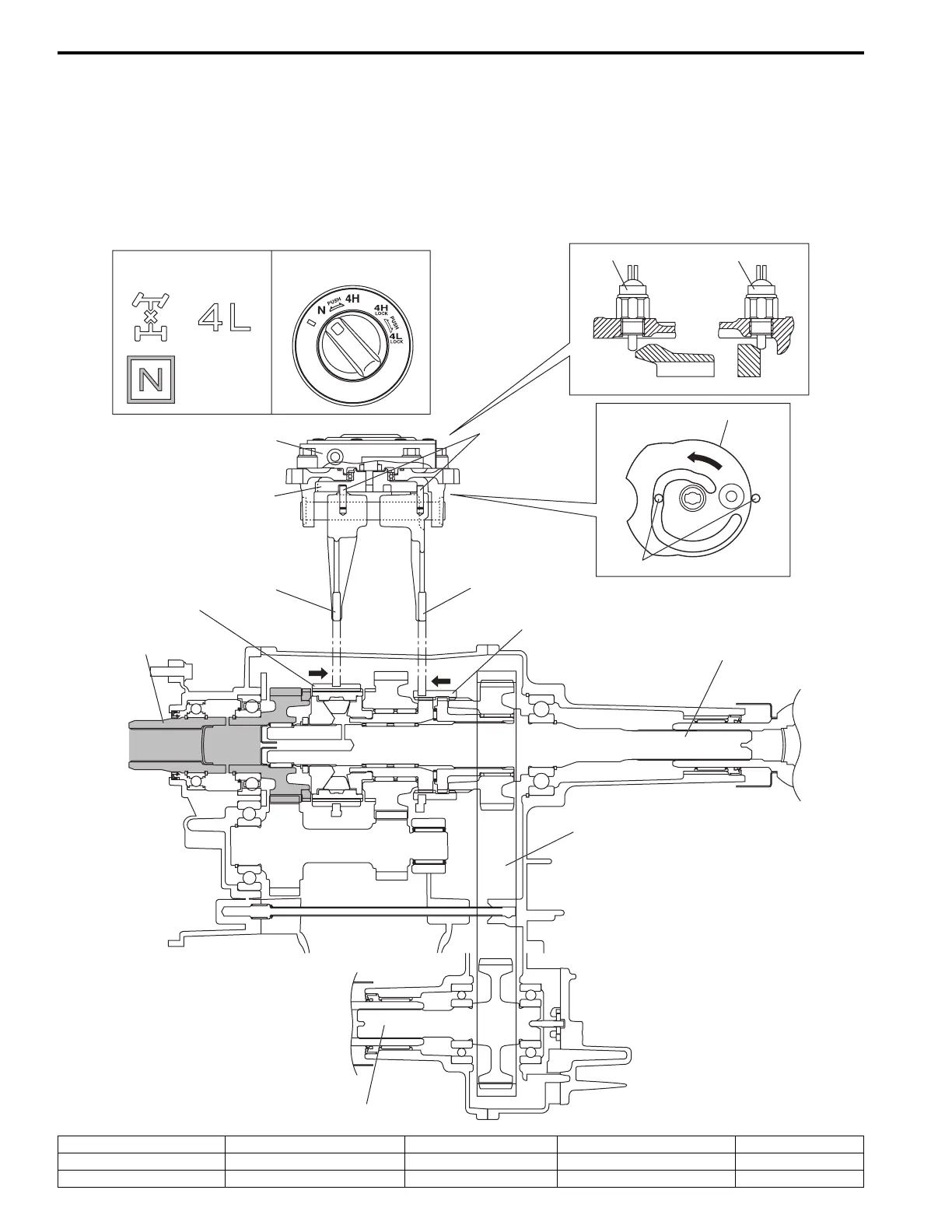

When N position is selected from 4H position by turning the transfer switch, the transfer shift control actuator motor
runs and shift cam rotates in the arrow direction “A”. The shift cam shifts the High / Low shift fork in the arrow direction
“B”, and the reduction shift sleeve moves in the arrow direction “B”. Also, the shift cam shifts the differential lock shift
fork in the arrow direction “C”, and the differential lock clutch sleeve also moves in the arrow direction “C”.
The driving force from the transmission is transmitted to the transfer input gear. However, as the reduction shift sleeve
is not engaged with the transfer input gear and low gear, the driving force is not transmitted to the rear output shaft and
front output shaft.
A
C
B
[A] [B]
1
2
5
4
4
3
5
9
8
6
7
11
12
13
10
I5JB0A332005-01
[A]: Transfer position indicator 2. Center differential lock switch 5. Shift cam 8. Input gear 11. Rear output shaft
[B]: Transfer switch 3. Transfer actuator 6. High / Low shift fork 9. Reduction shift sleeve 12. Drive chain
1. 4L/N switch 4. Shift fork pin 7. Differential lock shift fork 10. Differential lock clutch sleeve 13. Front output shaft
