Electronic Stability Program: 4F-52
ESP® OFF Switch Removal and Installation
S5JB0E4606023
Removal
1) Disconnect negative (–) cable at battery.
2) Remove center garnish with audio unit (if equipped)
and HVAC control module referring to “Audio Unit
Removal and Installation: in Section 9C in related
manual”.
3) Remove HVAC control module from center garnish,
referring to “HVAC Control Module Removal and
Installation: in Section 7A in related manual”.

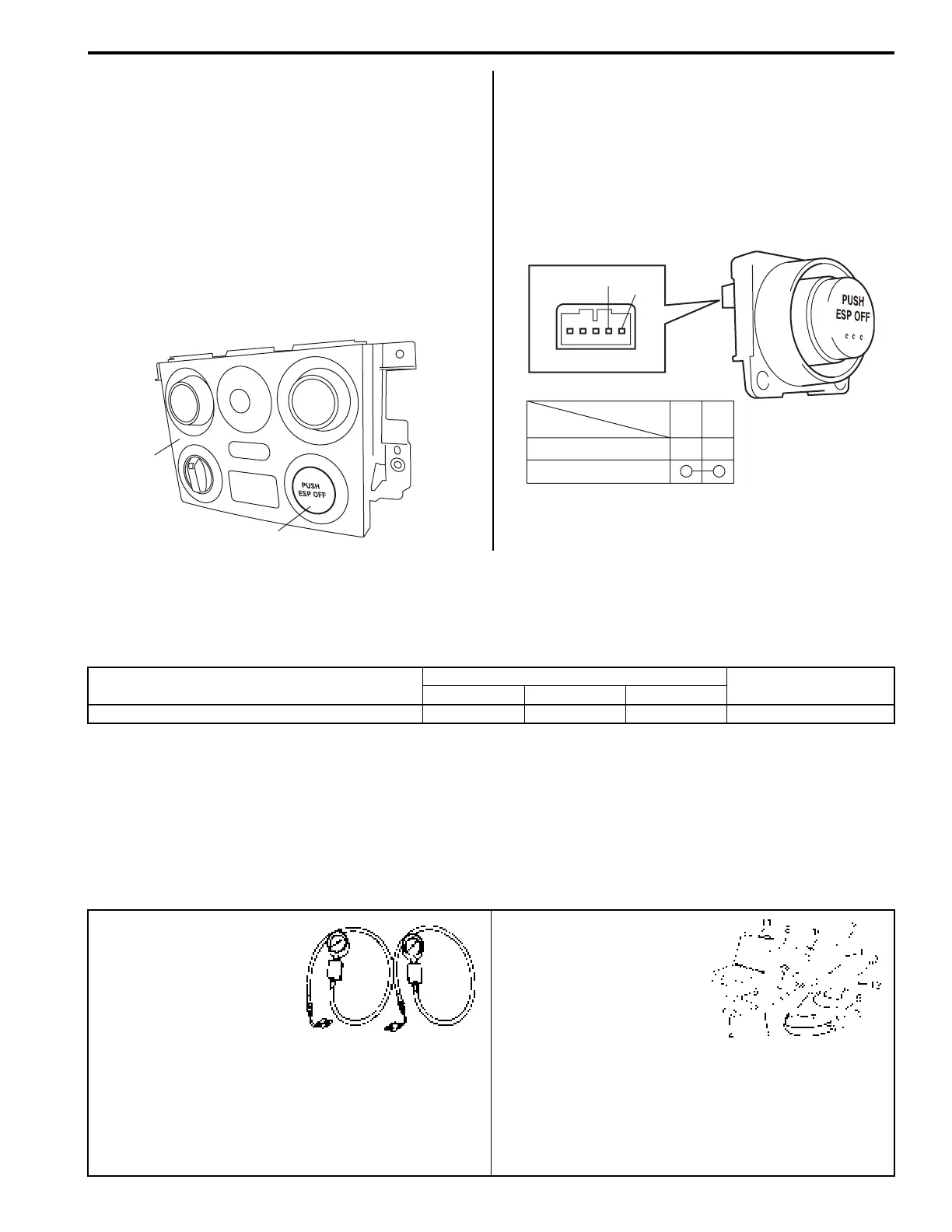

4) Remove ESP® OFF Switch (1) from center garnish
(2).
Installation
Reverse removal procedure.
ESP® OFF Switch Inspection
S5JB0E4606024
Check for continuity between terminals at each switch
position.
If check result is not as specified, replace ESP® OFF
switch.
Specifications
Tightening Torque Specifications
S5JB0E4607001
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A in
related manual”.
Special Tools and Equipment
Special Tool
S5JB0E4608001
2
1
I6JB01460034-01
ESP OFF switch
Terminal
FREE
PUSH
12
2
1
I6JB01460035-02
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Yaw rate / G sensor assembly bolt 8 0.8 6.0 )
09956–02311 SUZUKI scan tool
Brake pressure gauge —
) This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. Power
supply ) / ) / ) / ) / ) /
) / )
