Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-12

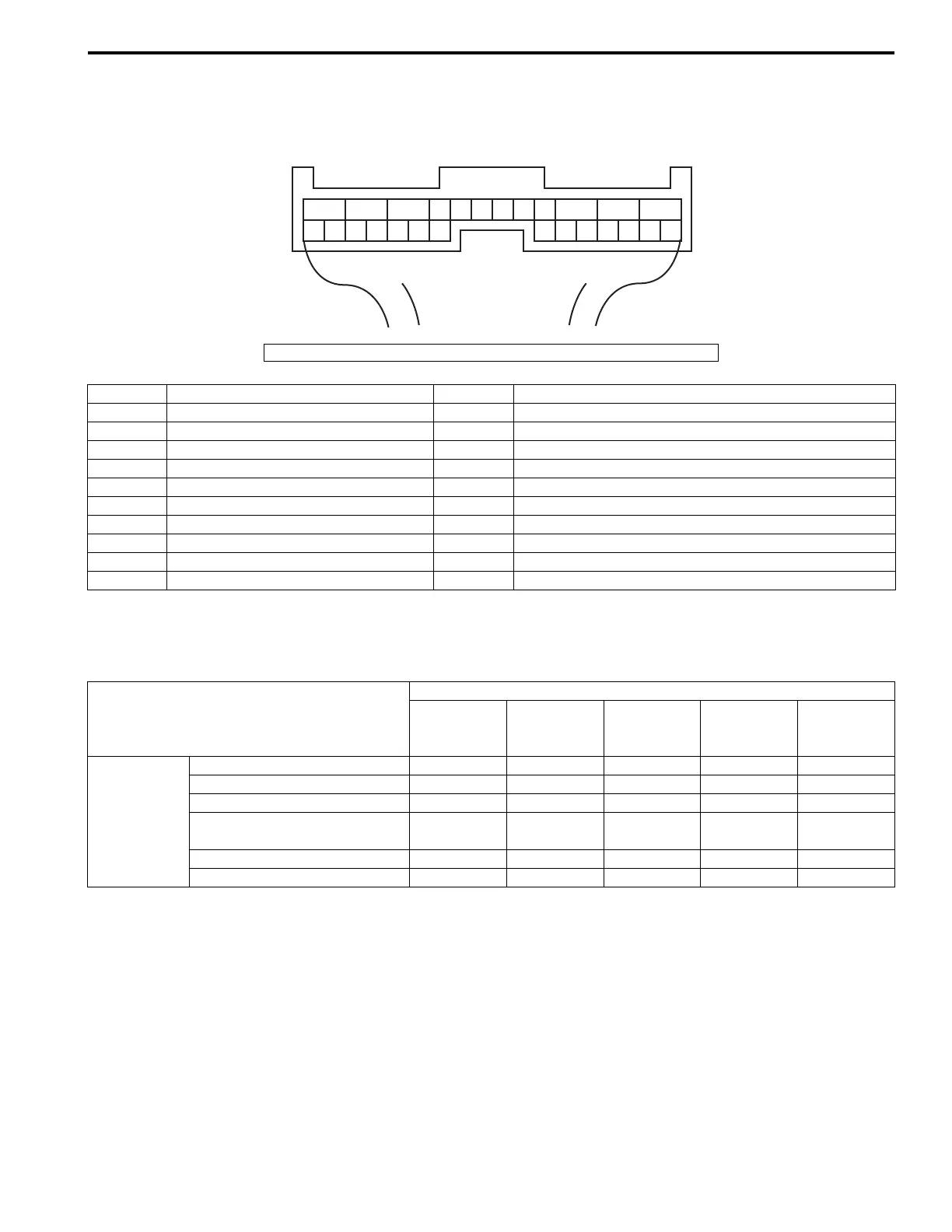

Terminal Arrangement of 4WD Control Module
S5JB0E3311007
Input / Output Signal Table of 4WD Control Module
S5JB0E3311008
4WD control module outputs the following signals to actuators, indicators, warning buzzer, according to the transfer
switch operation.
123456789101112
1314151617181920212223242526
[A]
I4JA01332038-01
[A]: Connector “E91” viewed from harness side
Terminal Circuit Terminal Circuit
E91-1 Ground E91-18 Transfer switch 1
E91-2 Transfer actuator motor 1 E91-19 Transfer switch 2
E91-3 Transfer actuator motor 2 E91-20 Transfer switch 3
E91-7 CPP switch E91-21 Data link connector (DLC)
E91-8 Diagnosis connector E91-22 CAN communication line (High)
E91-10 Ground E91-23 CAN communication line (Low)
E91-11 Power source for internal memory E91-24 Transfer actuator position switch (ground)
E91-12 Ignition switch E91-25 Transfer actuator position switch 1 (power)
E91-13 4L/N switch E91-26 Transfer actuator position switch 2 (power)
E91-14 Center differential lock switch
Output signal (to each component parts)
Transfer
shift
actuator
Differential
lock
indicator
4L indicator N indicator
Warning
buzzer
Input signal
Transfer switch {{{{{
CPP switch {{{{
TCM {{{{
ABS hydraulic unit / control
module
{{{{{
4L/N switch {{{
Center differential lock switch {{
To Next Page
