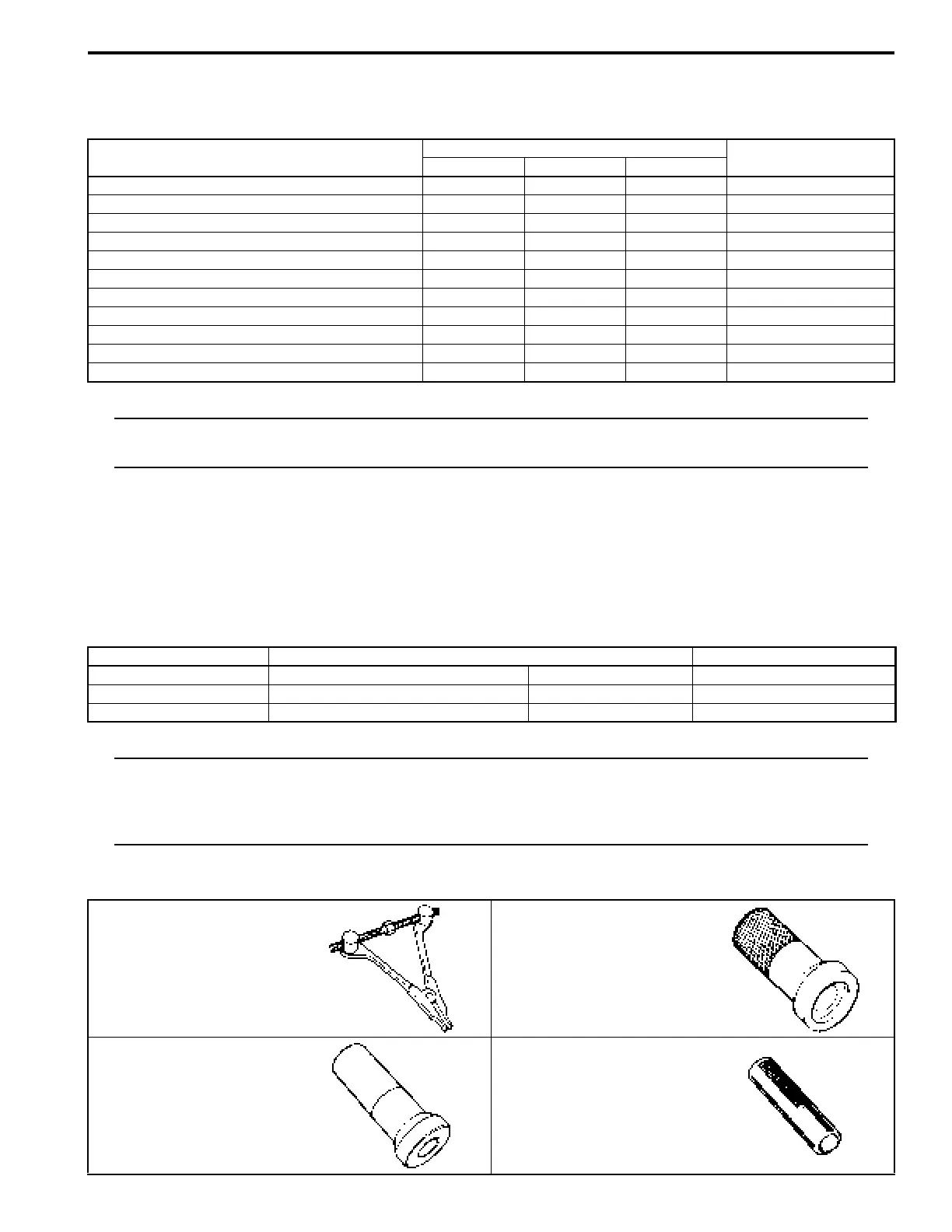

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-74
Specifications
Tightening Torque Specifications
S5JB0E3317001
NOTE
The specified tightening torque is also described in the following.
“Transfer Assembly Components: Motor-Shift Type (Transfer with Shift Actuator)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information: in Section 0A in
related manual”.
Special Tools and Equipment
Recommended Service Material
S5JB0E3318001
NOTE
Required service material is also described in the following.
“Transfer Assembly Components: Motor-Shift Type (Transfer with Shift Actuator)”
“Input Gear Assembly, Counter Gear Assembly, Front Output Shaft Assembly and Rear Output Shaft
Assembly Components: Motor-Shift Type (Transfer with Shift Actuator)”
Special Tool
S5JB0E3318002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Transfer oil level / filler plug 23 2.3 17.0 ) / )
Transfer oil drain plug 23 2.3 17.0 )
Input gear plate bolt 23 2.3 17.0 )
Rear case bolt 23 2.3 17.0 ) / )
Strainer bolt 10 1.0 7.5 )
Oil pump cover bolt 23 2.3 17.0 )
Control cover bolt 23 2.3 17.0 )
Control cover dowel bolt 23 2.3 17.0 )
Center differential lock switch 20 2.0 14.5 )
4L/N switch 20 2.0 14.5 )
Harness bracket bolt 10 1.0 7.5 )
Material SUZUKI recommended product or Specification Note
Grease SUZUKI Super Grease A P/No.: 99000–25010 ) / ) / ) / )
Sealant SUZUKI Bond No.1217G P/No.: 99000–31260 ) / ) / ) / ) / ) / ) / )
Thread lock cement Thread Lock Cement Super 1322 P/No.: 99000–32110 )
09912–34510 09913–70123
Case separator Bearing installing tool
)) / ) / ) / )
09913–76010 09913–80113
Bearing installer Bearing installer
) / ) / ) / ) / ))
To Next Page
