Front Brakes: 4B-1
Front Brakes
Repair Instructions

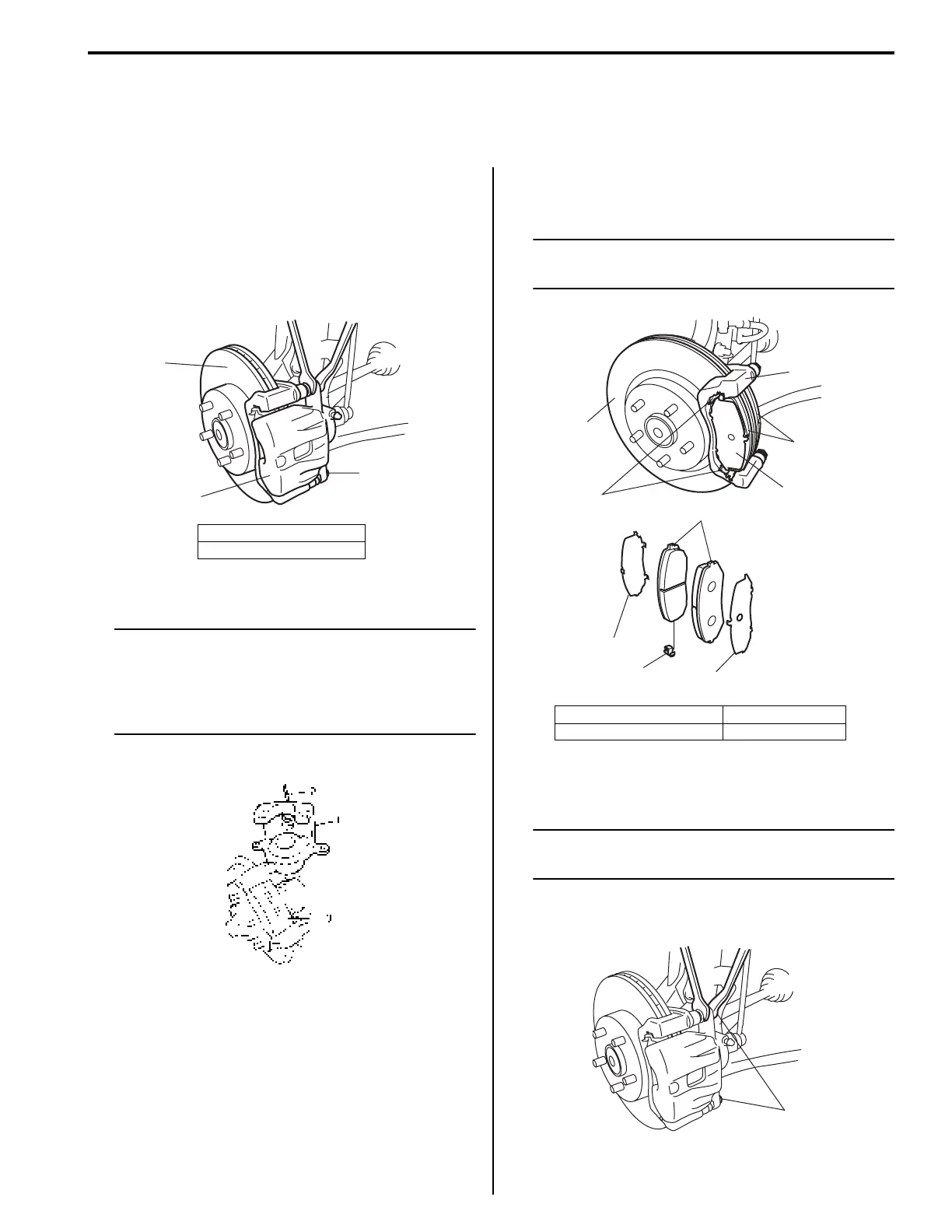

Front Disc Brake Pad Removal and Installation
S5JB0E4206003
Removal
1) Hoist vehicle and remove front wheel.
2) Remove caliper pin bolts (2).
3) Remove caliper (1) from caliper carrier.
NOTE
Hang removed caliper (1) with a wire hook (2)
or the like so as to prevent brake hose from
bending and twisting excessively or being
pulled. Don’t operate brake pedal with pads
removed.
4) Remove pads (3).
Installation
1) Install pad spring (1) and pads (2).
NOTE
Install brake pad with wear indicator (5) to
vehicle center side on right wheel brake.
2) Install caliper and tighten caliper (slide) pin bolts (1)
to specified torque.
NOTE
Make sure that boots are fit into groove
securely.
Tightening torque
Caliper pin bolt (a): 36 N·m (3.6 kgf-m, 26.0 lb-ft)
1. Caliper
3. Disc
3
1
2
I5JB0A420003-01
I1SQ01420004-01
3. Disc 6. Shim
4. Caliper carrier
5
2
2
1
3
4
6
6
6
I5JB0A420004-01
1,(a)
I5JB0A420005-01
