3C-33 Transfer: Motor-Shift Type (Transfer with Shift Actuator)
DTC C1224 / C1236: Transfer Shift Actuator Motor Position Switch 1 Circuit Short / Transfer Shift
Actuator Motor Position Switch 2 Circuit Short
S5JB0E3314017

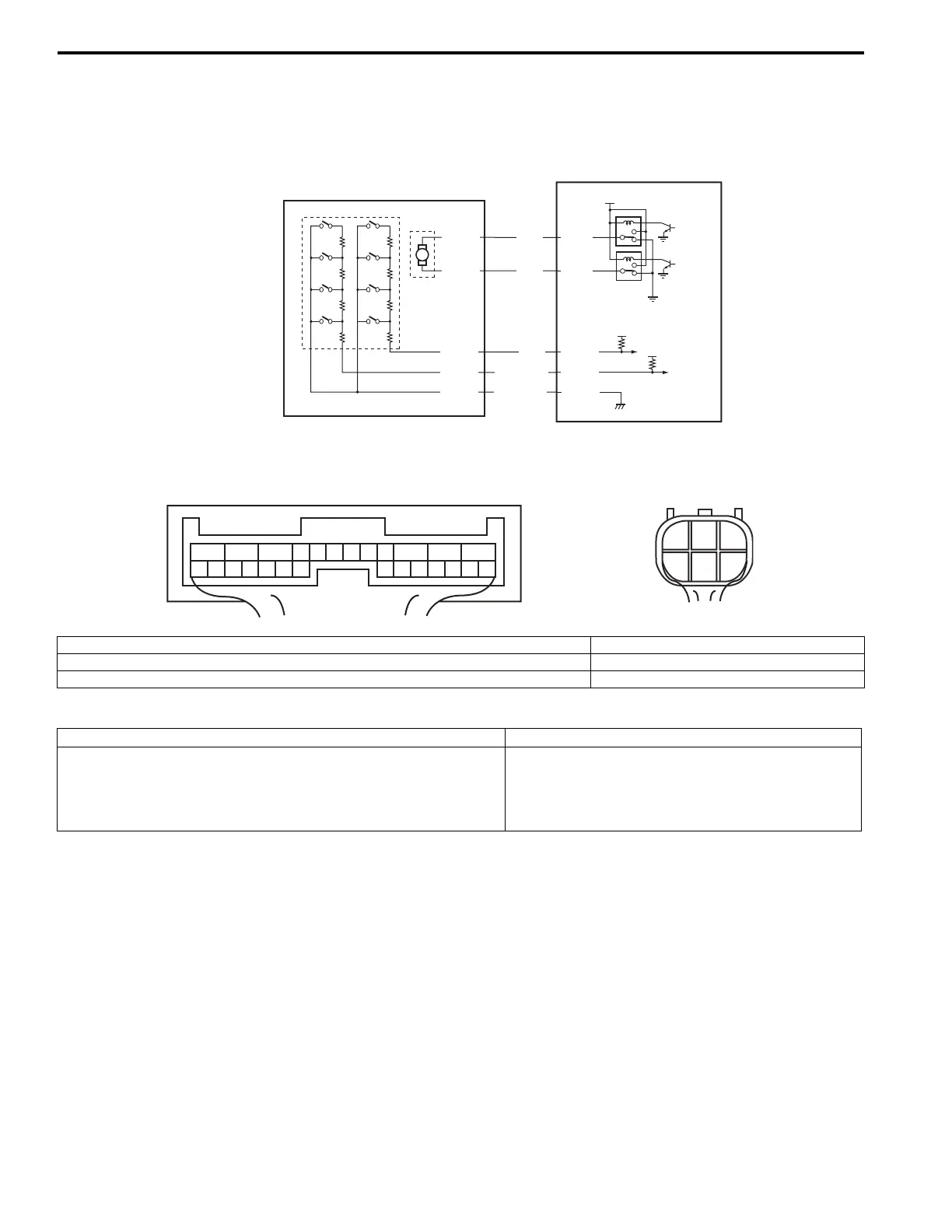

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Clear DTC using scan tool.
2) Select transfer switch to “4H” position and keep its position for 10 seconds. Similarly select transfer switch to “4H-
lock”, “N” and “4L-lock” position.
3) Check DTC.
5V
12V
E91-2
5V
YEL
RED/BLK
BLU
M
E91-3
E91-25
E91-26
RED
E91-24
BLK/YEL
1
2
3
C54-1
C54-4
C54-2
C54-3
C54-5
4
1
2
3
45
6
7
891011
12
13
14
1516
1718
19
20
21
22
23
24
25
26
[A]
1
2
3
4
5
6
[B]
I5JB0A332017-01
[A]: 4WD control module connector “E91” (viewed from harness side) 2. Transfer shift actuator motor position switch
[B]: Transfer shift actuator connector “C54” (engine harness side) (viewed from harness side) 3. Transfer shift actuator motor
1. Transfer shift actuator 4. 4WD control module
DTC detecting condition Trouble area
Transfer shift actuator motor position switch signal voltage 0.6 V
or less.
• Transfer shift actuator motor position switch
• Transfer shift actuator motor position switch
circuit
• 4WD control module
