9D-2 Wipers / Washers:
6) Disconnect end of the jumper wire from terminal “5”.
7) Connect disconnected jumper wire end to terminal
“2”, then check that voltage between terminal “4” and
terminal “2” changes as shown.
If check result is not satisfied, replace switch.

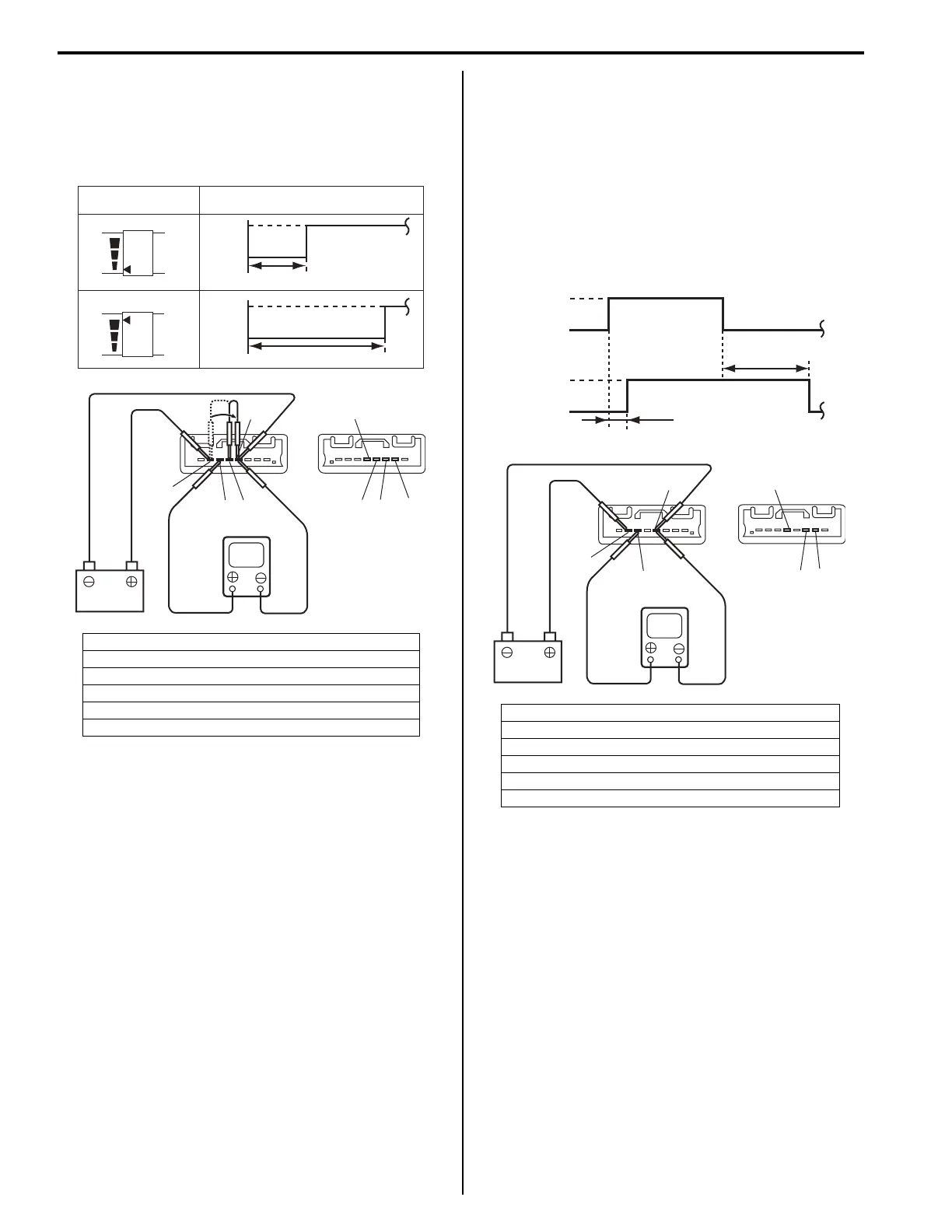

Washer Linked Circuit
1) Make sure that front wiper switch is at “OFF”
position.
2) Connect battery positive (+) terminal to terminal “5”
and its negative (–) terminal to terminal “2”.
3) Connect voltmeter positive lead to terminal “4” and
its negative lead to terminal “2”.
4) When front washer switch is ON, check that voltage
changes as shown in figure.
If check result is not satisfied, replace switch.
[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light
[C]: Voltage
[D]: INT time control switch position
[E]: 1.6 ± 1 sec.
[F]: 10.7 ± 5 sec.
V
INT
TIME
INT
TIME
10-14V
0V
10-14V
0V
2
34
5
2
34 5
[B] [A]
[C][D]
[E]
[F]
I5JB0D940003-02
[A]: RH steering vehicle without rear fog light
[B]: Other than RH steering vehicle without rear fog light
[C]: Wiper switch
[D]: Voltage
[E]: Approx. 2.2 sec.
[F]: Approx. 0.3 sec.
V
2
4
5
2
45
[B] [A]
ON
OFF
High
Low
[E]
[F]
[C]
[D]
I5JB0D940004-02
