4A-9 Brake Control System and Diagnosis:
Brake Booster Components
S5JB0E4106017
NOTE
The difference between RH steering vehicle and LH steering vehicle booster components is the
location of vacuum hose.
1
2
3
4
5
6
7
8
10
(a)
(b)
(c)
9
11
I5JB0D410001-01

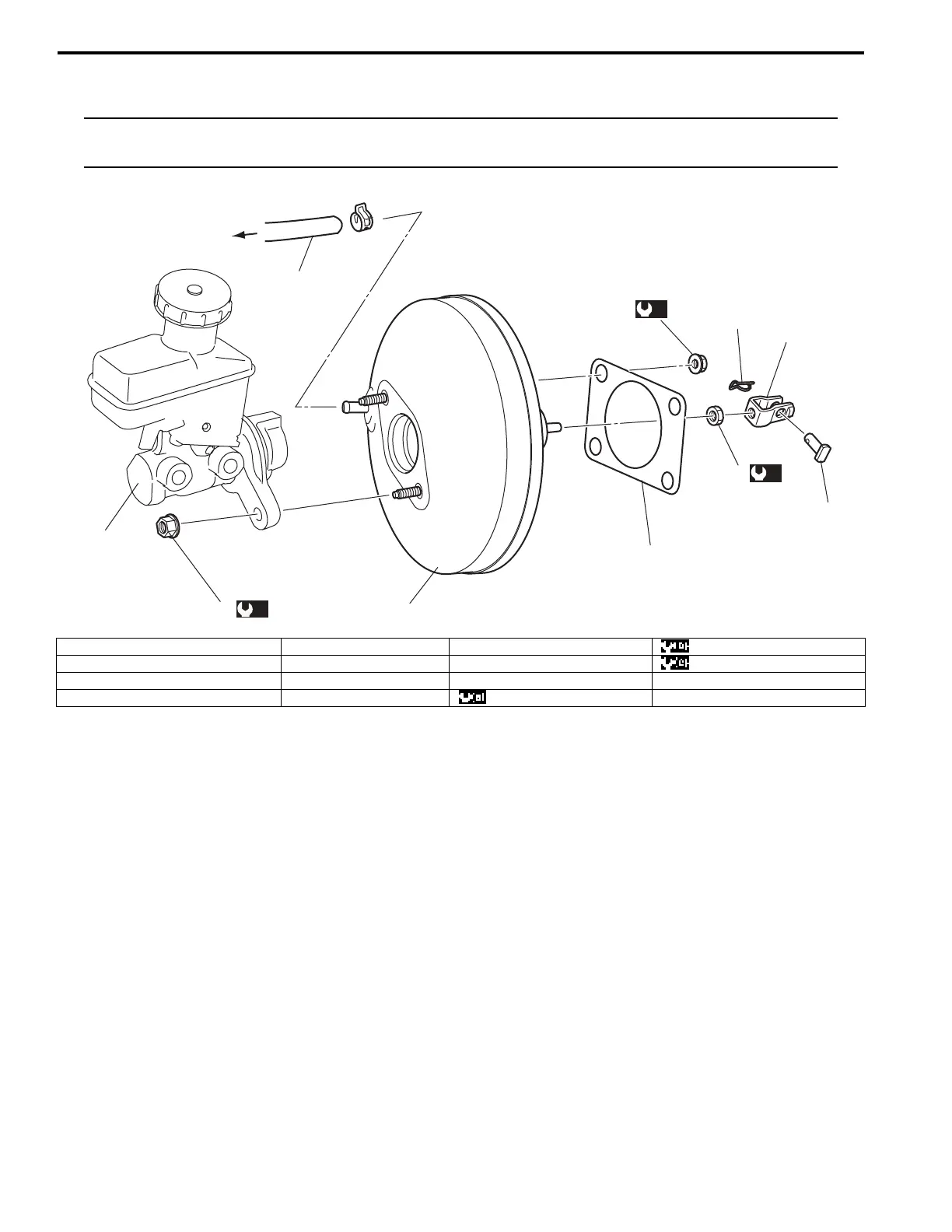

1. Brake master cylinder assembly 5. Clevis pin lock nut 9. Brake vacuum hose : 13 N⋅m (1.3 kgf-m, 9.5 lb-ft)
2. Brake booster assembly 6. Clevis pin 10. Master cylinder fixing nut : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
3. Gasket 7. Clip 11. To intake manifold
4. Push rod clevis 8. Booster attaching nut : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)
