Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-18
e) Check that 4L indicator blink, and then
differential lock indicator and 4L indicator comes
ON steady.
3) Inspect shift operation from 4L-lock to 4H-lock as
follows.
a) Stop vehicle completely with engine running.
b) Position front wheels straight ahead.
c) Confirm that vehicle is under following
conditions.
• Transfer shift position is 4L-lock.
• Transmission shift lever is at “N” position. (for
A/T model)
• Clutch pedal is depressed fully. (for M/T
model)
• Brake pedal is depressed.
d) Push and turn transfer switch to “4H-lock”
position.
e) Check that 4L indicator blink, and then
differential lock indicator comes ON steady and
4L indicator not come ON.
4) Inspect shift operation from 4H-lock to 4H as follows.
a) Start engine.
b) Position front wheels straight ahead.
c) Confirm that vehicle is under following
conditions.
• Transfer shift position is 4H-lock.
• Vehicle speed is less than 100 km/h (60 mph).
d) Turn transfer switch to “4H” position.
e) Check that differential lock indicator blinks, and
then not comes ON.
5) Inspect shift operation from 4H to N as follows.
a) Stop vehicle completely with engine running.
b) Position front wheels straight ahead.
c) Confirm that vehicle is under following
conditions.
• Transfer shift position is 4H.
• Transmission shift lever is at “N” position. (for
A/T model)
• Clutch pedal is depressed fully. (for M/T
model)
• Brake pedal is depressed.

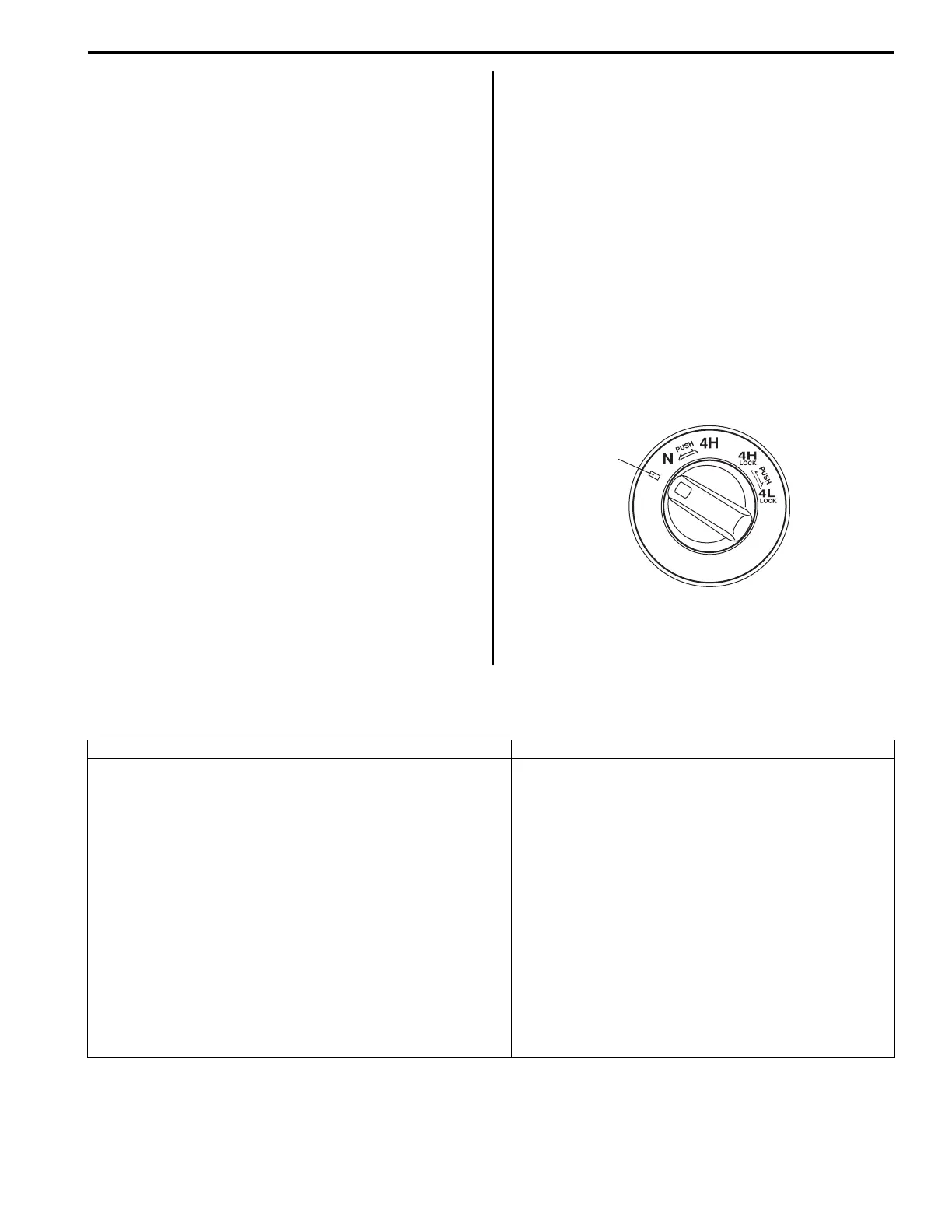

d) Turn transfer switch to “” position (1), keep it
there for about 10 seconds, and then turn it to
“N” position after N indicator blinks.
e) Check that N indicator blinks and warning buzzer
sounds, and then N indicator comes ON steady.
Visual Inspection
S5JB0E3314004
Check the following parts and systems visually.
1
I5JB0A332002-01
Inspection Item Referring
• Front differential oil ---- level, leakage “Front Differential Oil Change: Front in Section 3B in
related manual”
• Rear differential oil ---- level, leakage “Rear Differential Oil Change: Rear in Section 3B in
related manual”
• Transfer gear oil ---- level, leakage “Transfer Oil Change: Motor-Shift Type (Transfer with
Shift Actuator)”
• Manual transmission oil ---- level, leakage “Manual Transmission Oil Change: in Section 5B in
related manual”
• A/T fluid ---- level, leakage “A/T Fluid Level Check: in Section 5A in related
manual”
• Transfer mounting(s) ---- wear and looseness
• Fuses ---- burning
• Battery ---- fluid level, corrosion of terminal “Battery Inspection: in Section 1J in related manual”
• Connectors of electric wire harness ---- disconnection,
friction
“Intermittent and Poor Connection Inspection: in
Section 00 in related manual”
• Other parts that can be checked visually
