3C-45 Transfer: Motor-Shift Type (Transfer with Shift Actuator)
Troubleshooting
DTC C1243: Internal Circuit Malfunction of 4WD Control Module
S5JB0E3314024
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Clear DTC using scan tool.
2) Turn ignition switch to ON position for 60 seconds.
3) Check DTC.
Troubleshooting
Substitute a known-good 4WD control module and recheck.
DTC C1246: Clutch Pedal Position (CPP) Switch Circuit Short
S5JB0E3314025

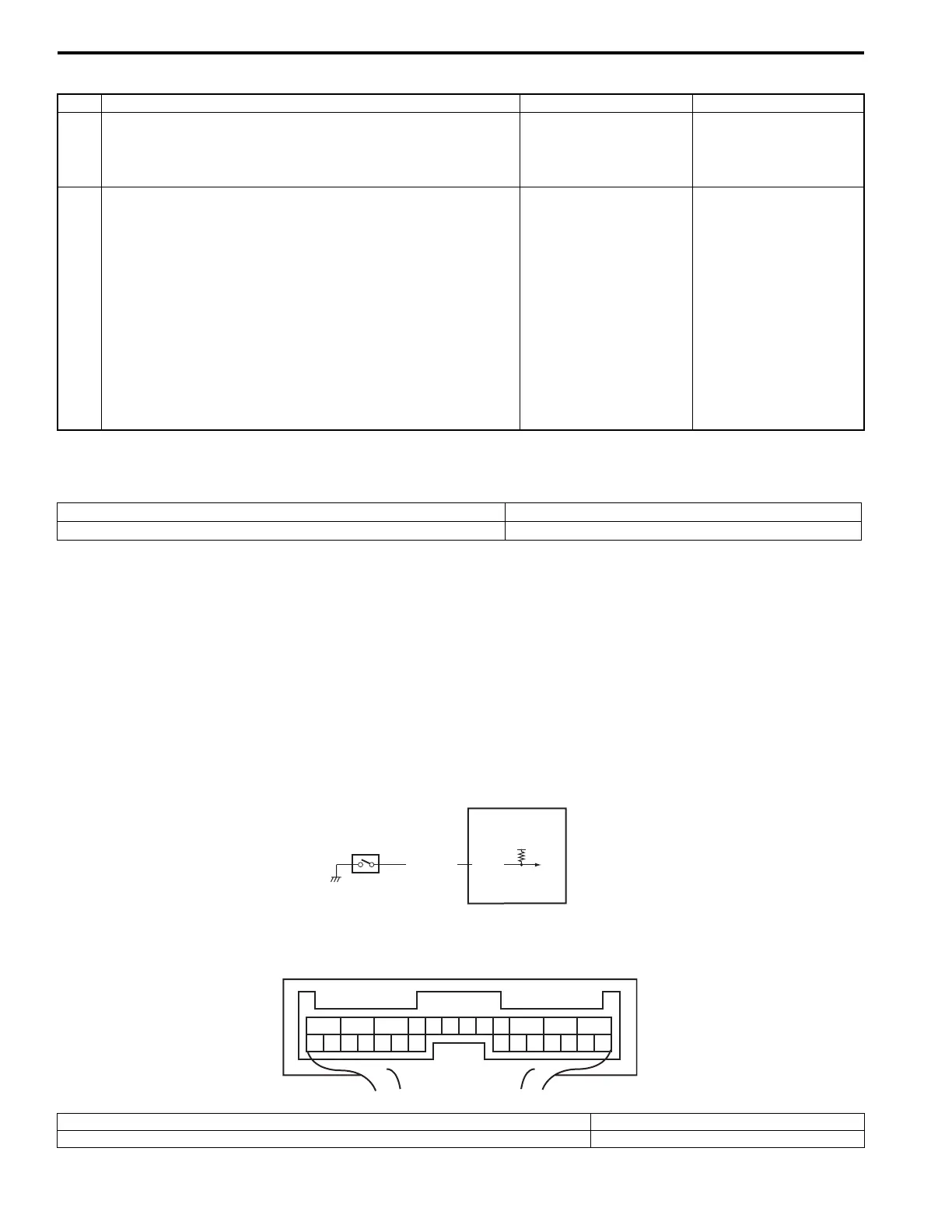

Wiring Diagram
Step Action Yes No
1 Was “4WD control system check” performed? Go to Step 2. Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.
2 4WD control module power circuit check
1) Disconnect 4WD control module connector with ignition
switch OFF.
2) Check for proper connection to “E91” terminal of 4WD
control module connector.
3) If connection is OK, measure voltage between “E91-11”
terminal of 4WD control module connector and vehicle
body ground with ignition switch ON.
Is it 10 – 14 V?
Poor “E91-11”
connection or
intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection: in Section
00 in related manual”. If
wire and connections
are OK, substitute a
known-good 4WD
control module and
recheck.
“4WD” fuse blown,
“WHT” or “BLK” wire is
circuit open or circuit
short.
DTC detecting condition Trouble area
EEPROM Error • 4WD control module
12V
E91-7
BLK/ORN
1
2
1
2
3
45
6
7
891011
12
13
14
1516
1718
19
20
21
22
23
24
25
26
[A]
I5JB0A332020-01
[A]: 4WD control module connector “E91” (viewed from harness side) 2. 4WD control module
1. CPP switch
To Next Page
