Suzuki GRAND VITARA JB416 User Manual

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-70

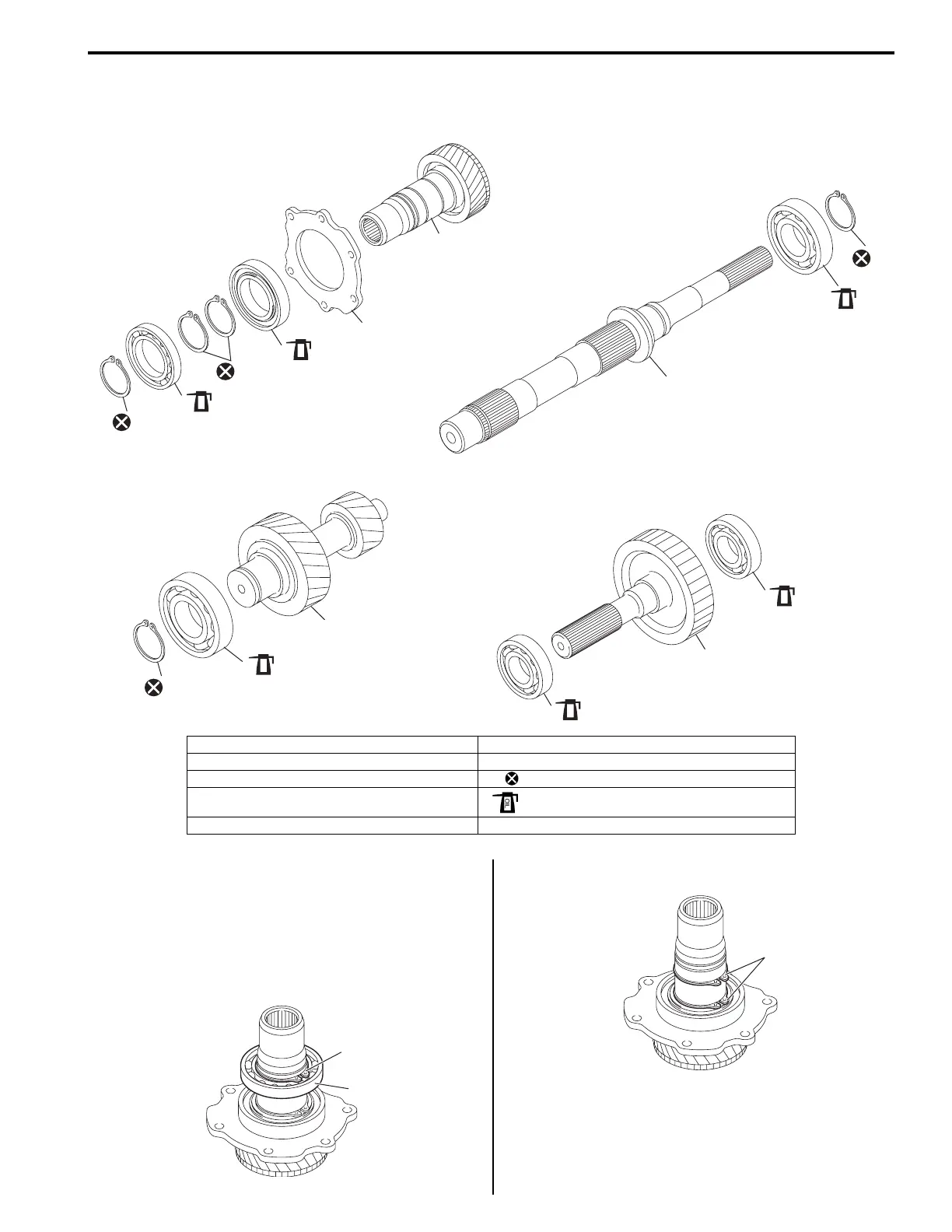

Input Gear Assembly, Counter Gear Assembly, Front Output Shaft Assembly and Rear Output Shaft
Assembly Components
S5JB0E3316011
Input Gear Assembly Disassembly and
Reassembly
S5JB0E3316012
Disassembly
1) Remove snap ring (1) from input gear, and then
remove bearing (2).
2) Remove snap rings (1).
4
3
2
5
6
7
OIL
2
OIL
2
OIL
2
OIL
2
OIL
1
1
1
1
2
OIL
I5JB0A331061-02
1. Snap ring 6. Counter gear
2. Bearing 7. Front output shaft
3. Input gear plate : Do not reuse.
4. Input gear : Apply transfer oil.
5. Rear output shaft
1
2
I5JB0A331062-01
1
I5JB0A331063-01
