Front Suspension: 2B-1
Front Suspension
General Description

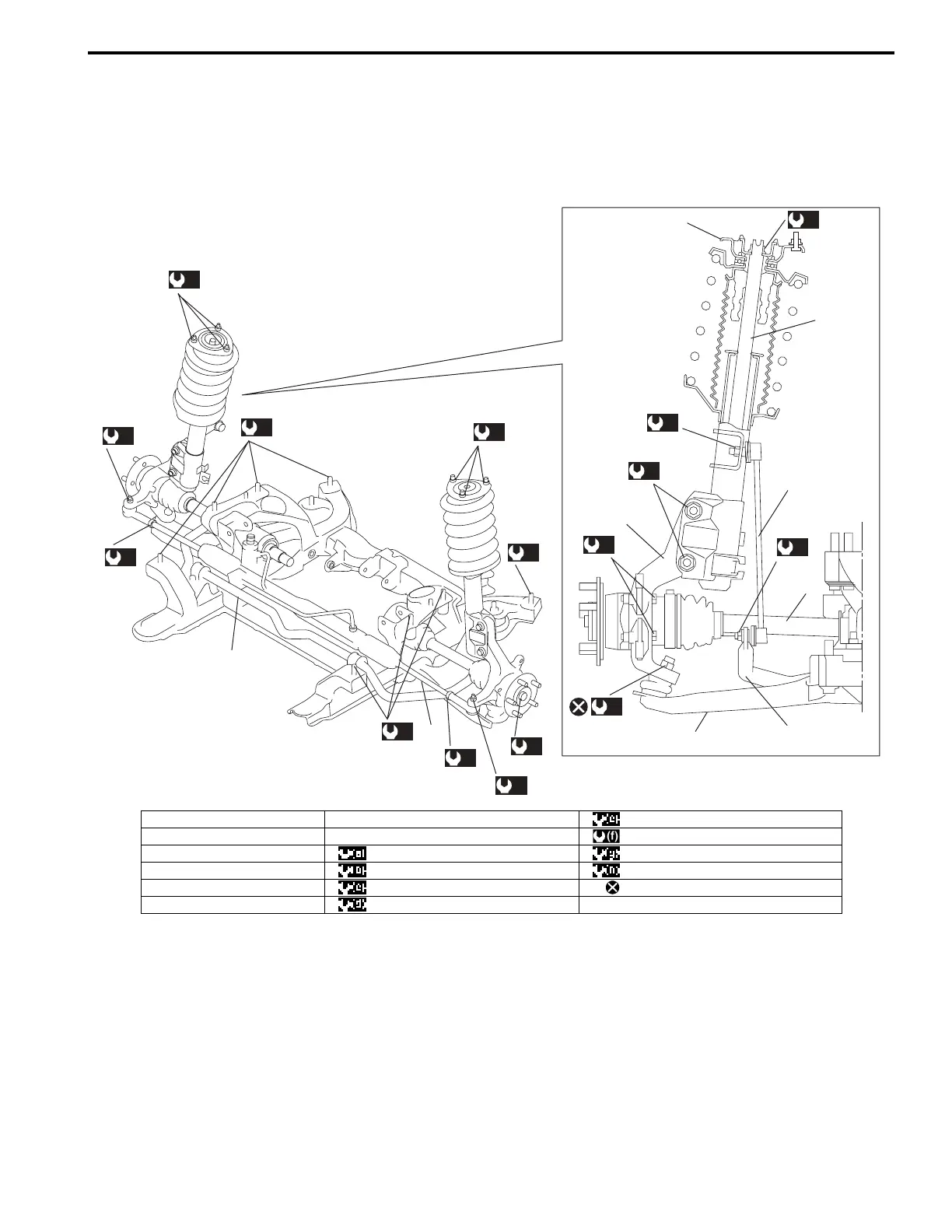

Front Suspension Construction
S5JB0E2201001
2
7
4
2
5
8
1
6
3
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(a)
(a)
(a)
(h)
(h)
(b)
(b)
(f)
(g)
I5JB0A220001-03
1. Front strut assembly 7. Tie-rod : 200 N⋅m (20.0 kgf-m, 145.0 lb-ft)
2. Stabilizer bar 8. Stabilizer bar joint : 65 N⋅m (6.5 kgf-m, 47.0 lb-ft)
3. Steering knuckle : 135 N⋅m (13.5 kgf-m, 98.0 lb-ft) : 43 N⋅m (4.3 kgf-m, 31.0 lb-ft)
4. Suspension control arm : 50 N⋅m (5.0 kgf-m, 36.5 lb-ft) : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
5. Front drive shaft : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft) : Do not reuse.
6. Vehicle body : 70 N⋅m (7.0 kgf-m, 51.0 lb-ft)
To Next Page
