Suzuki GRAND VITARA JB416 User Manual

Lighting Systems: 9B-4
Repair Instructions
Headlight Switch (in Lighting Switch)
Inspection
S5JB0E9206007

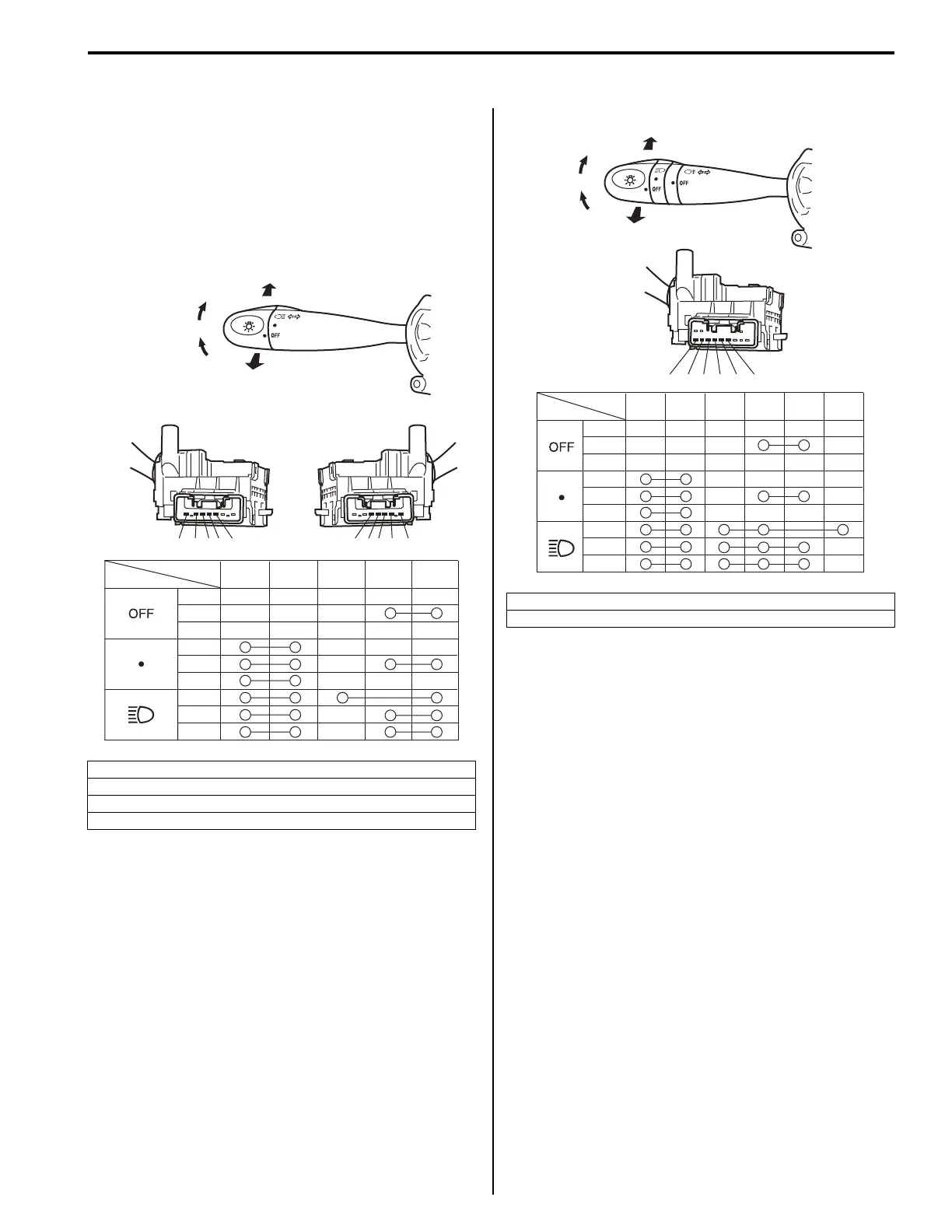

Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Without rear fog light switch and auto-on headlight
switch
With rear fog light switch
[A]: LH steering vehicle
[B]: RH steering vehicle
[C]: Terminal
[D]: Shaft condition
[C]
[D]
5
3124
LOW
PASS
HI
LOW
PASS
HI
LOW
PASS
HI
[A] [B]
1
2345123 4 5
I5JB0D920007-01
[A]: Terminal
[B]: Shaft condition
[A]
[B]
14 356
LOW
PASS
HI
LOW
PASS
HI
LOW
PASS
HI
2
54321 6
I5JB0D920011-04
