Cruise Control System: 10A-1
Cruise Control System
General Description
Cruise Control System Construction
S5JB0EA101001
The cruise control system is a device which maintains a preset vehicle speed while driving at a high speed, e.g., on a
highway. It allows the driver to drive his vehicle at a constant speed of 40 km/h (25 mile/h) or higher without
depressing the accelerator pedal. The system also has such functions as to change the vehicle speed without
operating the accelerator pedal (but using SET/COAST and RES/ACC switches), cancel cruise control (CANCEL
switch) and resume the speed in memory automatically after cruise control is cancelled (RES/ACC switch). The
system mainly consists of electric throttle body assembly, ECM, cruise control switch (MAIN (ON/OFF) switch, SET/
COAST switch, RES/ACC switch and CANCEL switch), etc.
15
14
16
16
10
10
13
15
14
9
11
12
13
3
5
8
6
7
4
1
2
9

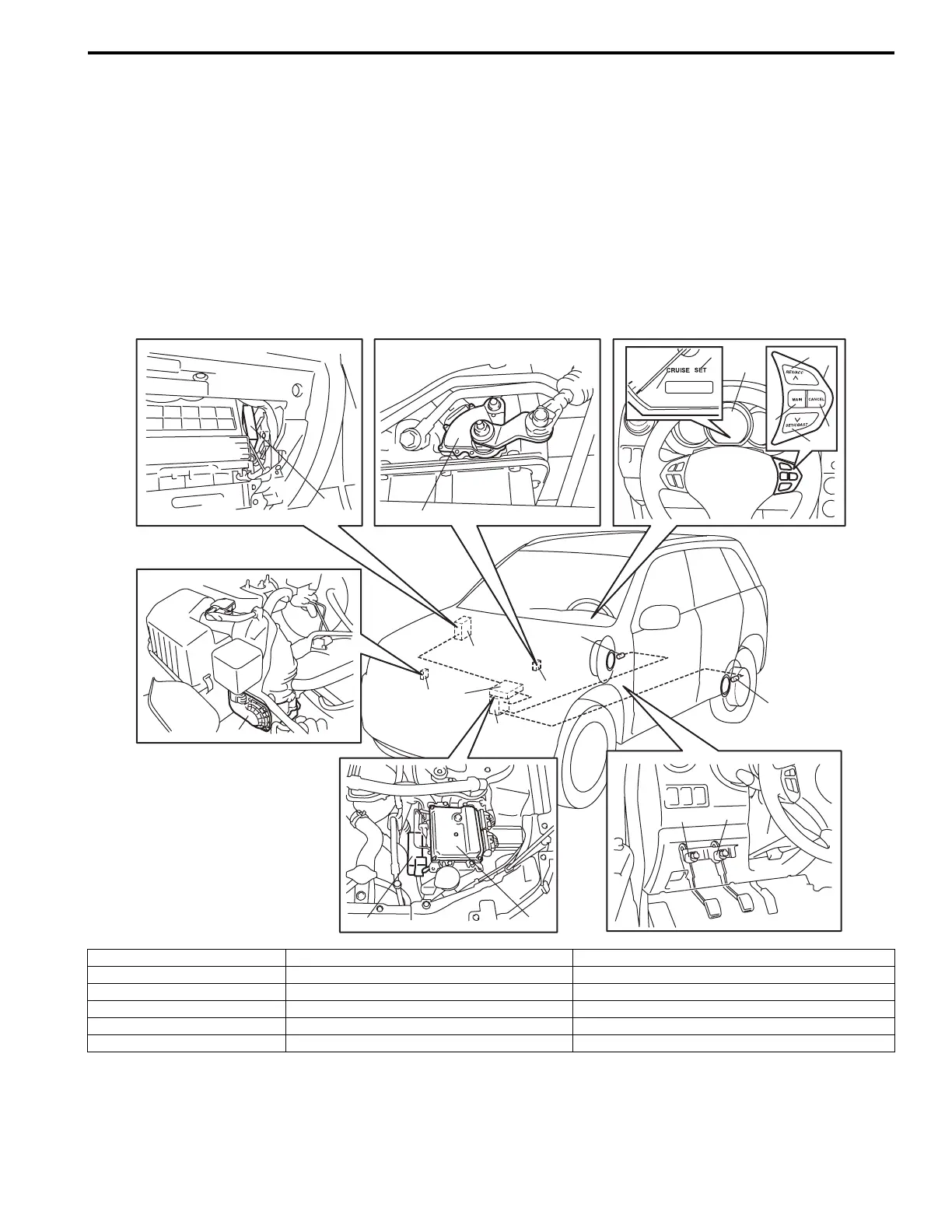

I5JB0AA10001-01
1. Combination meter 7. SET/COAST switch 13. ECM
2. “CRUISE” indicator lamp 8. CANCEL switch 14. Transmission range switch (A/T vehicle only)
3. “SET” indicator lamp 9. Wheel speed sensor (vehicle speed signal) 15. TCM (A/T vehicle only)
4. Cruise control switch assembly 10. ABS or ESP® control module 16. Electric throttle body assembly
5. RES/ACC switch 11. Brake light switch with brake pedal position switch
6. MAIN (ON/OFF) switch 12. Clutch pedal position switch (M/T vehicle only)
