10E-6 Keyless Start System:
Inspection of Keyless Start Control Module and Its Circuits
S5JB0EA504013
Keyless start control module and its circuits can be checked at keyless start control module wiring couplers by
measuring voltage and resistance.
CAUTION
!
Keyless start control module cannot be checked by itself. It is strictly prohibited to connect voltmeter
or ohmmeter to keyless start control module with coupler disconnected from it.
Voltage Check
1) Disconnect negative cable (–) at battery.
2) Remove keyless start control module from vehicle body referring to “Keyless Start Control Module Removal and
Installation: in related manual”.
3) Connect connector to keyless start control module.

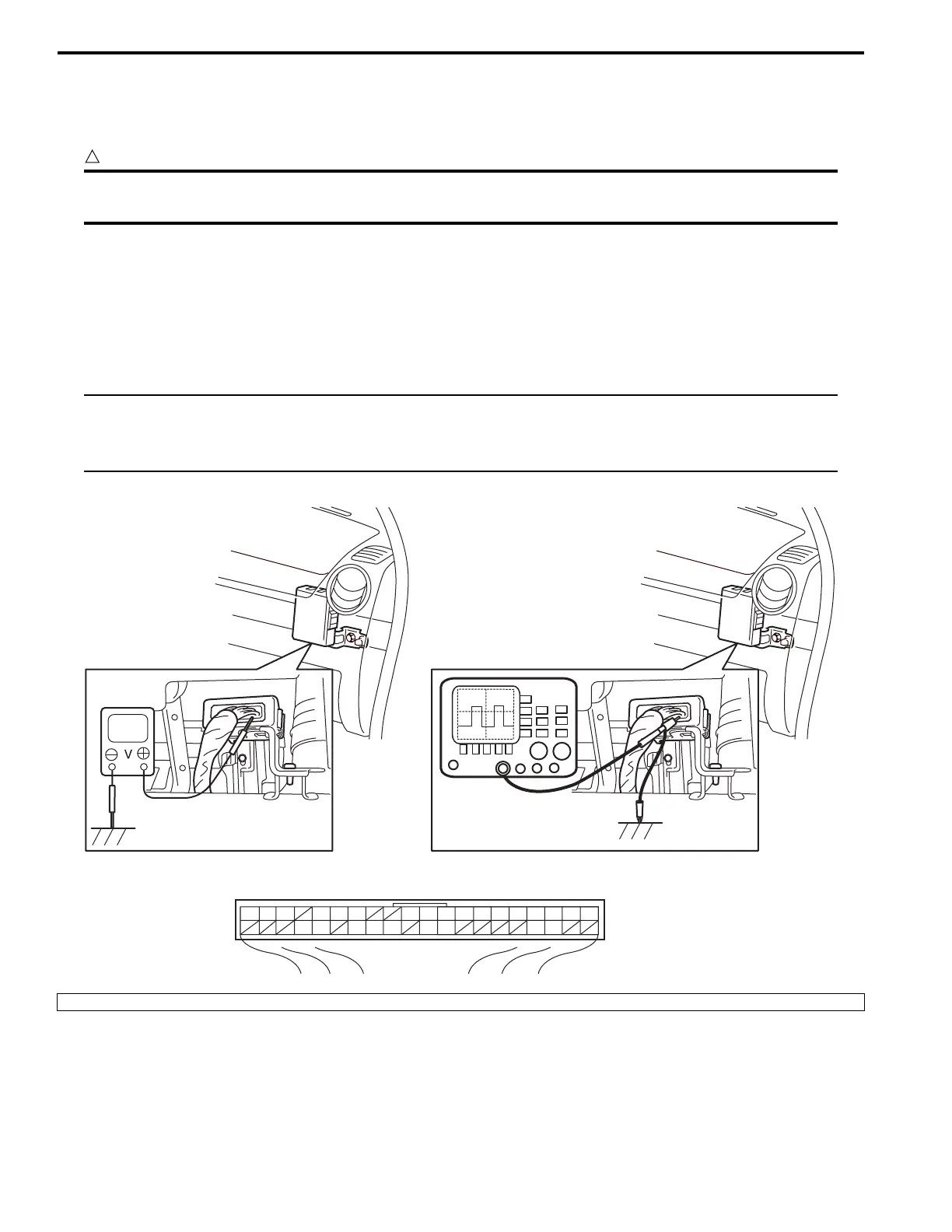

4) Check voltage at each terminal number of couplers connected.
NOTE
• As each terminal voltage is affected by the battery voltage, confirm that it is 11 V or more when
ignition switch is ON.
• Voltage with asterisk (*) cannot be measured by voltmeter because it is pulse signal.
G44
[A]
1234567891011141516
36 34 33 32 30 29 24 2337
181920
I5JB0AA50012-02
[A]: Keyless start control module connector (viewed from harness side)
To Next Page
