Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-20
DTC Clearance
S5JB0E3314006

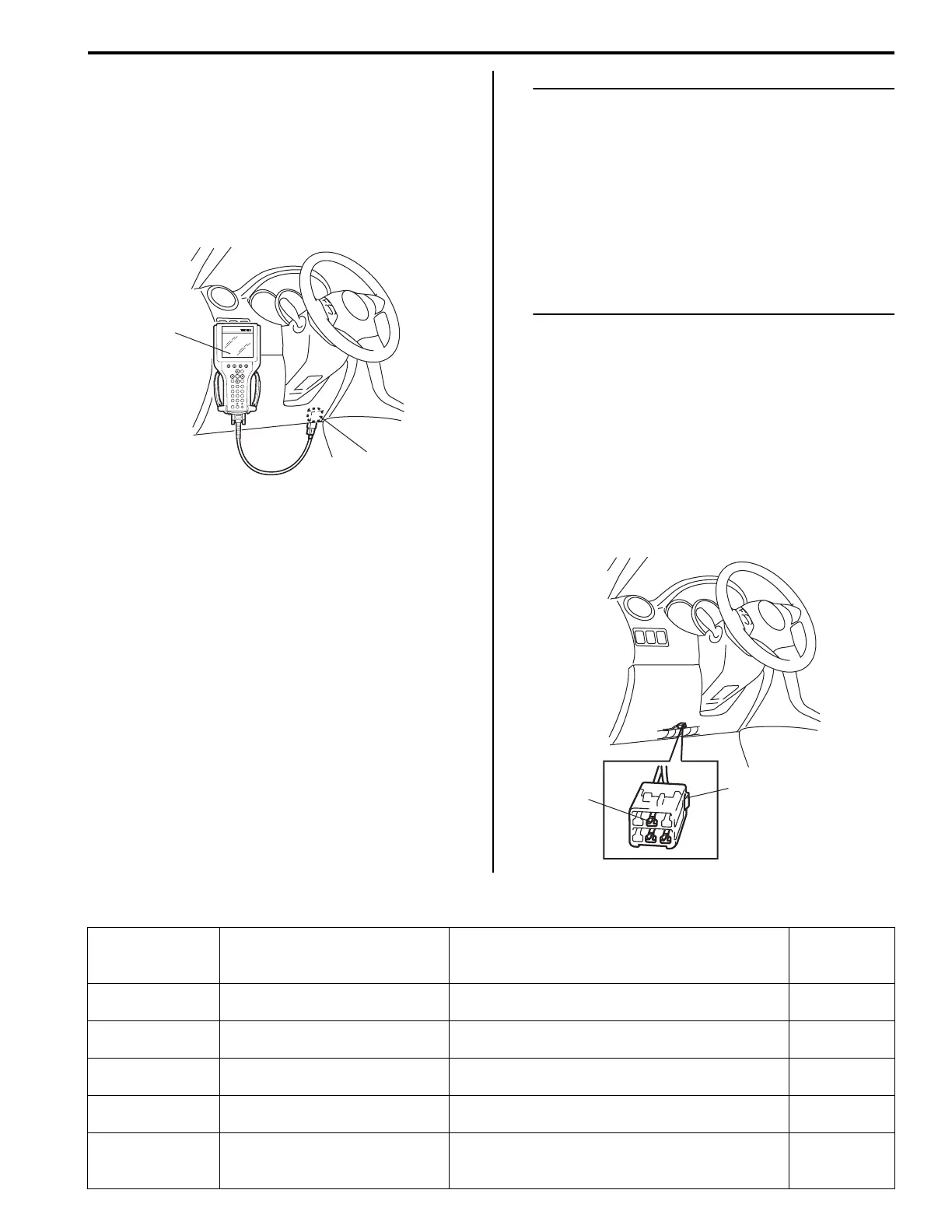

Using SUZUKI Scan Tool
1) Turn ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector
(DLC) (1) located on underside of instrument panel.
Special tool
(A): SUZUKI scan tool
3) Turn ignition switch to ON position.
4) Erase DTC according to instructions displayed on
SUZUKI scan tool. Refer to SUZUKI scan tool
operator’s manual for further details.
5) After completing clearance, turn ignition switch OFF
and disconnect SUZUKI scan tool from data link
connector (DLC).
6) Perform “DTC Check: Motor-Shift Type (Transfer
with Shift Actuator)” and confirm that NO CODES is
displayed.
NOTE
DTC and freeze frame data stored in 4WD
control module memory are also cleared in
the following cases. Be careful not to clear
them before keeping their record.
• When power to 4WD control module is cut
off (by disconnecting battery cable,
removing fuse or disconnecting 4WD
control module connectors).
• When the same malfunction (DTC) is not
detected again during 40 engine warm-up
cycles.
Using Diagnosis Connector
1) Turn ignition switch to ON position.
2) Using service wire short diagnosis switch terminal
(1) of diagnosis connector (2) and body ground more
than 5 times at about 1 second interval within 10
seconds.
3) Wait more than 9 seconds.
4) Perform “DTC Check: Motor-Shift Type (Transfer
with Shift Actuator)” and confirm that DTC No. is not
displayed.
DTC Table
S5JB0E3314007
(A)
1
I5JB0A332012-01
1
2
I5JB0A332014-01
DTC No. Detecting item
Detecting condition
(DTC will set when detecting)
Transfer
position
indicators
) C1213 Transfer switch circuit open
Different switch combination from specification is
detected.
{
) C1214 Transfer switch circuit short
Different switch combination from specification is
detected.
{
) C1223
Transfer shift actuator motor
position switch 1 circuit open
Actuator position switch signal voltage 4.2 V or
more.
{
) C1224
Transfer shift actuator motor
position switch 1 circuit short
Actuator position switch signal voltage 0.6 V or
less.
{
) C1227 4L/N switch circuit open
Though actuator position switch is “4L-lock”
position, the ON signal is not input from the 4L/N
switch.
{
To Next Page
