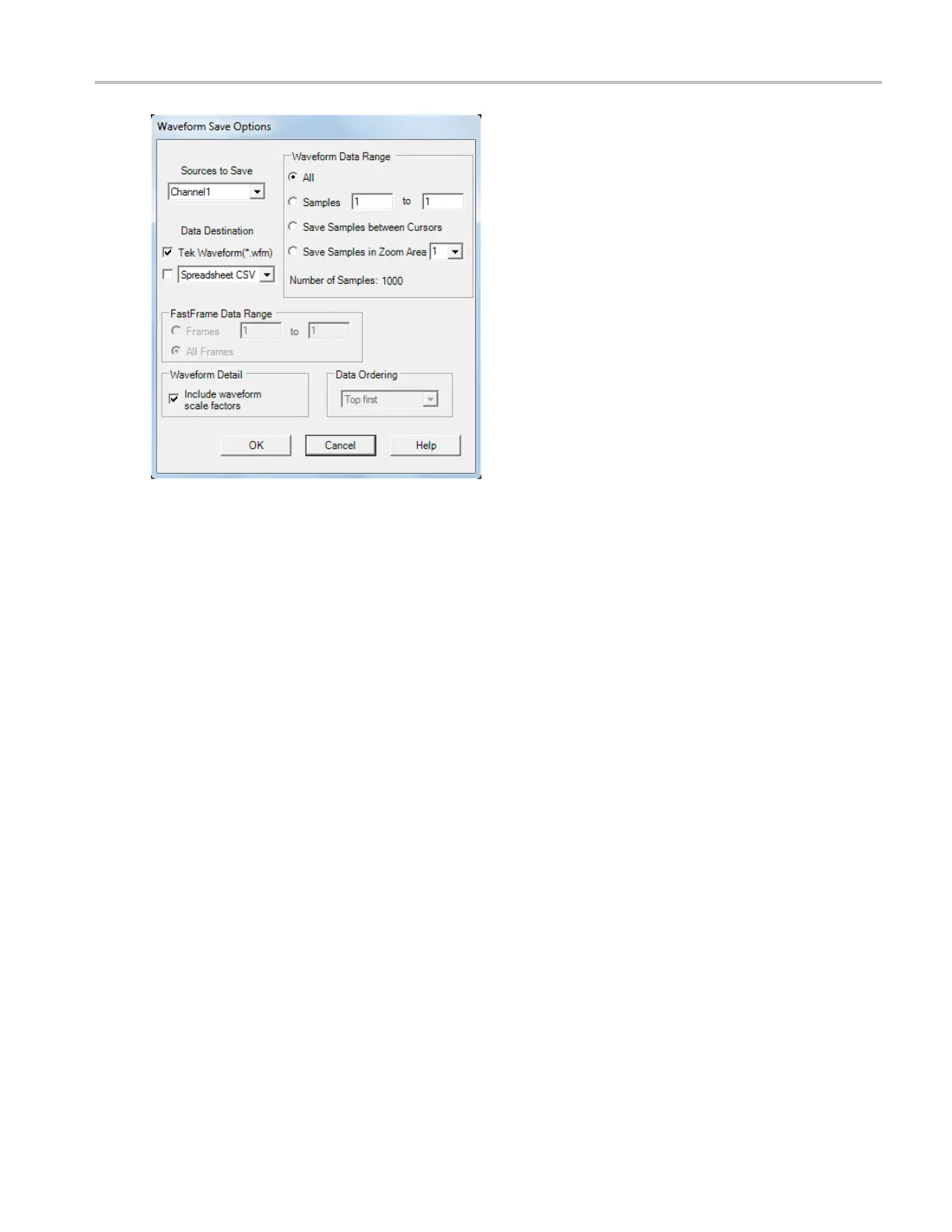

Oscilloscope Reference Select waveform save options
To use
1. Select the data format (Data Destination) for the waveform you want to save:
a. Select Spreadsheet (TXT) to include spreadsheet data separated by white space.
b. Select Spreadsheet (CSV) to include spreadsheet data separated by commas.
c. Select Mathcad or Matlab t o save the waveform in Mathcad o r Matlab format.
d. Select TekWaveform (*.wfm) to save the waveform in the TekScope waveform format.
2. Select a valid waveform from the Sources to Save list: Channel <1– 4>, Math <1–4>, Ref <1– 4>, All
Digital, All Analog, All Math, or All Displayed Sources.
3. Select the number of samples you want to save under Wave form Data Range:
a. Select a range of samples.
b. Select only the Samples between Cursors. If you select Samples between Cursors, y ou can use the
multipurpose knobs to adjust the positions if the cursors are already active. If they are not, the
cursors are activated in their most recent positions.
c. Select only Samples in Zoom Area.
d. Select All samples.
4. If the waveform is a FastFrame waveform, specify the FastFrame Data Range.
5. Click the Include waveform scale factors check box if you want to include waveform details like
header information (record length, sample interval, trigger point information, and s o on). If you only
want to include the waveform voltage values, clear the selection.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 883
