Surveillance VLAN
Surveillance VLAN Global Settings
Surveillance VLAN is a VLAN used to carry video traffic from surveillance devices. This window is used to configure
the surveillance VLAN global settings.
To view the following window, click L2 Features > VLAN > Surveillance VLAN > Surveillance VLAN Global
Settings, as shown below:

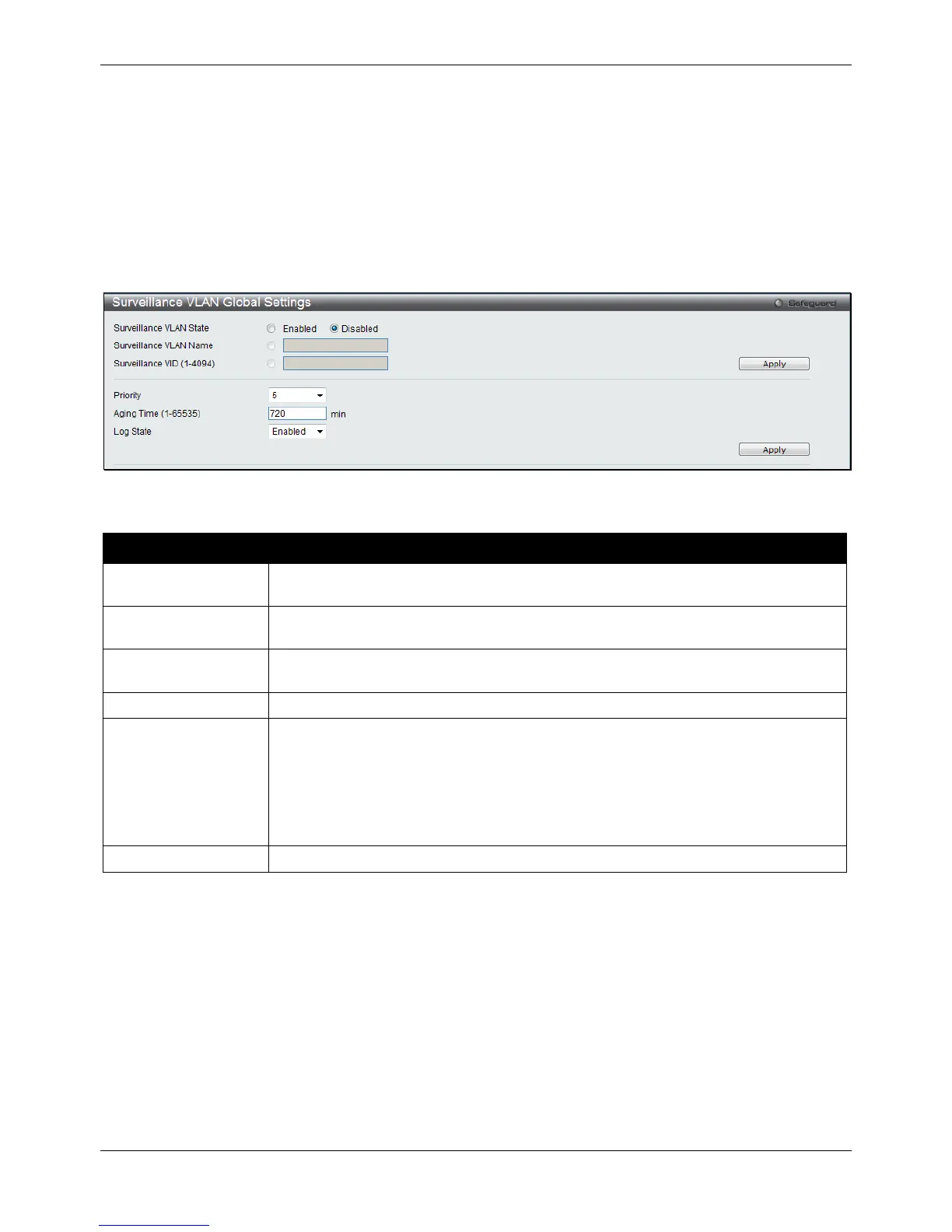

Figure 4-23 Surveillance VLAN Global Settings window
The fields that can be configured are described below:
Parameter Description
Surveillance VLAN
State
The state of the surveillance VLAN.
Surveillance VLAN
Name
The name of the surveillance VLAN.
Surveillance VID (1-
4094)
The VLAN ID of the surveillance VLAN.
Priority
The priority of the surveillance VLAN, the range is 0 – 7. The default priority is 5.
Aging Time (1-65535)
The aging time to set, the range is 1 – 65535 minutes. The default value is 720
minutes. The aging time is used to remove a port from surveillance VLAN if the port is
an automatic surveillance VLAN member. When the last surveillance device stops
sending traffic and the MAC address of this surveillance device is aged out, the
surveillance VLAN aging timer will be started. The port will be removed from the
surveillance VLAN after expiration of surveillance VLAN aging timer. If the surveillance
traffic resumes during the aging time, the aging timer will be reset and stop.
Log State
Used to enable/disable sending of issue of surveillance VLAN log.
Click the Apply button to accept the changes made for each individual section.
Surveillance VLAN Port Settings
This window is used to show the ports surveillance VLAN information.
To view the following window, click L2 Features > VLAN > Surveillance VLAN > Surveillance VLAN Port
Settings, as shown below:
