xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
124

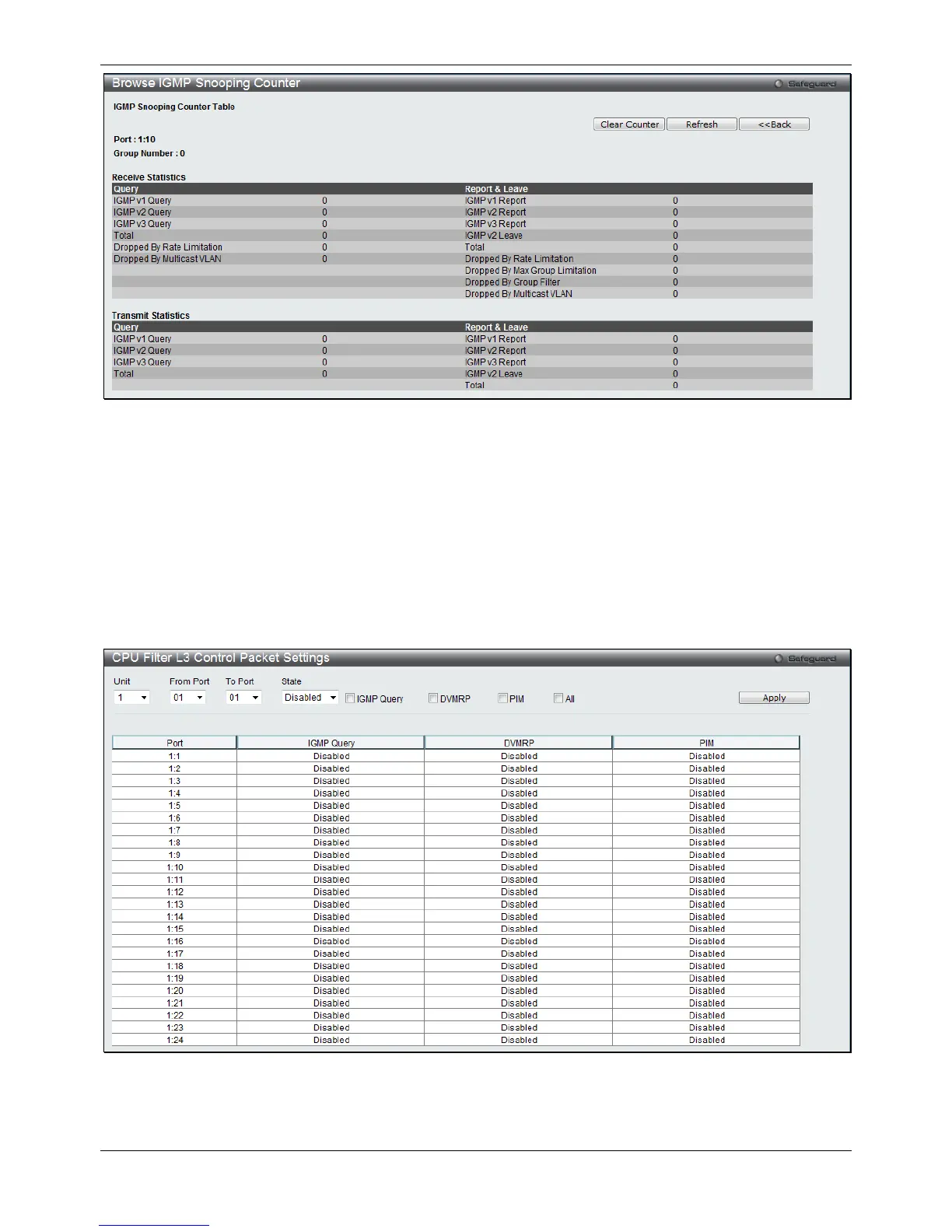

Figure 4-68 Browse IGMP Snooping Counter window
Click the Clear Counter button to clear all the information displayed in the fields.
Click the Refresh button to refresh the display table so that new information will appear.
Click the <<Back button to return to the previous page.
CPU Filter L3 Control Packet Settings
This window is used to discard and display Layer 3 control packets sent to the CPU from specific ports.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > CPU Filter L3
control Packet Settings, as shown below:
Figure 4-69 CPU Filter L3 Control Packet Settings window
The fields that can be configured are described below:
