xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
305

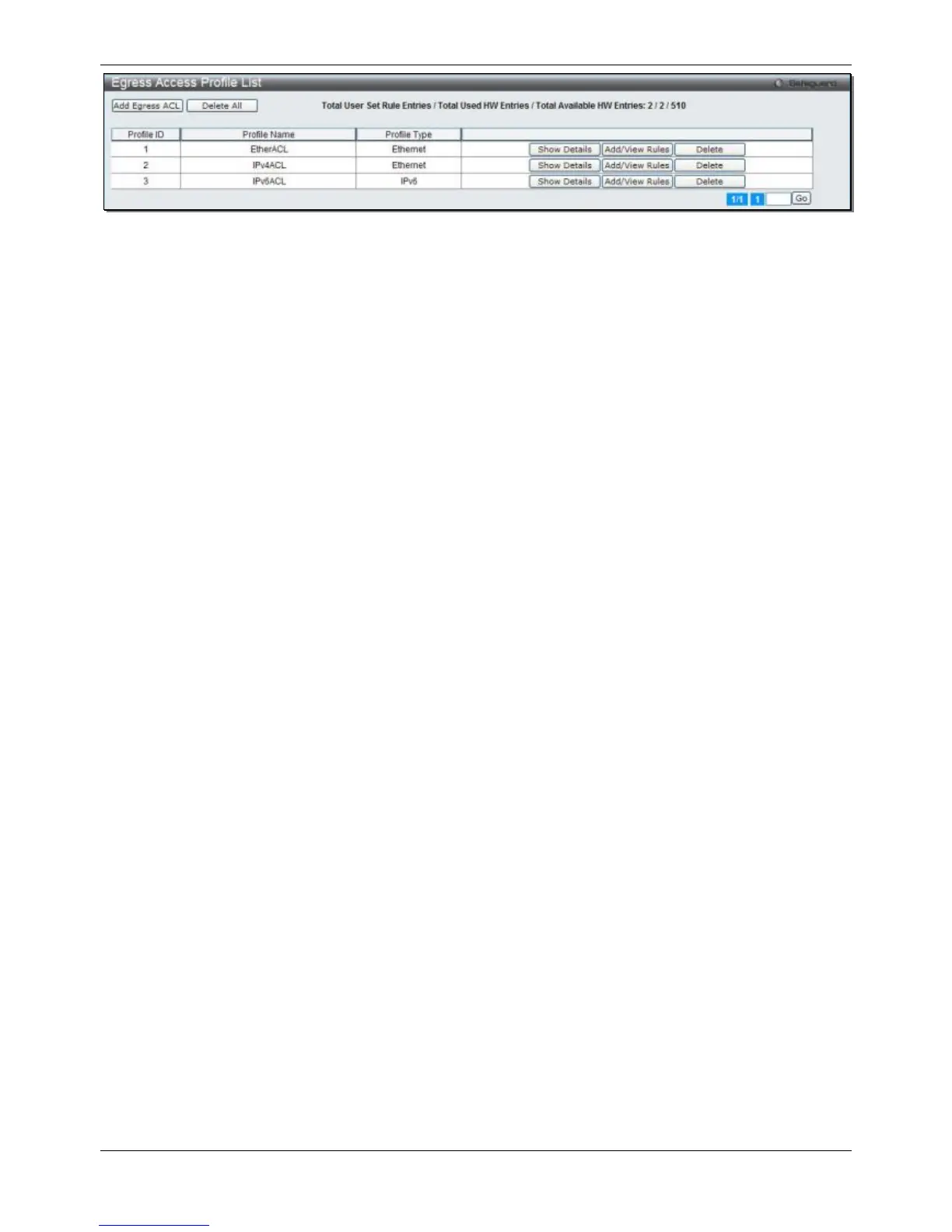

Figure 7-48 Egress Access Profile List window
Click the Add Egress ACL button to add an entry to the Egress Access Profile List.
Click the Delete All button to remove all access profiles from this table.
Click the Show Details button to display the information of the specific profile ID entry.
Click the Add/View Rules button to view or add Egress ACL rules within the specified profile ID.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
There are three Add Egress ACL windows;
• one for Ethernet profile configuration,
• one for IPv6 address-based profile configuration, and
• one for IPv4 address-based profile configuration.
Add an Ethernet ACL Profile
The window shown below is the Add Egress ACL Profile window for Ethernet. To use specific filtering masks in this
egress ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add Egress ACL button, the following window will appear:
