Click the Edit button to re-configure the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Edit button, the following window will appear:

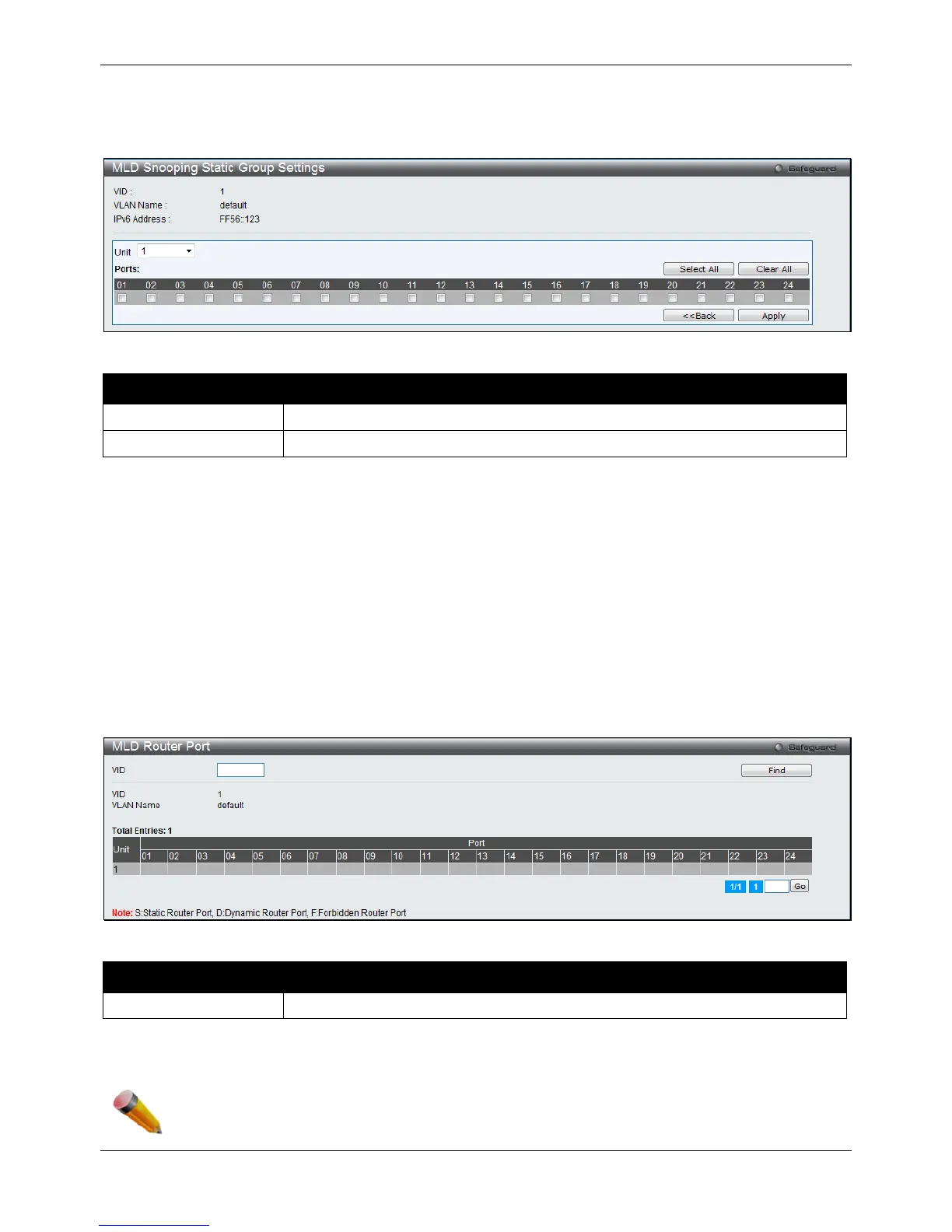

Figure 4-81 MLD Snooping Static Group Settings – Edit window
Parameter Description
Unit
Select the unit you want to configure. (EI and SI Mode Only)
Ports
Tick the check boxes to select the ports to be configured.
Click the Select All button to select all the ports for configuration.
Click the Clear All button to unselect all the ports for configuration.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
MLD Router Port
Users can display which of the Switch’s ports are currently configured as router ports in IPv6. A router port
configured by a user (using the console or Web-based management interfaces) is displayed as a static router port,
designated by S. A router port that is dynamically configured by the Switch is designated by D, while a Forbidden
port is designated by F.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Router Port, as
shown below:
Figure 4-82 MLD Router Port window
Parameter Description
VID
Enter a VLAN ID.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
NOTE: The abbreviations used in this window are Static Router Port (S), Dynamic Router Port (D)
and Forbidden Router Port (F).
