xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
99
Click the Apply button to accept the changes made for each individual section.
VLAN Translation Settings
This window is used to add translation relationship between C-VLAN and SP-VLAN. On ingress at UNI port, the C-
VLAN tagged packets will be translated to SP-VLAN tagged packets by adding or replacing according the
configured rule. On egress at this port, the SP-VLAN tag will be recovered to C-VLAN tag or be striped. The priority
will be the priority in the SP-VLAN tag if the inner priority flag is disabled for the receipt port.
To view the following window, click L2 Features > QinQ > VLAN Translation Settings, as shown below:

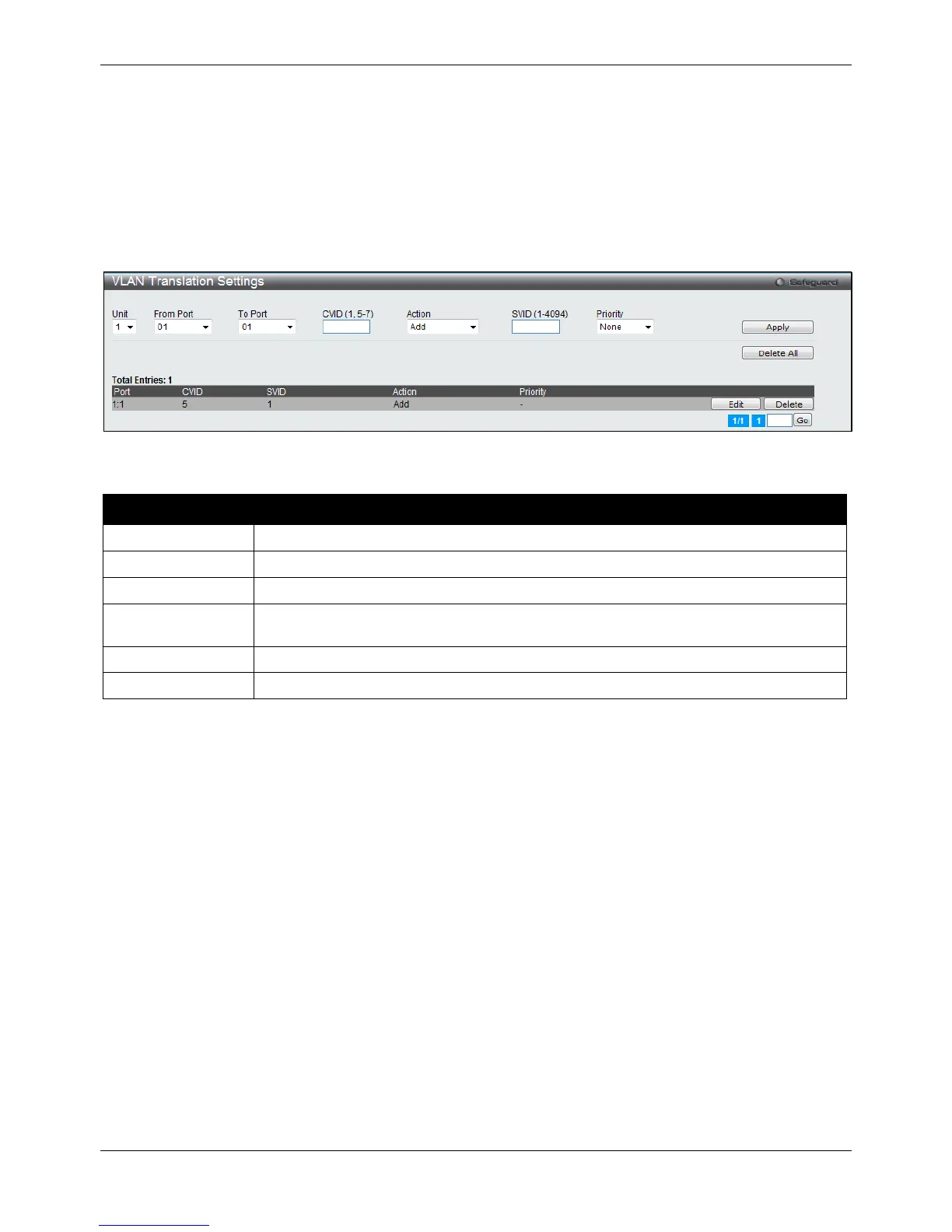

Figure 4-33 VLAN Translation Settings Window
The fields that can be configured are described below:
Parameter Description
Unit
Specify the unit ID to be configured. (EI Mode Only)
From Port / To Port
Use the drop-down menus to select a range of ports to use in the configuration.
CVID (1, 5-7)
Enter the C-VLAN ID to match.
Action
The action indicates to add an S-tag before a C-tag or to replace the original C-tag by an
S-tag.
SVID (1-4094)
Enter the SP-VLAN ID.
Priority
Use the drop-down menu to select the priority of the s-tag.
Click the Apply button to accept the changes made for each individual section.
Click the Delete All button to remove all the entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove a specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Layer 2 Protocol Tunneling Settings
This window is used to configure Layer 2 protocol tunneling settings.
To view the following window, click L2 Features > Layer 2 Protocol tunneling Settings, as shown below:
