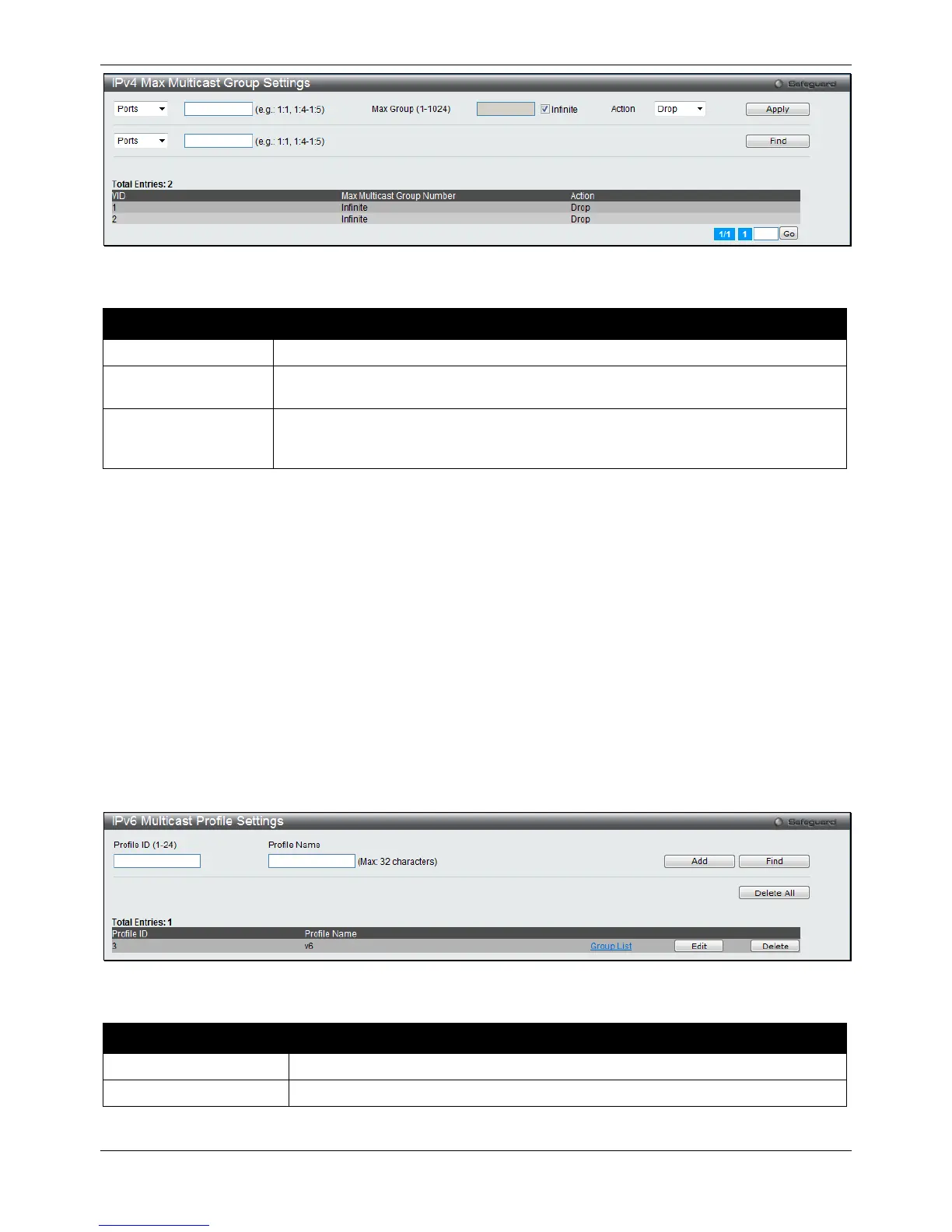

Figure 4-101 IPv4 Max Multicast Group Settings window
The fields that can be configured are described below:
Parameter Description
Ports / VID List
Select the appropriate port(s) or VLAN IDs used for the configuration here.
Max Group (1-1024) If the checkbox Infinite is not selected, the user can enter a Max Group value.Tick
the Infinite check box to enable the use of the Infinite value.
Action
Use the drop-down menu to select the appropriate action for this rule. The user can
select Drop to initiate the drop action or the user can select Replace to initiate the
replace action.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
IPv6 Multicast Filtering
Users can add a profile to which multicast address(s) reports are to be received on specified ports on the Switch.
This function will therefore limit the number of reports received and the number of multicast groups configured on
the Switch. The user may set an IPv6 Multicast address or range of IPv6 Multicast addresses to accept reports
(Permit) or deny reports (Deny) coming into the specified switch ports.
IPv6 Multicast Profile Settings
Users can add, delete, and configure the IPv6 multicast profile in this window.
To view the following window, click L2 Features > Multicast Filtering > IPv6 Multicast Filtering > IPv6 Multicast
Profile Settings, as shown below:
Figure 4-102 IPv4 Multicast Profile Settings window
The fields that can be configured are described below:
Parameter Description
Profile ID (1-24)
Enter a Profile ID between 1 and 24.
Profile Name
Enter a name for the IP Multicast Profile.
Click the Add button to add a new entry based on the information entered.
