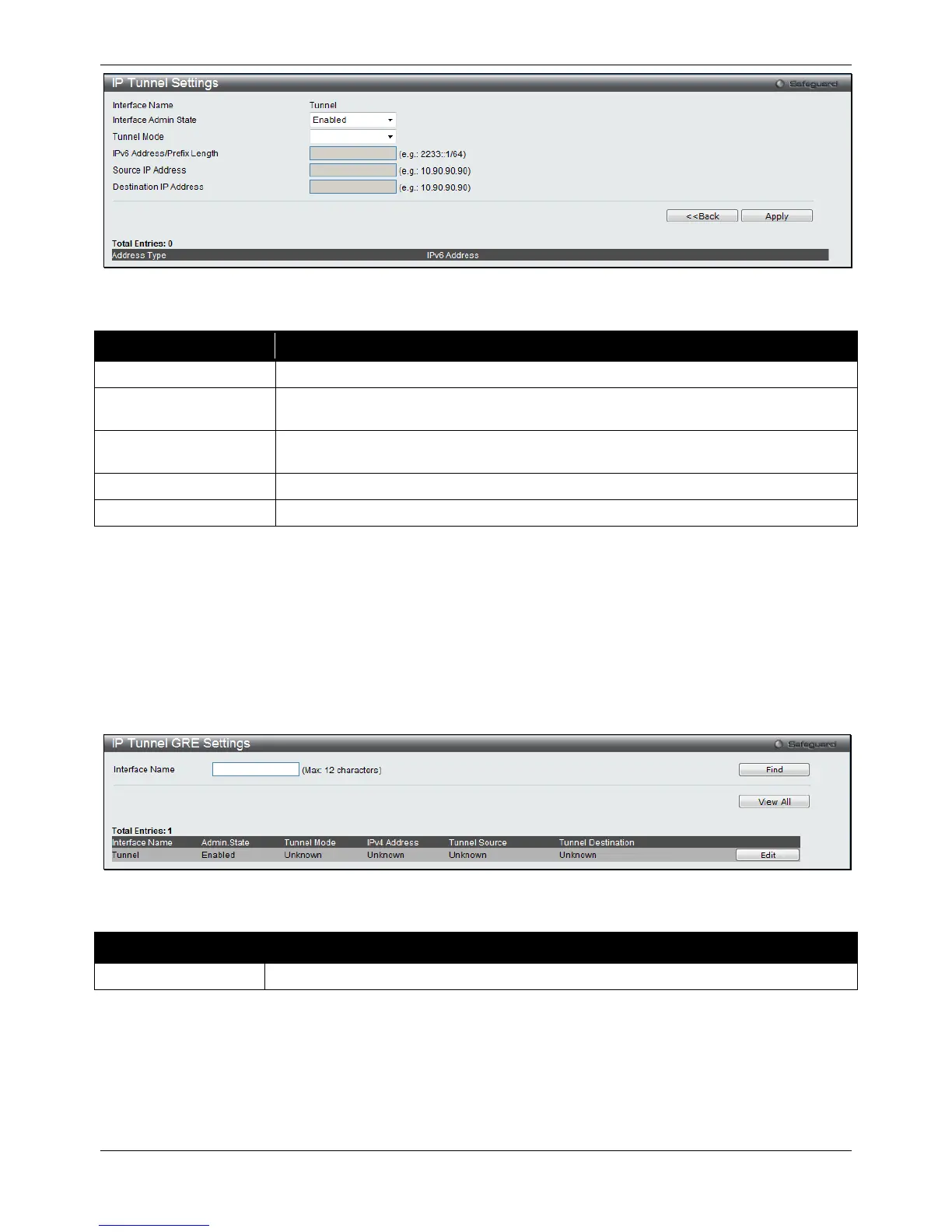

Figure 5-25 IP Tunnel Settings – Edit window
The fields that can be configured are described below:
Parameter Description
Use the drop-down menu to enable or disable the interface admin state.
Tunnel Mode Use the drop-down menu to select the tunnel modes. Available selections are Manual,
Enter the IPv6 network address.
Enter the source IP address.
Enter the destination IP address.
Click the <<Back button to return to the previous window.
Click the Apply button to accept the changes made for each individual section.
IP Tunnel GRE Settings
This window is used to configure an existing tunnel as a GRE tunnel on the Switch. If this tunnel has been
configured in another mode before, the tunnel’s information will still exist in the database. However, whether the
tunnel’s former information is valid or not, it depends on the current mode.
To view the following window, click L3 Features > IP Tunnel > IP Tunnel GRE Settings, as shown below:
Figure 5-26 IP Tunnel GRE Settings window
The fields that can be configured are described below:
Parameter Description
Enter the IP tunnel interface name.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Edit button to re-configure the specific entry.
Click the Edit button to see the following window.
