Parameter Description
MAC Address Aging
Time (10-1000000)
This field specify the length of time a learned MAC Address will remain in the
forwarding table without being accessed (that is, how long a learned MAC Address
is allowed to remain idle). To change this option, type in a different value
representing the MAC address’ age-out time in seconds. The MAC Address Aging
Time can be set to any value between 10 and 1000000 seconds. The default
setting is 300 seconds.
Click the Apply button to accept the changes made.
MAC Address Table
This allows the Switch's MAC address forwarding table to be viewed. When the Switch learns an association
between a MAC address, VLAN and a port number, it makes an entry into its forwarding table. These entries are
then used to forward packets through the Switch.
To view the following window, click L2 Features > FDB > MAC Address Table, as shown below:

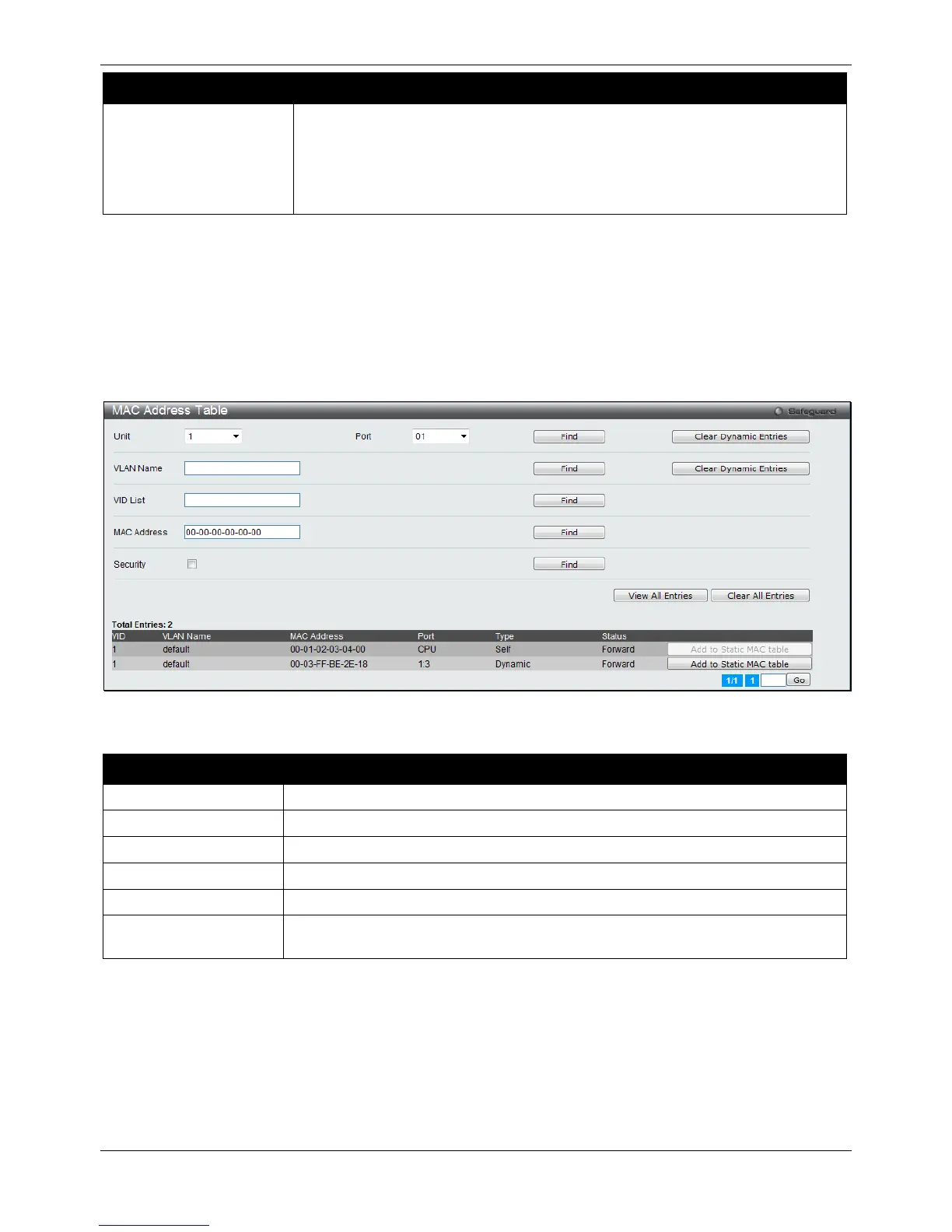

Figure 4-47 MAC Address Table window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure. (EI and SI Mode Only)
Port
The port to which the MAC address below corresponds.
VLAN Name
Enter a VLAN Name for the forwarding table to be browsed by.
VID List
Enter a list of VLAN IDs for the forwarding table to be browsed by.
MAC Address
Enter a MAC address for the forwarding table to be browsed by.
Security
Tick the check box to display the FDB entries that are created by the security
module.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear Dynamic Entries button to delete all dynamic entries of the address table.
Click the View All Entries button to display all the existing entries.
Click the Clear All Entries button to remove all the dynamic entries listed in the table.
Click the Add to Static MAC table button to add the specific entry to the Static MAC table.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
