Switch. The user may set an IP Multicast address or range of IP Multicast addresses to accept reports (Permit) or
deny reports (Deny) coming into the specified switch ports.
To view the following window, click L2 Features > L2 Multicast Control > Multicast VLAN > IGMP Multicast
Group Profile Settings, as shown below:

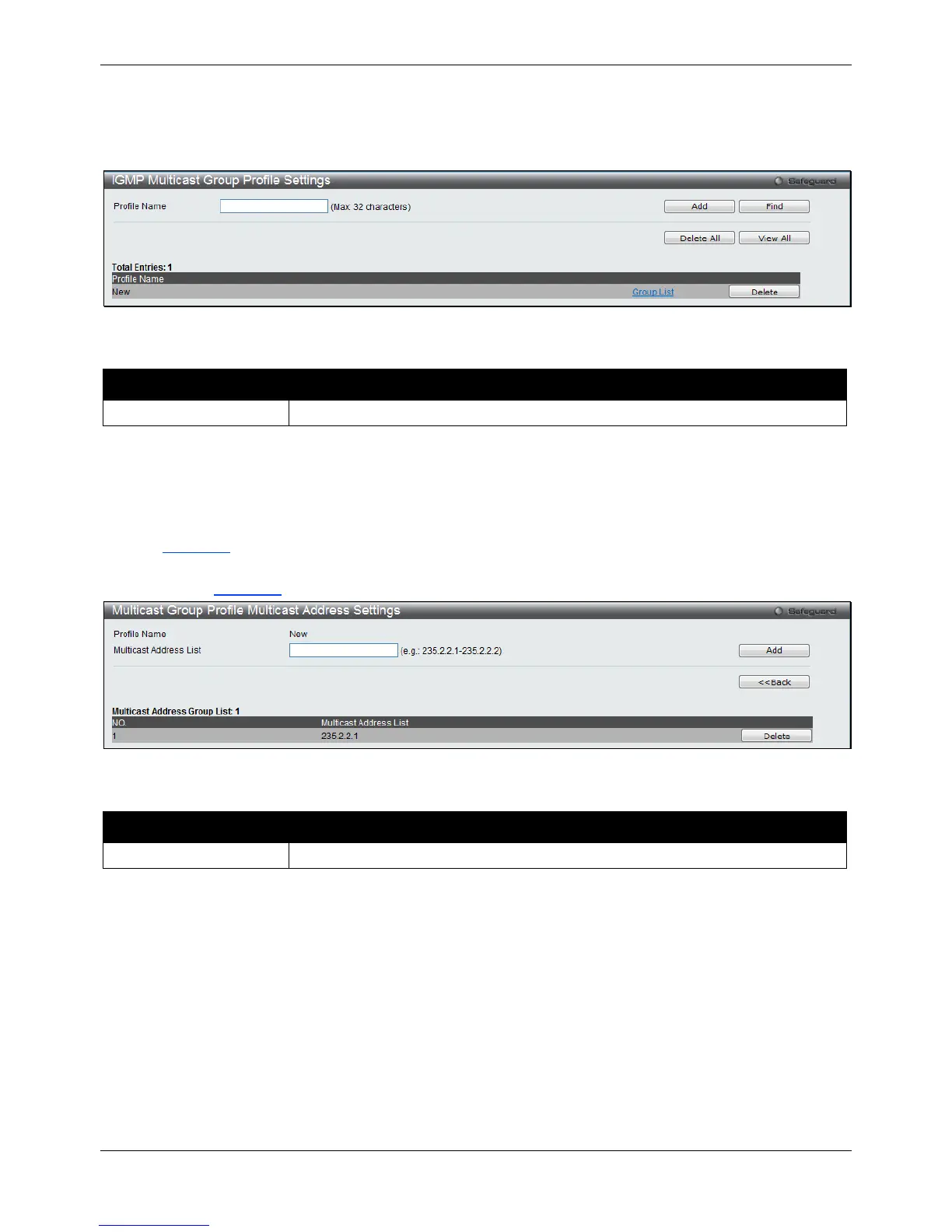

Figure 4-88 IGMP Multicast Group Profile Settings window
The fields that can be configured are described below:
Parameter Description
Profile Name
Enter a name for the IP Multicast Profile.
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the View All button to display all the existing entries.
Click the Delete button to remove the corresponding entry.
Click the Group List link to configure the Multicast Group Profile Address Settings for the specific entry.
After clicking the Group List link, the following window will appear:
Figure 4-89 Multicast Group Profile Multicast Address Settings window
The fields that can be configured are described below:
Parameter Description
Multicast Address List
Enter the multicast address list value.
Click the Add button to add a new entry based on the information entered.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Delete button to remove the corresponding entry.
IGMP Snooping Multicast VLAN Settings
This window is used to configure the IGMP snooping multicast VLAN parameters.
To view the following window, click L2 Features > L2 Multicast Control > Multicast VLAN > IGMP Snooping
Multicast VLAN Settings, as shown below:
