xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
453
Parameter Description
Unit
Select the unit you want to configure. (EI and SI Mode Only)
Port
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default value
is 200.
64
The total number of packets (including bad packets) received that were 64 octets in
length (excluding framing bits but including FCS octets).
65-127
The total number of packets (including bad packets) received that were between 65
and 127 octets in length inclusive (excluding framing bits but including FCS octets).
128-255
The total number of packets (including bad packets) received that were between 128
and 255 octets in length inclusive (excluding framing bits but including FCS octets).
256-511
The total number of packets (including bad packets) received that were between 256
and 511 octets in length inclusive (excluding framing bits but including FCS octets).
512-1023
The total number of packets (including bad packets) received that were between 512
and 1023 octets in length inclusive (excluding framing bits but including FCS octets).
1024-1518
The total number of packets (including bad packets) received that were between 1024
and 1518 octets in length inclusive (excluding framing bits but including FCS octets).
Show/Hide
Check whether or not to display 64, 65-127, 128-255, 256-511, 512-1023, and 1024-
1518 packets received.
Click the Apply button to accept the changes made for each individual section.
Click the Clear button to clear all statistics counters in this window.
Click the View Table link to display the information in a table rather than a line graph.
Click the View Graphic link to display the information in a line graph rather than a table.
VLAN Counter Statistics (RI and EI Mode Only)
This window is used to clear and find VLAN counter statistics.
To view this window, click Monitoring > Statistics > VLAN Counter Statistics as shown below:

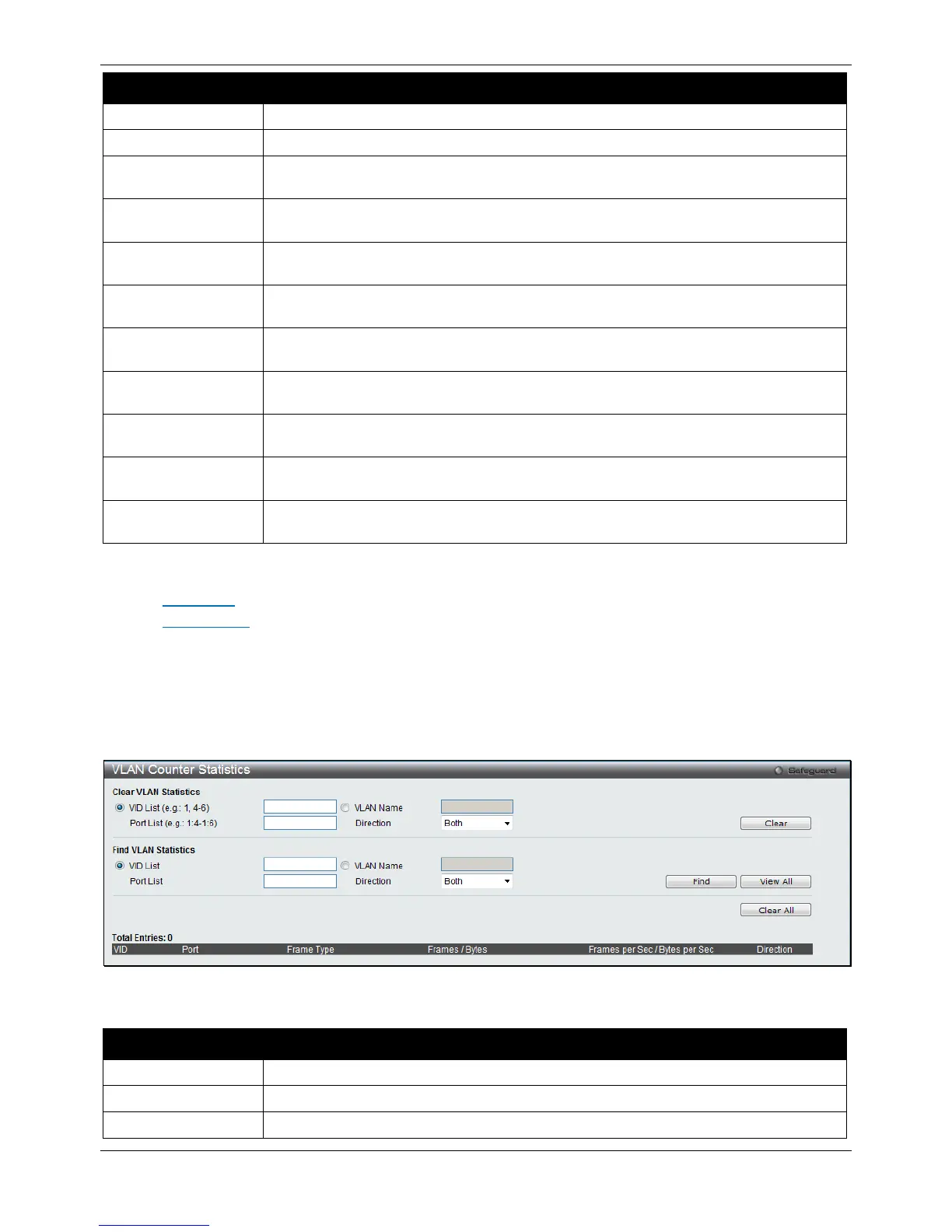

Figure 11-16 VLAN Counter Statistics window
The fields that can be configured or displayed are described below:
Parameter Description
VID List
Click and enter a list of VLAN ID.
VLAN Name
Click and enter the VLAN name.
Port List
Enter a list of ports to be cleared or displayed.
