xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
455
RSPAN Settings
This window controls the RSPAN function. The purpose of the RSPAN function is to mirror packets to a remote
switch. A packet travels from the switch where the monitored packet is received, passing through the intermediate
switch, and then to the switch where the sniffer is attached. The first switch is also named the source switch.
To make the RSPAN function work, the RSPAN VLAN source setting must be configured on the source switch. For
the intermediate and the last switch, the RSPAN VLAN redirect setting must be configured.
NOTE: RSPAN VLAN mirroring will only work when RSPAN is enabled (when one RSPAN VLAN has
been configured with a source port). The RSPAN redirect function will work when RSPAN is
enabled and at least one RSPAN VLAN has been configured with redirect ports.
To view this window, click Monitoring > Mirror > RSPAN Settings as shown below:

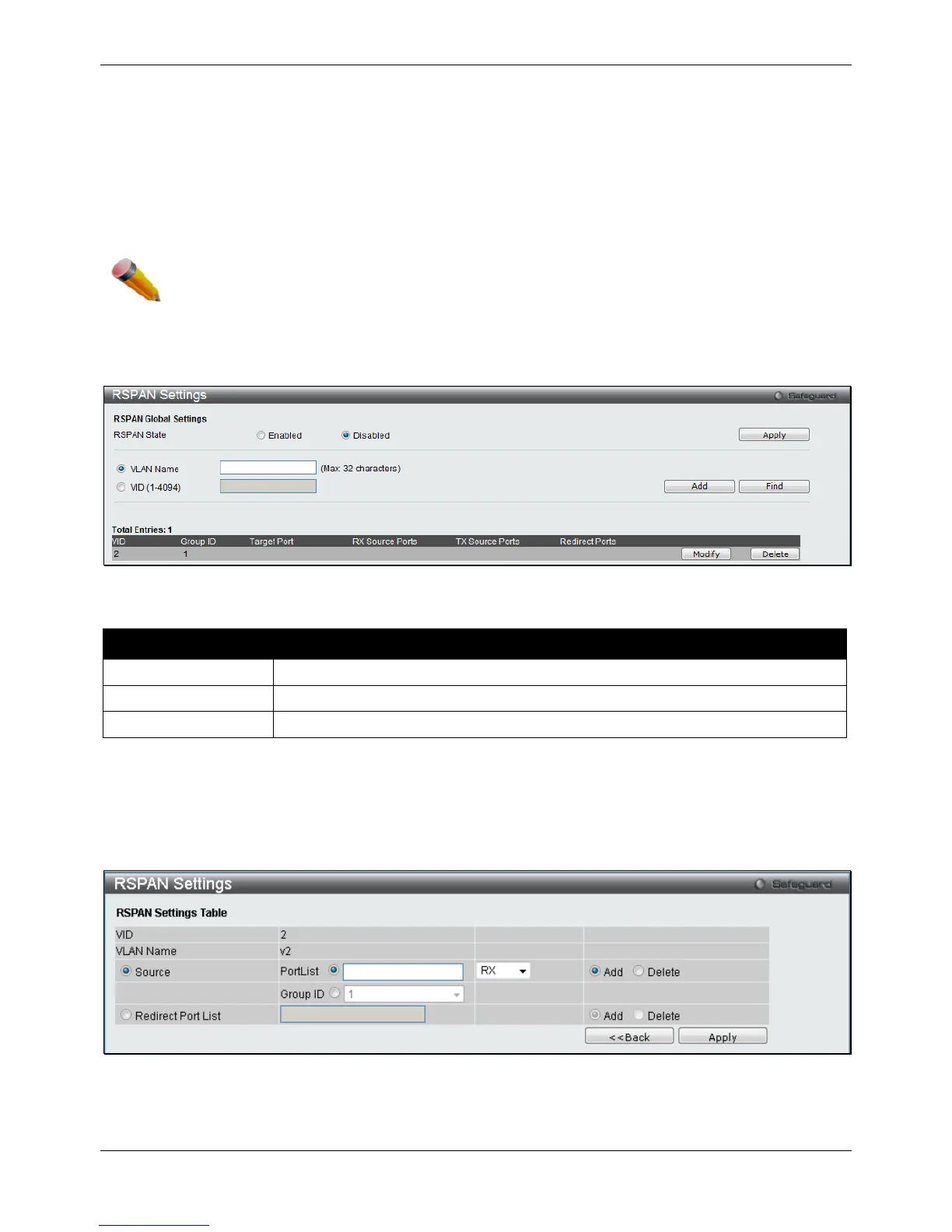

Figure 11-19 RSPAN Settings window
The fields that can be configured are described below:
Parameter Description
RSPAN State
Click the radio buttons to enable or disable the RSPAN feature.
VLAN Name
Create the RSPAN VLAN by VLAN name.
VID (1-4094)
Create the RSPAN VLAN by VLAN ID.
Click the Apply button to accept the changes made.
Click the Add button to add a new entry based on the information entered.
Click the Modify button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
After clicking the Modify button, the following window will appear:
Figure 11-20 RSPAN Settings – Modify window
The fields that can be configured are described below:
