D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
329

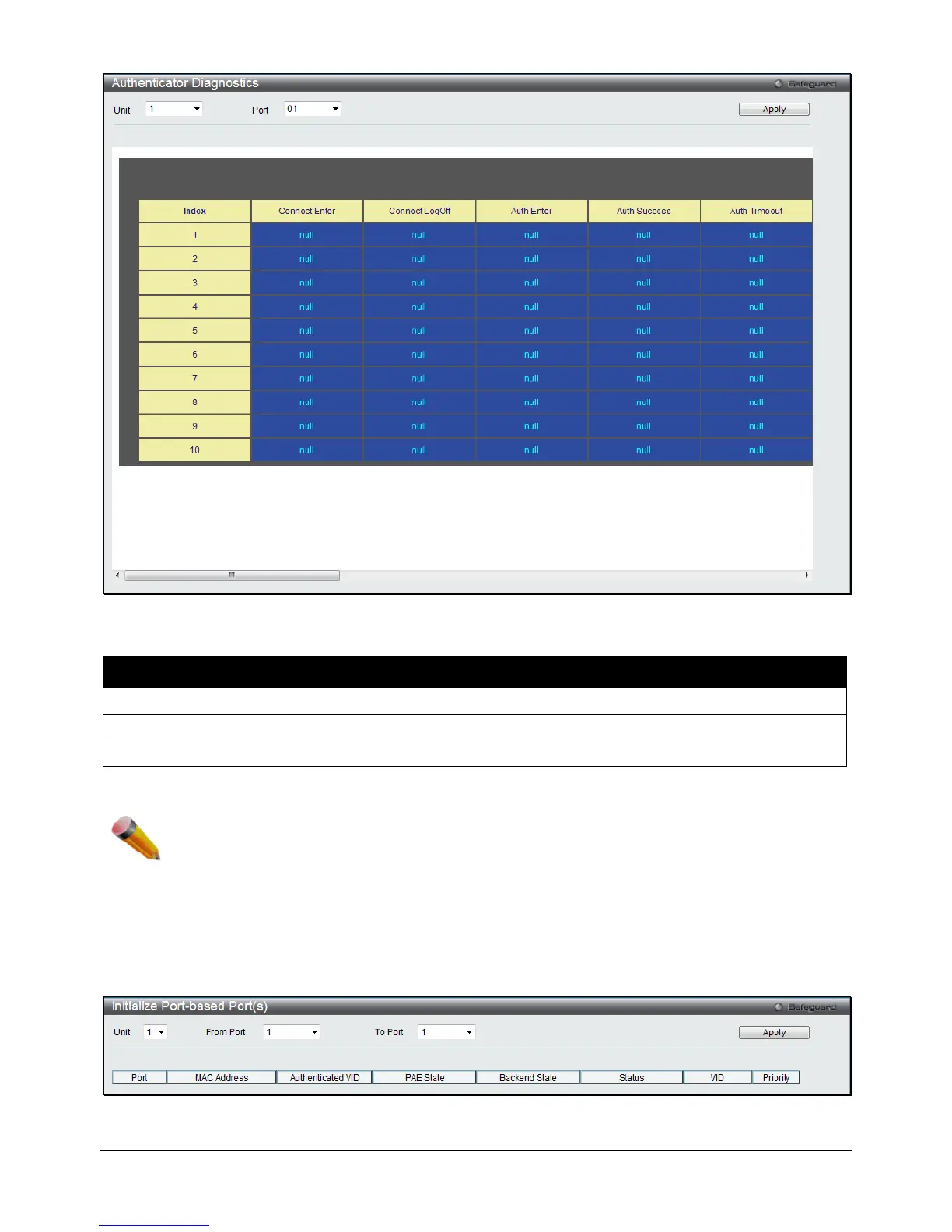

Figure 8-17 Authenticator Diagnostics window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit to be displayed. (EI and SI Mode Only)
Port
Select a port to be displayed.
Time Interval
Use the drop-down menu to select the interval to update the statistics.
Click the Apply button to accept the changes made.
NOTE: The user must first globally enable Authentication Mode in the 802.1X Global Settings
window before initializing ports. Information in this window cannot be viewed before enabling
the authentication mode for either Port-based or MAC-based.
Initialize Port-based Port(s)
This window is used to display the authenticator diagnostics information.
To view this window, click Security > 802.1X > Initialize Port-based Port(s) as shown below:
Figure 8-18 Initialize Port-based Port(s) window
