xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
172
Protocol
Use the drop-down menu to select the protocol.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Static Multicast Route Settings (RI Mode Only)
This window is used to create a static multicast route. When a static multicast route entry is created, if the source
IP address of the received IP multicast packet matches this static multicast route entry, the entry will be used to
RPF check.
To view the following window, click L3 Features > Static Multicast Route Settings, as shown below:

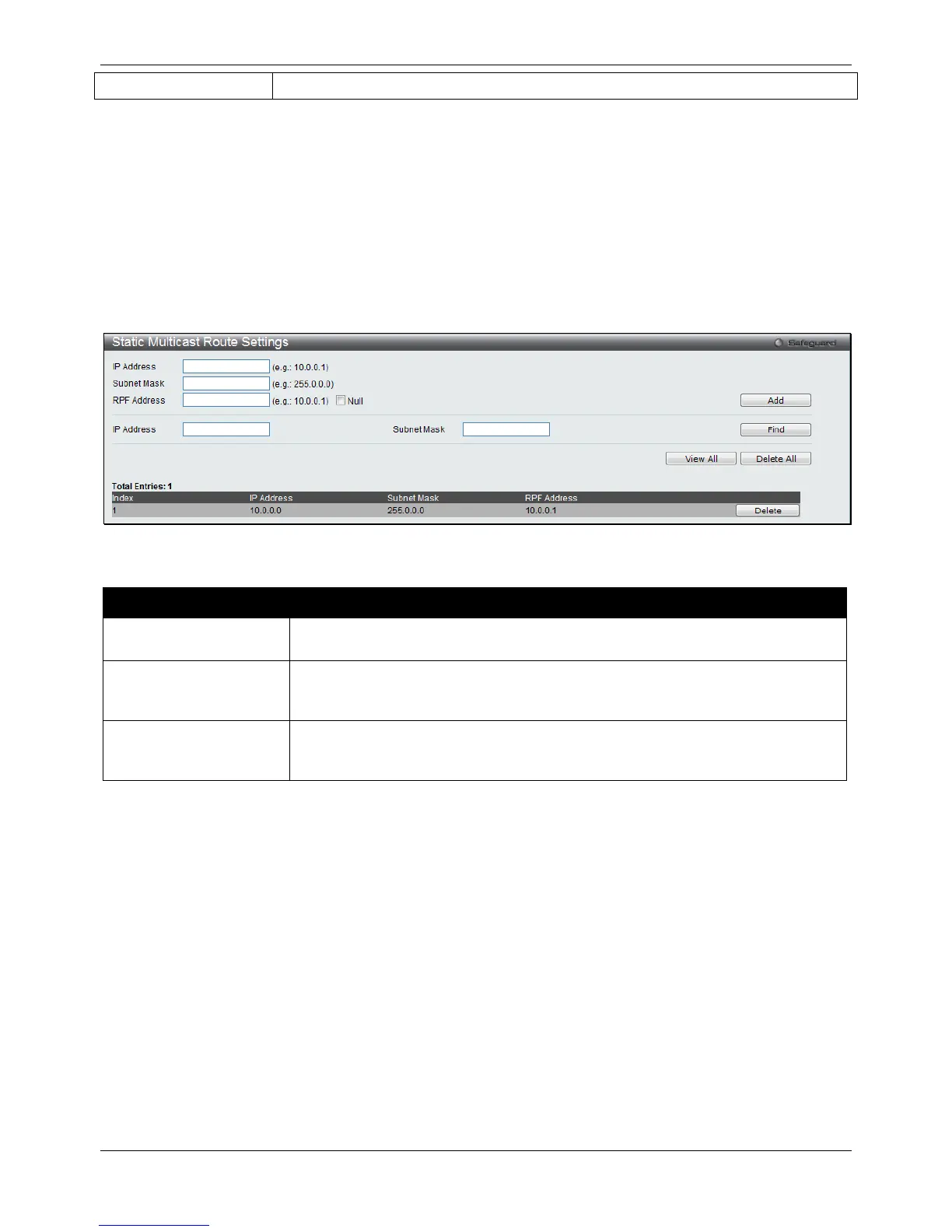

Figure 5-19 Static Multicast Route Settings window
The fields that can be configured are described below:
Parameter Description
IP Address
Enter the source IP address of the received IP multicast packet matches this
network, the RPF address is used to do RPF check.
Subnet Mask
Enter the subnet mask of the above specified IP address. If the source IP address
of the received IP multicast packet matches the IP address and subnet mask, RPF
address will be used to check whether packets are received from legal interface.
RPF Address
Enter the RPF address. If the source IP address of the received IP multicast packet
matches the IP address and subnet mask, RPF address will be used to check
whether packets are received from legal interface.
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Delete All button to remove all the entries listed.
Click the Delete button to remove the specific entry.
Route Preference Settings (RI Mode Only)
This window is used to configure the route preference settings for this Switch.
To view the following window, click L3 Features > Route Preference Settings, as shown below:
