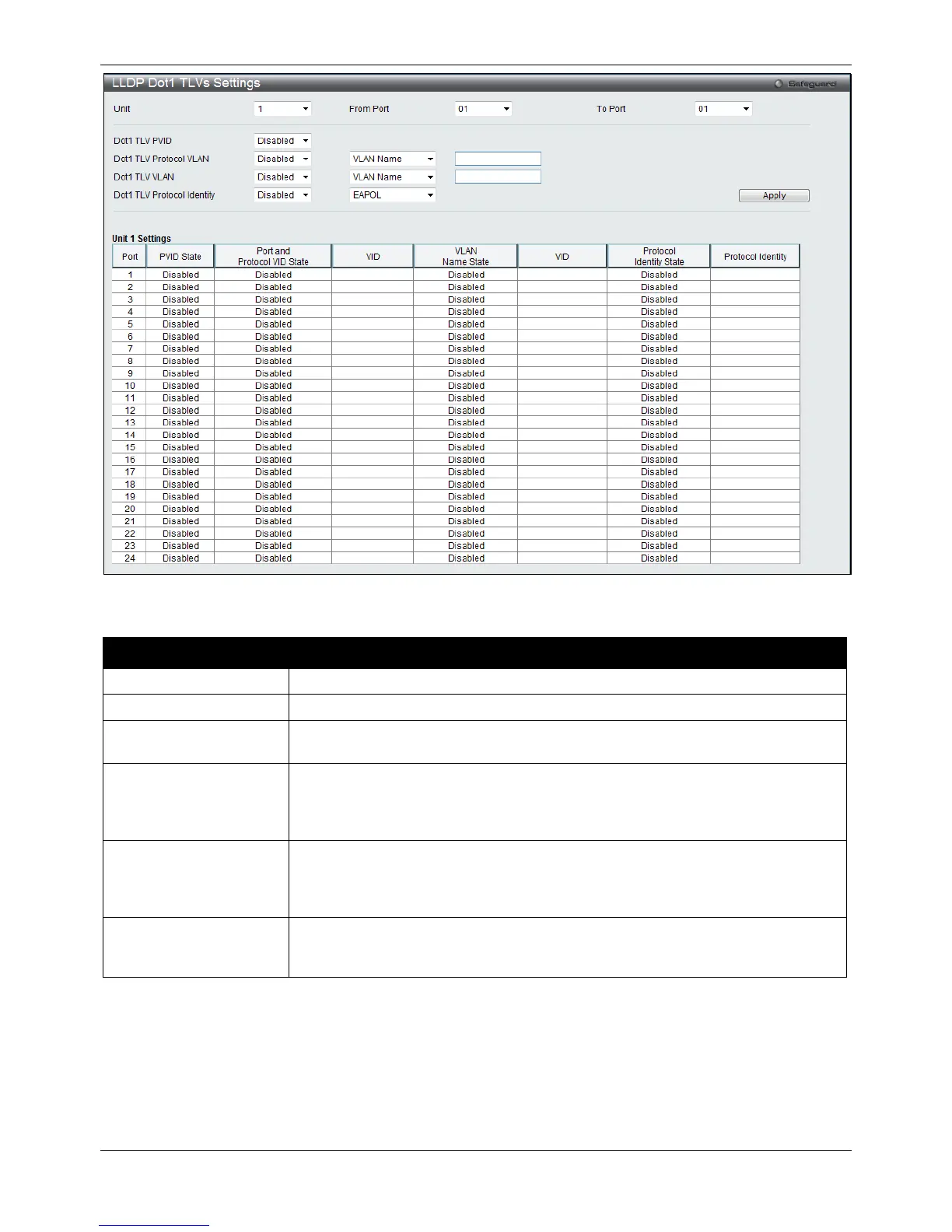

Figure 4-115 LLDP Dot1 TLVs Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure. (EI and SI Mode Only)
From Port / To Port
Use the drop-down menu to select the port range to use for this configuration.
Dot1 TLV PVID
Use the drop-down menu to enable or disable and configure the Dot1 TLV PVID
option.
Dot1 TLV Protocol
VLAN
Use the drop-down menu to enable or disable, and configure the Dot1 TLV Protocol
VLAN option. After this option is enabled, the user can select to use VLAN Name,
VLAN ID or All in the next drop-down menu. After selecting this, the user can enter
either the VLAN name or VLAN ID value in the space provided.
Dot1 TLV VLAN
Use the drop-down menu to enable or disable, and configure the Dot1 TLV VLAN
option. After this option is enabled, the user can select to use VLAN Name, VLAN
ID or All in the next drop-down menu. After selecting this, the user can enter either
the VLAN name or VLAN ID value in the space provided.
Dot1 TLV Protocol
Identity
Use the drop-down menu to enable or disable, and configure the Dot1 TLV Protocol
Identity option. After enabling this option the user can select to either use EAPOL,
LACP, GVRP, STP, or All.
Click the Apply button to accept the changes made.
LLDP Dot3 TLVs Settings
This window is used to configure an individual port or group of ports to exclude one or more IEEE 802.3
organizational specific TLV data type from outbound LLDP advertisements.
To view the following window, click L2 Features > LLDP > LLDP > LLDP Dot3 TLVs Settings, as shown below:
