Step 5 Connect the ECC800-Pro power cable to the rPDU.
----End
3.10.6 Installing a LAN Switch
Context
The LAN switch needs to be installed in the front of the end IT cabinet, as shown
in Figure 3-60.
Procedure
Step 1 Locate the LAN switch installation position in the IT cabinet, and install guide rails
and
oating nuts.
Step 2 Install the mounting ears delivered with the LAN switch and secure the LAN
switch to the mounting bars in the front of the cabinet.
This section describes only the installation method. The actual product appearance may vary.

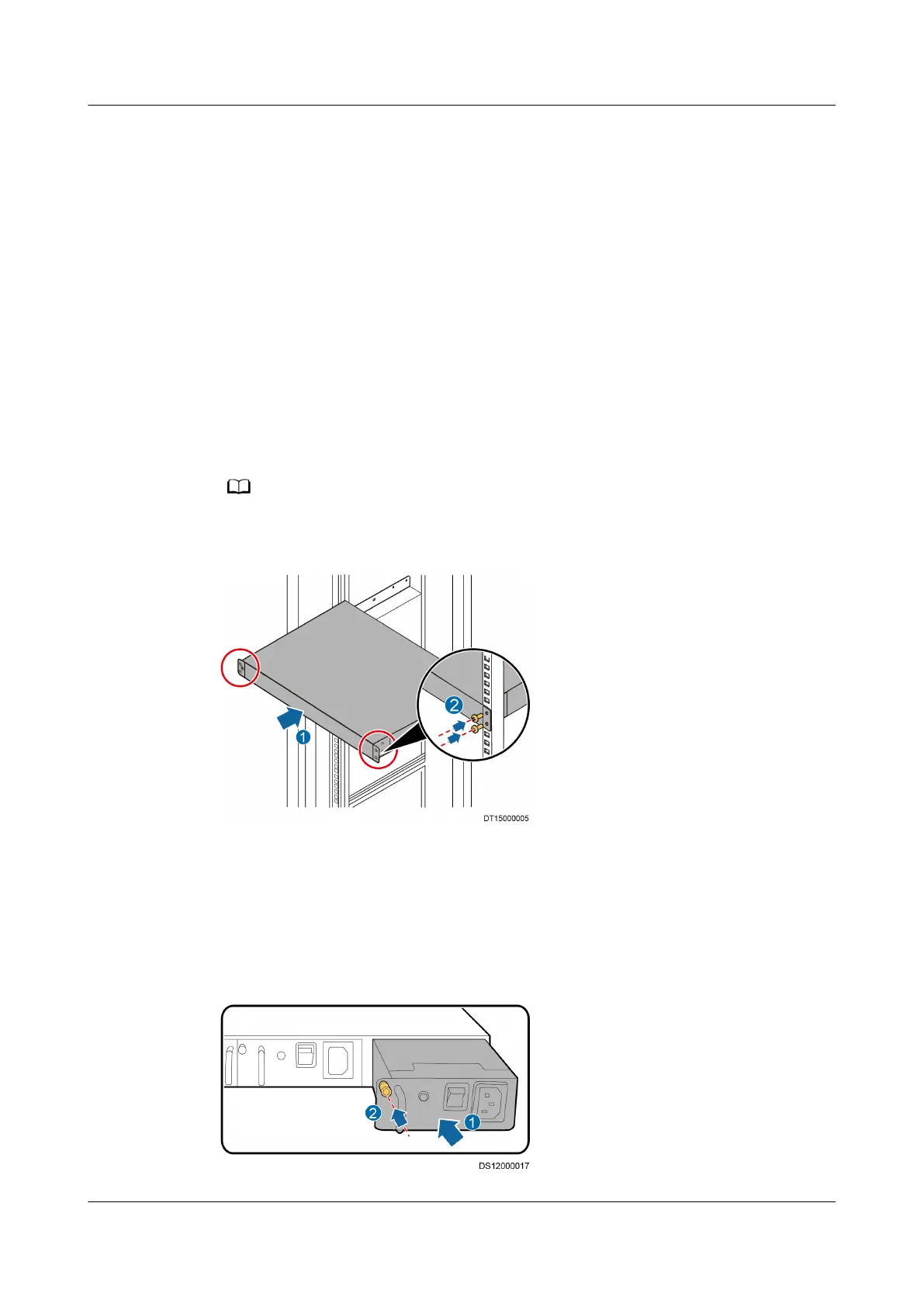

Figure 3-65 Installing a LAN switch
Step 3 Connect the LAN switch power cable to the rPDU.
Step 4 Connect any port among the 1–24 ports of the LAN switch to the WAN1 port on
the ECC800-Pro using a network cable.
Step 5 Insert a power module into the power slot of the 24-port LAN switch and tighten
the captive screws on the power module panel.
Figure 3-66 Installing a power module for a 24-port LAN switch
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 90
