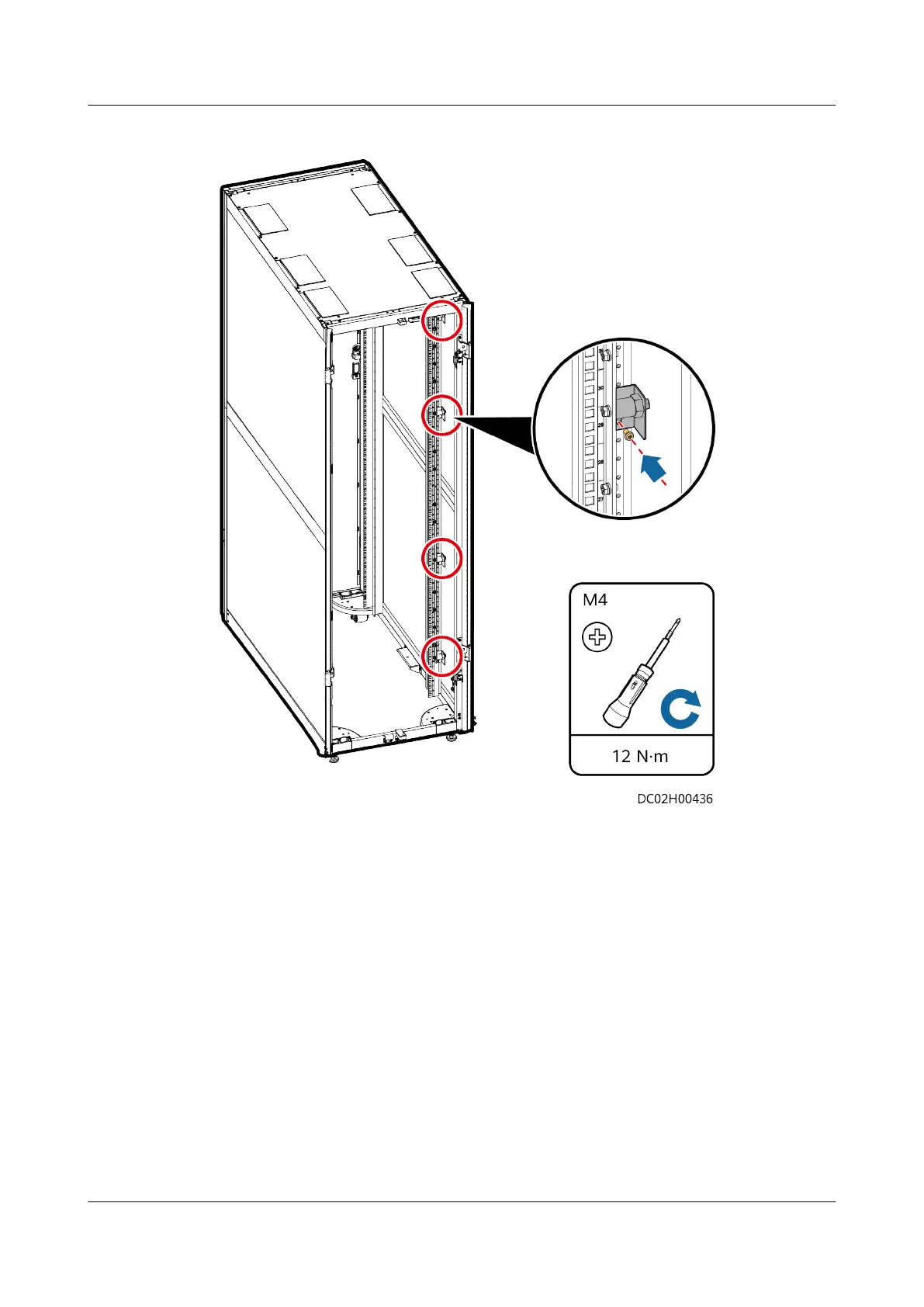

Figure 3-24 Installing a vertical ground bar
----End
3.5.2 (Optional) Installing a PDF Tail Frame
The depth of the PDF and integrated UPS is 1100 mm. A tail frame needs to be
added at the rear to expand the depth to 1350 mm.
Procedure
Step 1 Remove the rear door and original beam from the cabinet.
Step 2 Align the enclosure frame with the holes in the cabinet.
Step 3 Use four M5x10 tapping screws to secure it at the front holes on the top of the
cabinet. The following
gure shows the installation positions.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 57
