7.2 Preparing a Monitoring Cable
Prerequisites
● Network cables, cord end terminals, and RJ45 connectors are prepared.
● The following tools are prepared:
– Wire stripper
– Crimping tool
– RJ45 crimping tool
– Electrician's knife
– Insulation tape
Preparing a cord end terminal
Figure 7-3 shows how to prepare a cord end terminal.
1. Strip the insulation layer of cable B to expose cable core C.
2. Put cable core C through cord end terminal A.
3. Crimp the metal part of cord end terminal A using a crimping tool.

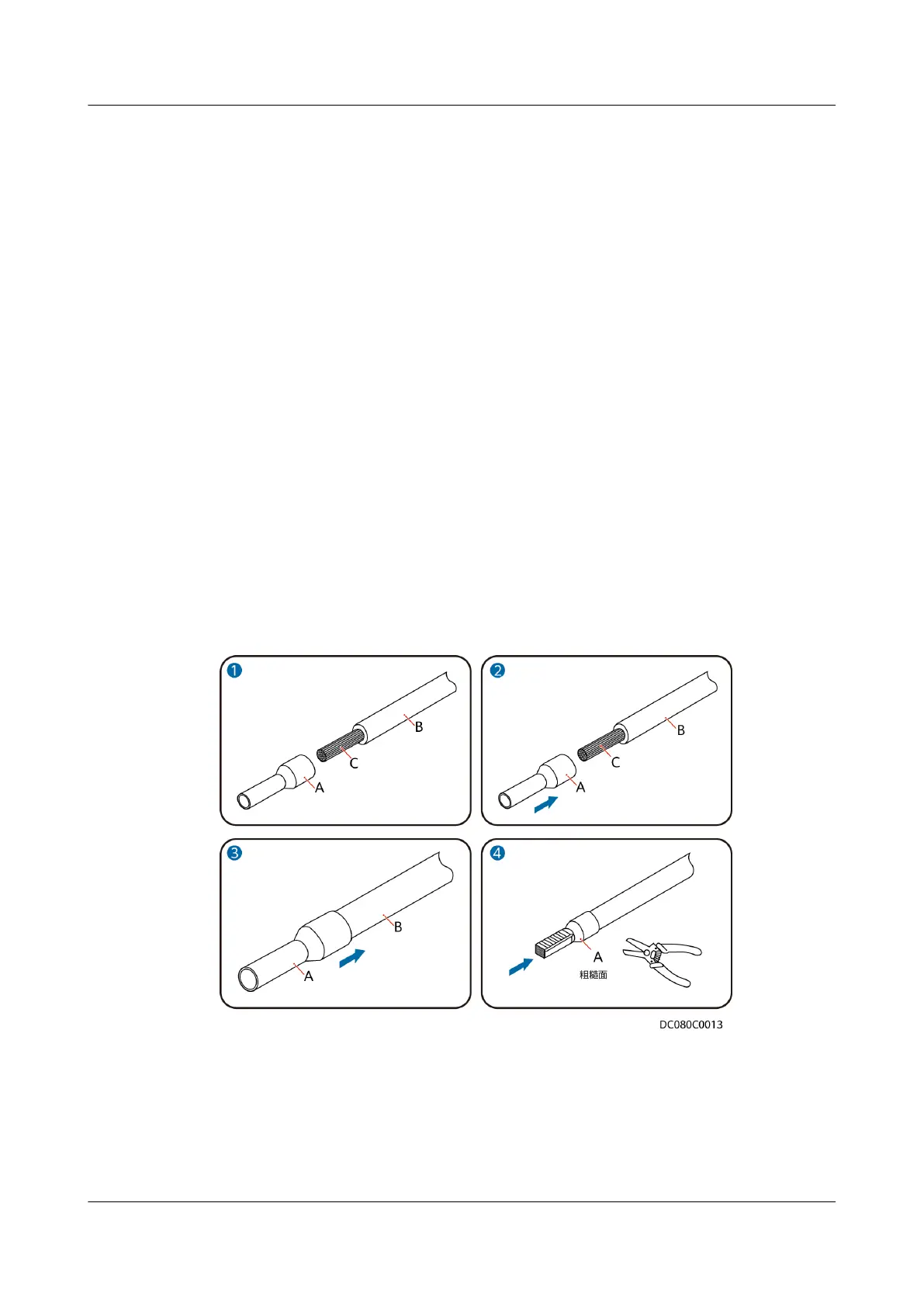

Figure 7-3 Preparing a cord end terminal
(A) Cord end terminal
connector
(B) Insulation layer (C) Copper core wire
Preparing an RS485 Monitoring Cable
Figure 7-4 shows how to prepare an RS485 monitoring cable for the ECC collector.
