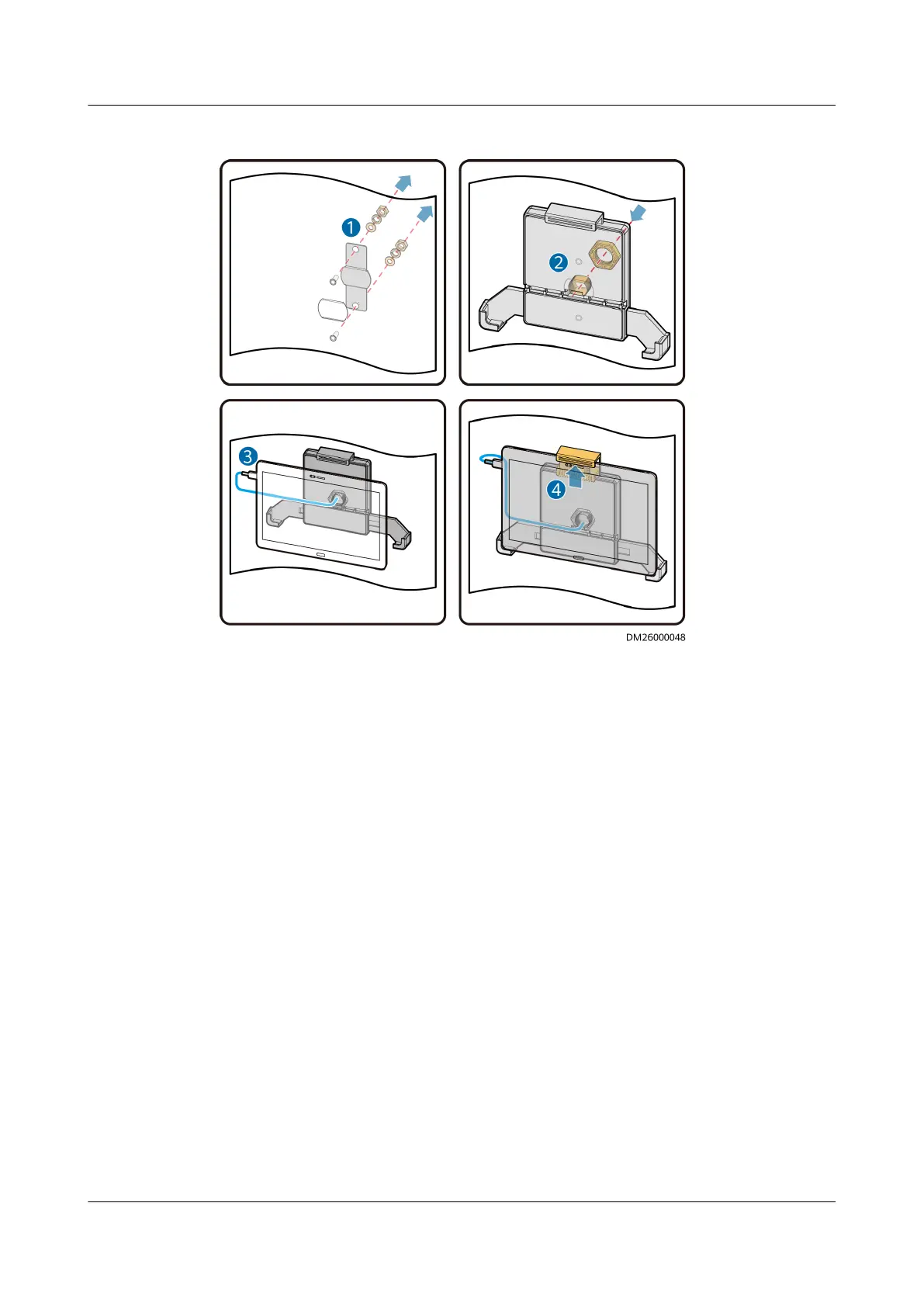

Figure 3-58 Installing a PAD
----End
3.10.4 Securing the PAD Mounting Kit
Preparations
Tool: Phillips screwdriver
Material: PAD mounting kit
Procedure
Step 1 Use three M5x10 tapping screws to secure the PAD mounting kit on the upper
part of the end cabinet of the smart module, as shown in the following
gure.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 86
