● |L1–L2| ≤ 5 mm, |L3–L4| ≤ 5 mm

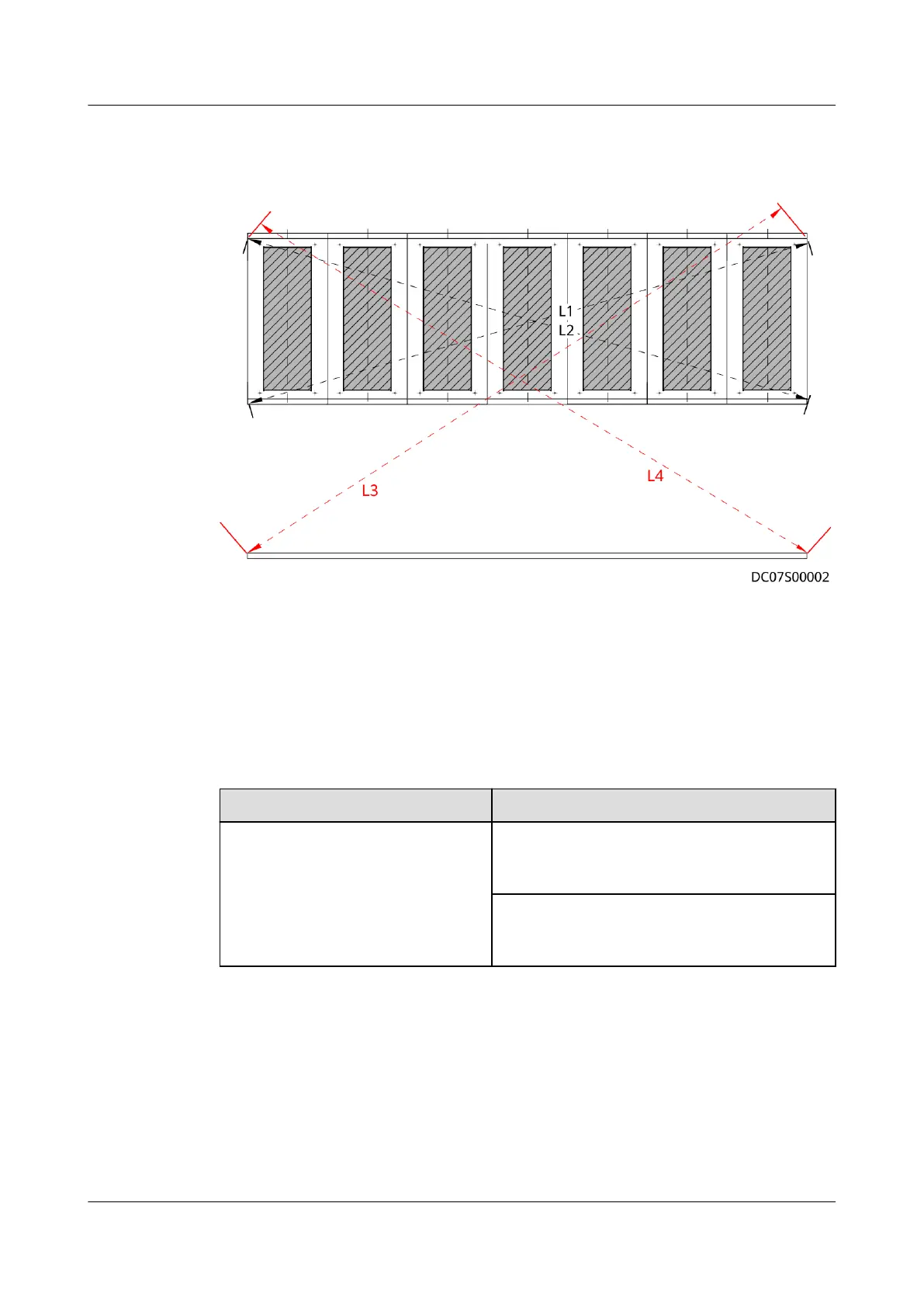

Figure 3-5 Single-row base layout (unit: mm)
3.2.2 Installing Bases with Adjustable Dimensions
Context
Adjustable bases apply to PDFs, battery cabinets, IT cabinets, and smart cooling
product cabinets.
Table 3-1 Specications of bases with adjustable dimensions
Type
Dimensions
600 mm wide base Height (adjustable): 270–410 mm; depth
(adjustable): 1000 mm, 1100 mm, 1200
mm, or 1350 mm
Height (adjustable): 410–700 mm; depth
(adjustable): 1000 mm, 1100 mm, 1200
mm, or 1350 mm
Preparations
Tools: ruler, marker, torque wrench, Phillips screwdriver, square, hammer drill, φ16
drill bit, level
Materials: base and accessories, expansion bolt, base connecting plate, washer,
oor holder
Document: base installation position diagram
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 42
