Huawei FusionModule2000-S User Manual

NO TE
● If the number of IT cabinets on both sides of the smart cooling product is the same,
preferentially deploy the sensors on the left cabinet.
● If the number of IT cabinets on both sides of the smart cooling product is dierent,
evenly deploy the sensors based on the actual situation of cabinets.

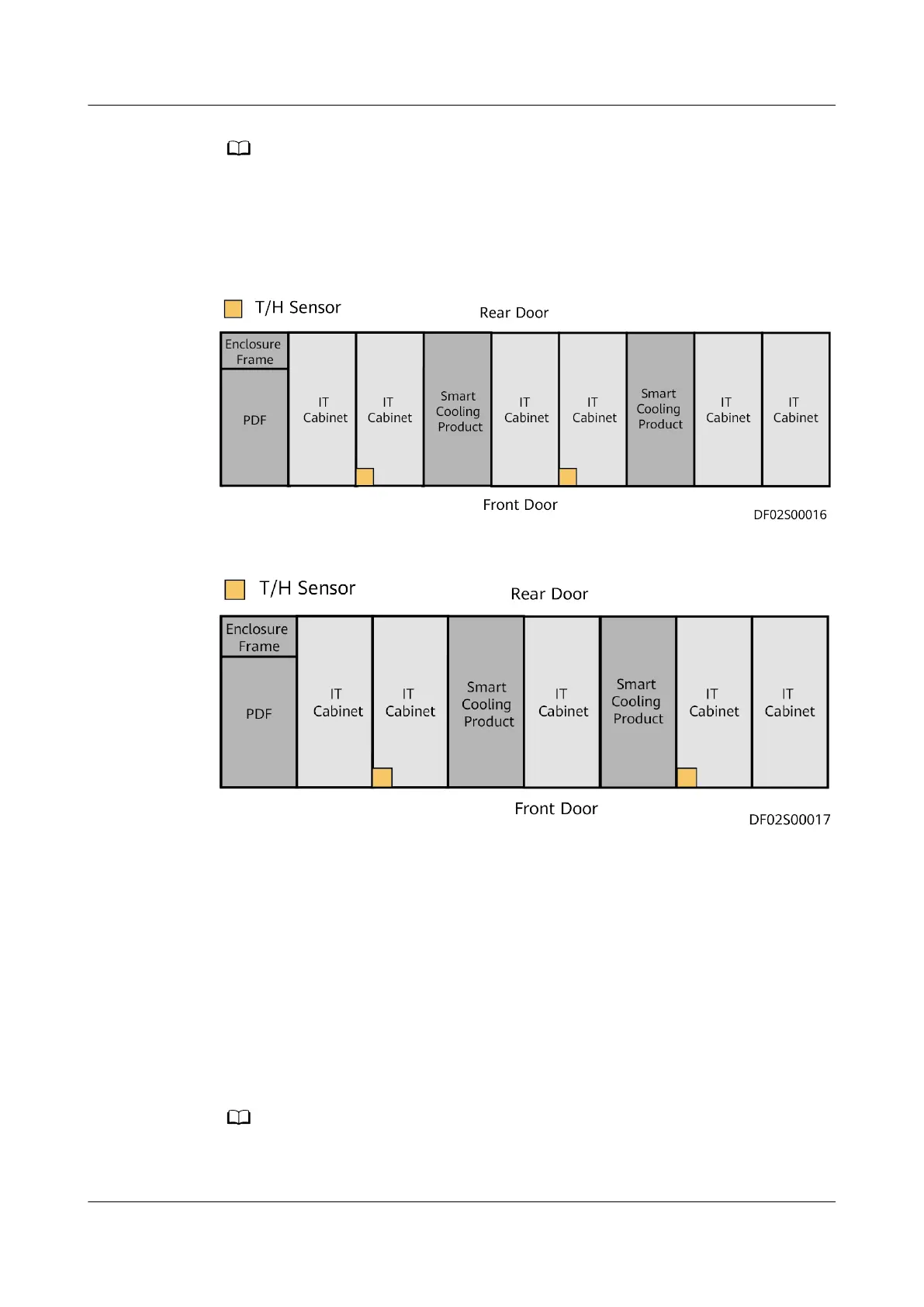

Figure 3-101 Scenario with the same number of cabinets
Figure 3-102 Scenario with dierent numbers of cabinets
----End
3.10.12.2 Installing T/H Sensors (33010516)
Context
T/H sensor
conguration depends on the number of smart cooling products.
Procedure
Step 1 Attach the bottom of the T/H sensor to the 33 U position on the IT cabinet door
frame.
NO TE
The T/H sensor can be installed between the 33 U and 40 U positions based on site
requirements.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 109
