LAN Switch Networking Scenario
If there are multiple IVS1800s for multiple smart modules, you are advised to
evenly distribute the cameras to each IVS1800.

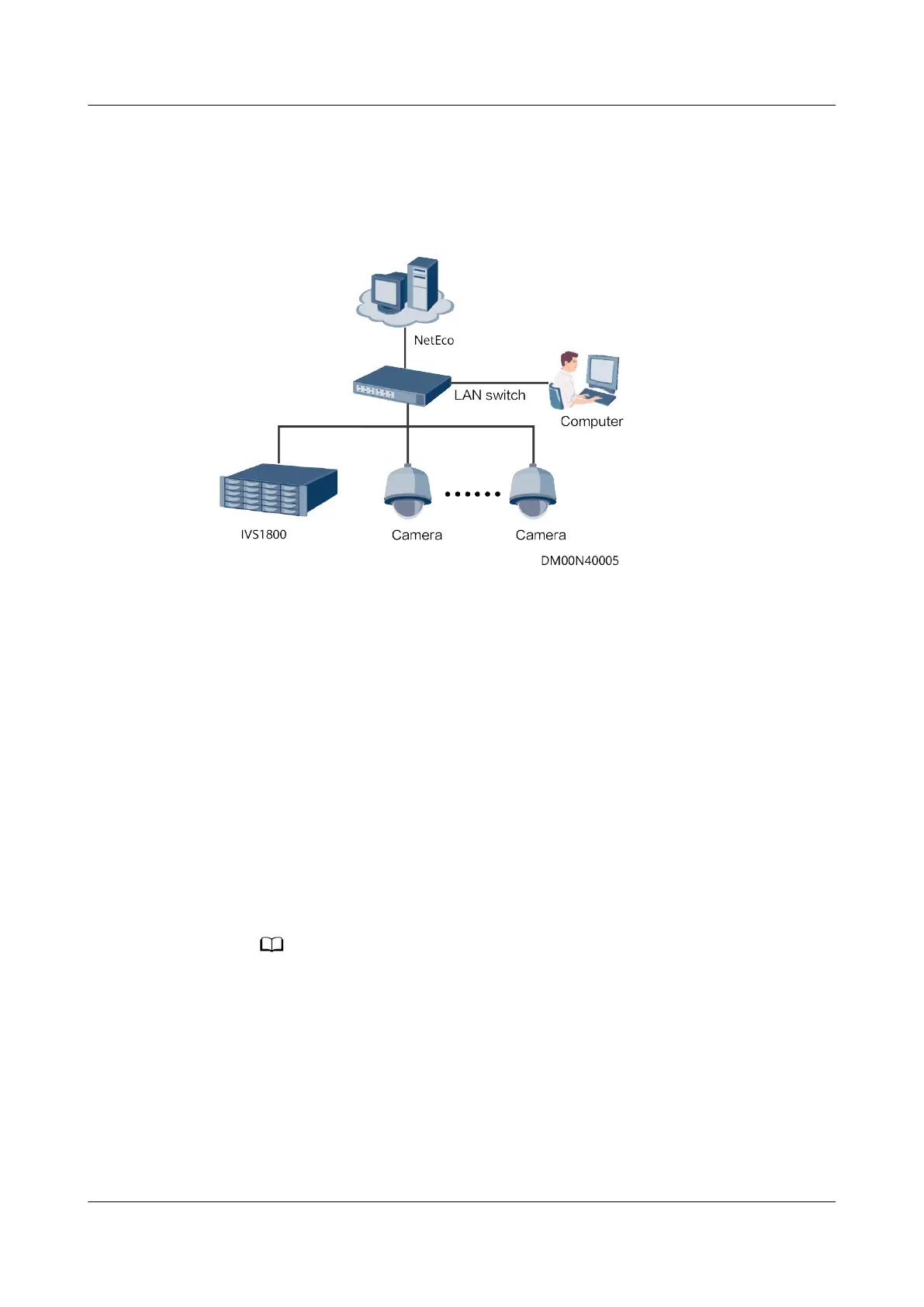

Figure 5-50 Camera + IVS1800 connecting to the LAN switch
5.3.12.3 Commissioning Cameras (LAN Switch Networking Scenario)
5.3.12.3.1 Commissioning a C3220 Camera
Prerequisites
If multiple cameras are connected, retain the connection of one camera and
disconnect other cameras. After commissioning the connected camera,
commission other cameras in the same way.
Procedure
Step 1 Log in to the camera WebUI.
1.
Congure the PC IP address and the camera IP address in the same network
segment. Enter the camera IP address (192.168.0.120 by default) in the
address bar of the Internet Explorer and press Enter.
The following lists the requirements for the operating system and browser of the
camera WebUI:
– Supports Windows 7: Internet Explorer 10/11, Chrome 38+, Firefox 35–51
– Supports Windows 8: Internet Explorer 10/11, Chrome 38+, Firefox 35–51
– Supports Windows 10: Internet Explorer 11, Chrome 38+, Firefox 35–51
– The Internet Explorer tab plugin needs to be installed for Google Chrome 45 and
later versions.
– Only 32-bit browsers are supported.
2. Set the password as prompted upon the rst login. Then use the new
password to log in.
FusionModule2000-S Smart Modular Data Center
User Manual 5 Power-On Commissioning
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 209
