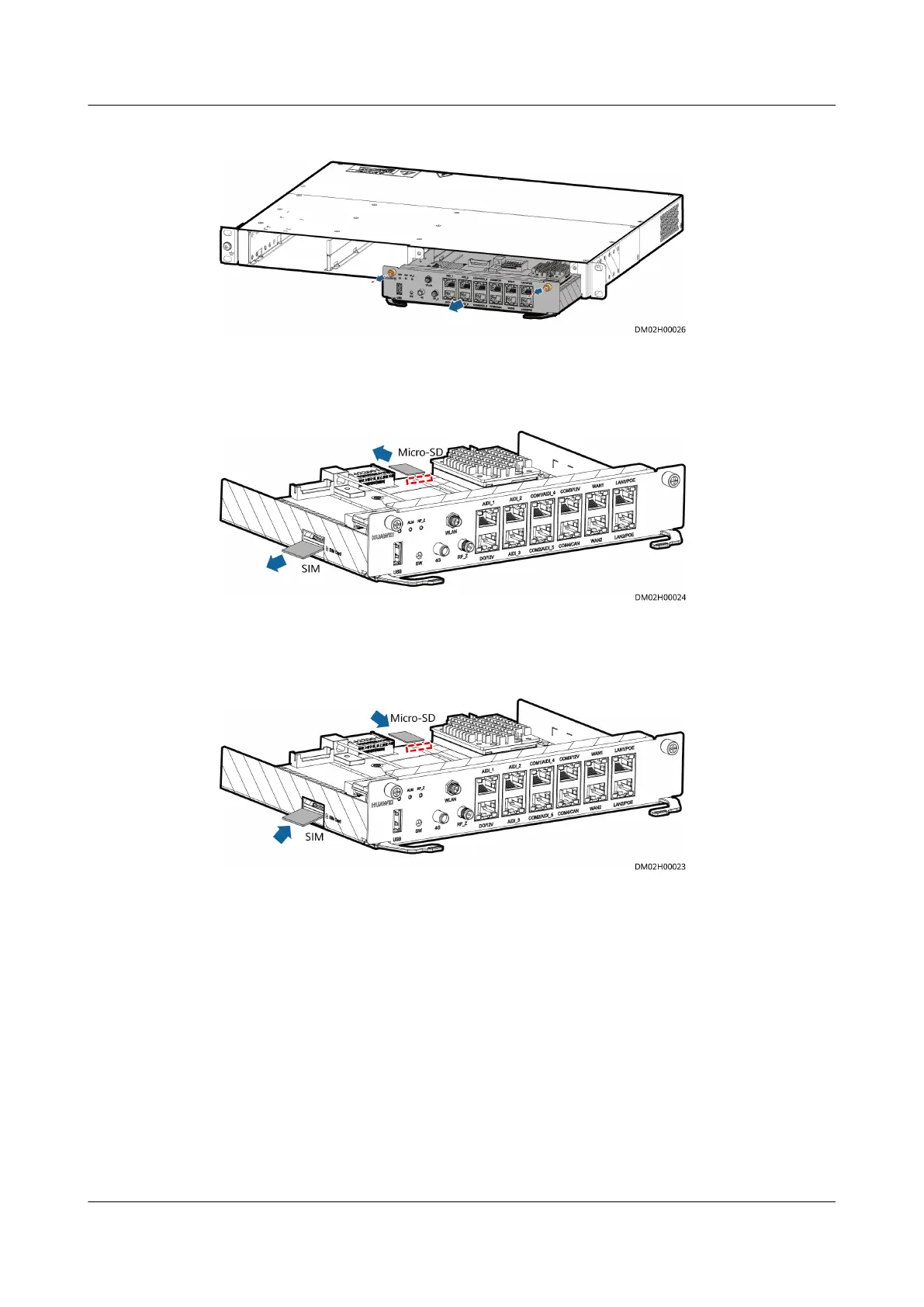

Figure 6-10 Removing an ECC800-Pro main control module
Step 4 Remove the SIM card and MicroSD card from the card slots.
Figure 6-11 Removing a SIM card and a MicroSD card
Step 5 Install the spare SIM card and MicroSD card into the card slots.
Figure 6-12 Installing a SIM card and a MicroSD card
Step 6 Install the ECC800-Pro main control module into the subrack.
Step 7 Tighten the screws on both sides of the ECC800-Pro main control module.
Step 8 Reconnect signal cables to the ECC800-Pro main control module panel based on
the recorded information.
----End
6.3.3 Replacing Parts for the Integrated UPS
For details about replacing parts for the integrated UPS, see the section "Parts
Replacement" in the UPS user manual.
FusionModule2000-S Smart Modular Data Center
User Manual 6 Operation and Maintenance
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 305
